Product Details
Place of Origin: China
Brand Name: KHJ
Certification: CE、ROHS、ISO9001
Model Number: E2-B82IB
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Product Name: |
E2-B82IB |
Backing Thickness (μm): |
25±3 |
Thermal Conductivity（w/mk）: |
0.2±0.05 |
Color Surface: |
Matt Black |
Color Inside: |
Glossy Black |
Upmost Temperature: |
260℃ |
Product Name: |
E2-B82IB |
Backing Thickness (μm): |
25±3 |
Thermal Conductivity（w/mk）: |
0.2±0.05 |
Color Surface: |
Matt Black |
Color Inside: |
Glossy Black |
Upmost Temperature: |
260℃ |

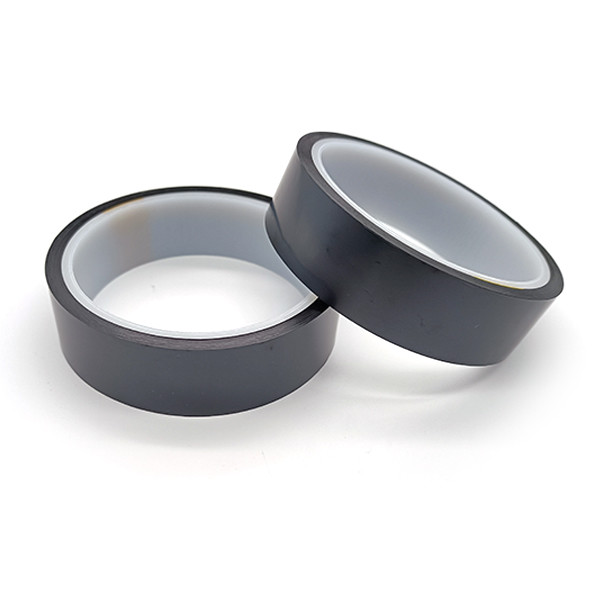

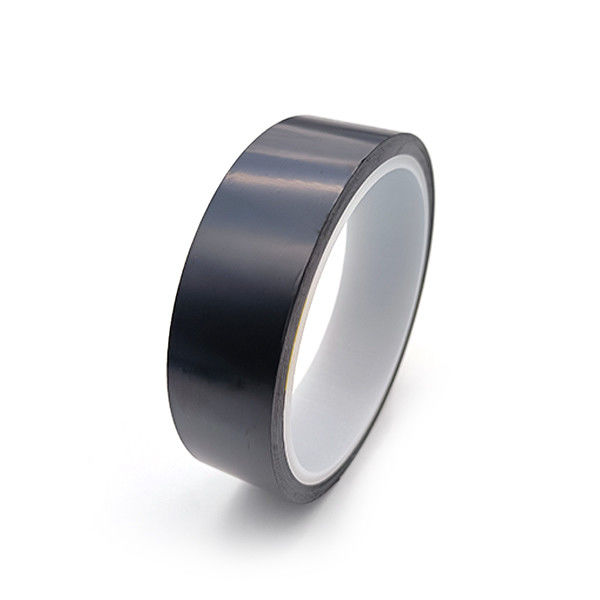

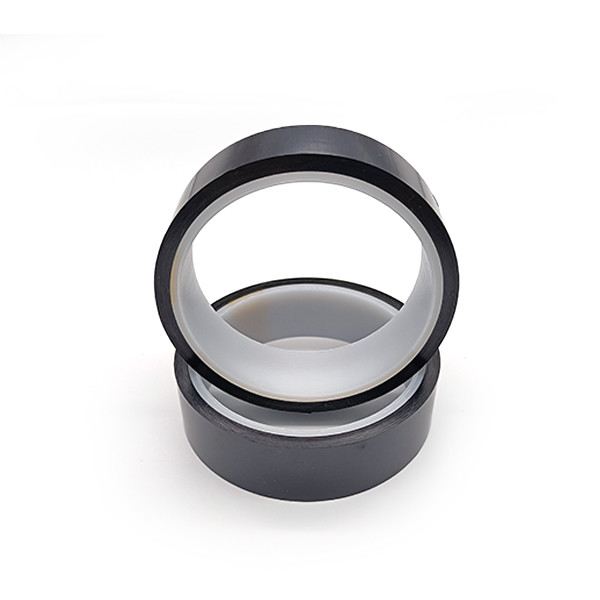

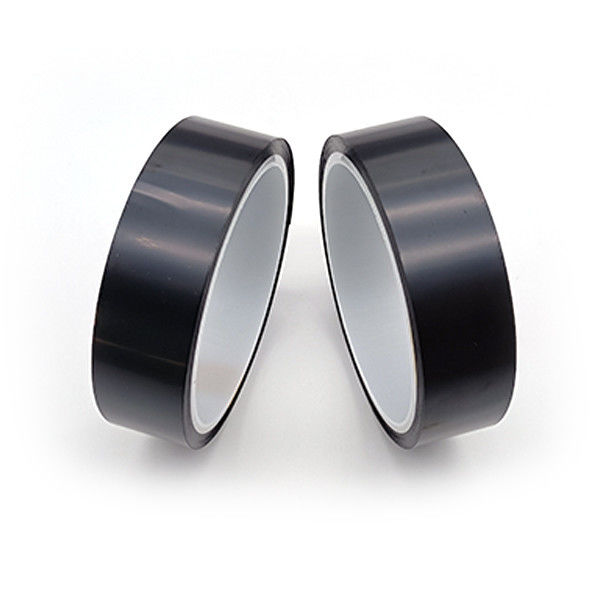

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application
E2-B82IB is a black polyimide film with good mechanical properties and high temperature resistance, and has good antistatic properties.
Features And Benefits:
1. Excellent Double sides anti-static performance.
2. Excellent thermal conductivity and protection of components.
3. RoHS Compliant.
Properties:
| Item Black Thermal Tape | Test Value | Test Method | |
| Color | Surface | Matt black | Visual inspection |
| Inside | Glossy black | Visual inspection | |
| Backing thickness (μm) | 25±3 | Micrometer | |
| Surface resistance(ohms) | Both face | 104-9 | Surface impedance meter |
| Thermal Conductivity(w/mk) | 0.2±0.05 | Thermal conductivity tester | |
| Transmittance(%) | 0 | ||
| Tensile Strength(MPa) | >80 | GBT 30776-2014 | |
| Elongation(%) | >20 | ||
| Upmost using Temperature(℃) | 260℃ | JG/T25-2017 | |
Construction:
Application:
Typical applications, widely used for buffer protection under various high and low temperature conditions, such as high temperature welding of flexible boards.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 6 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. The product should be far away from heat and fire sources;
2. Surface should be clean, dry, free of dust, oil or other contaminants.
3. The product should be kept in the original packaging and stored in a cool and dry environment, away from direct sunlight.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
