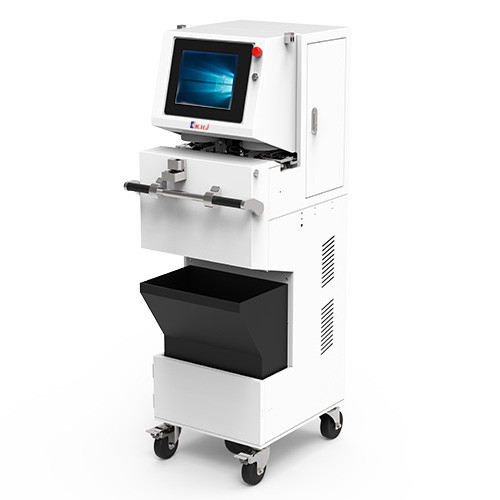

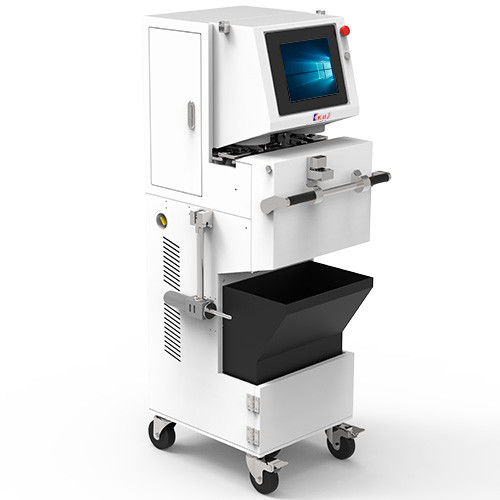

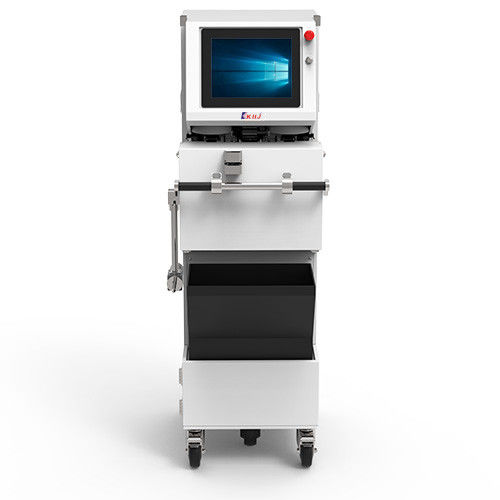

Large Image :  Earth series wide belt feeder

Product Details:
Brand Name: KHJ
Model Number: ASEA1

Earth series wide belt feeder

Description

Machine Function
Realize automatic detection, precision cutting, and splicing of different size of carrier tapes (width 8mm, 12mm, 16mm, 24mm, 32mm, 44mm).
Features
Applicable for most sizes of carrier tapes
Equipped with visual recognition system, automatic detection of empty pocket, pitch and cutting position
Automatic moving is available to reduce operators workload
Clips splicing device is available to get a more reliable jointing of larger size of carrier tapes.



Earth series  wide belt feeder 0





Apperance Diemension 600(L)x460(W)x1380(H)mm
Weight 75kg
Conveyor Height 1000mm±10mm
Width range 8mm-44mm
Carrier Tape Width 8mm,12mm,16mm,24mm,32mm,44mm
Thickness 0.2mm-1.3mm
Pocket height ≤10mm
Splicing length 160mm
Splice Clip length 22.5mm
Front clip Frame type,20PCS/frame
Back clip Rolly Tpe,Core ID 1.5 inches,1000PCS/Roll
Splice tape length 32mm
Core Diameter 1.5寸
Equipment Accurancy Carrier Tape Feeding accuracy ±0.10mm
Misalignment accuracy ±0.15mm
Rewinding
function
Control Mode Automatic reset button
Winding Device One set(left side)
Carrier tape Reel 7inches,13inches,15inches
Control System VCU PLC+PPC
Detection function of
empty componment
Visual inspection (inspection of empty componment 01005 and above )
Power Supply
System
Battery Lithium iron phosphate battery
Battery voltage 48V
Charging voltage 100V-220V
Charging time 8H
Full Charge Working Time 12-14H
Splicing Efficienty Splicing Time(c/t) 12-15sec
Winding Speed 300rpm
FPY EmptyComponment Spliced 0-2PCS
FPY ≥99.3%
Options
and
Accessories
Automatic Pre-cutting Standard
MES Available as Option
Barcode Gun Available as Option
Right Receving Arm Available as Option
