Kapton Tape
Created with Pixso.

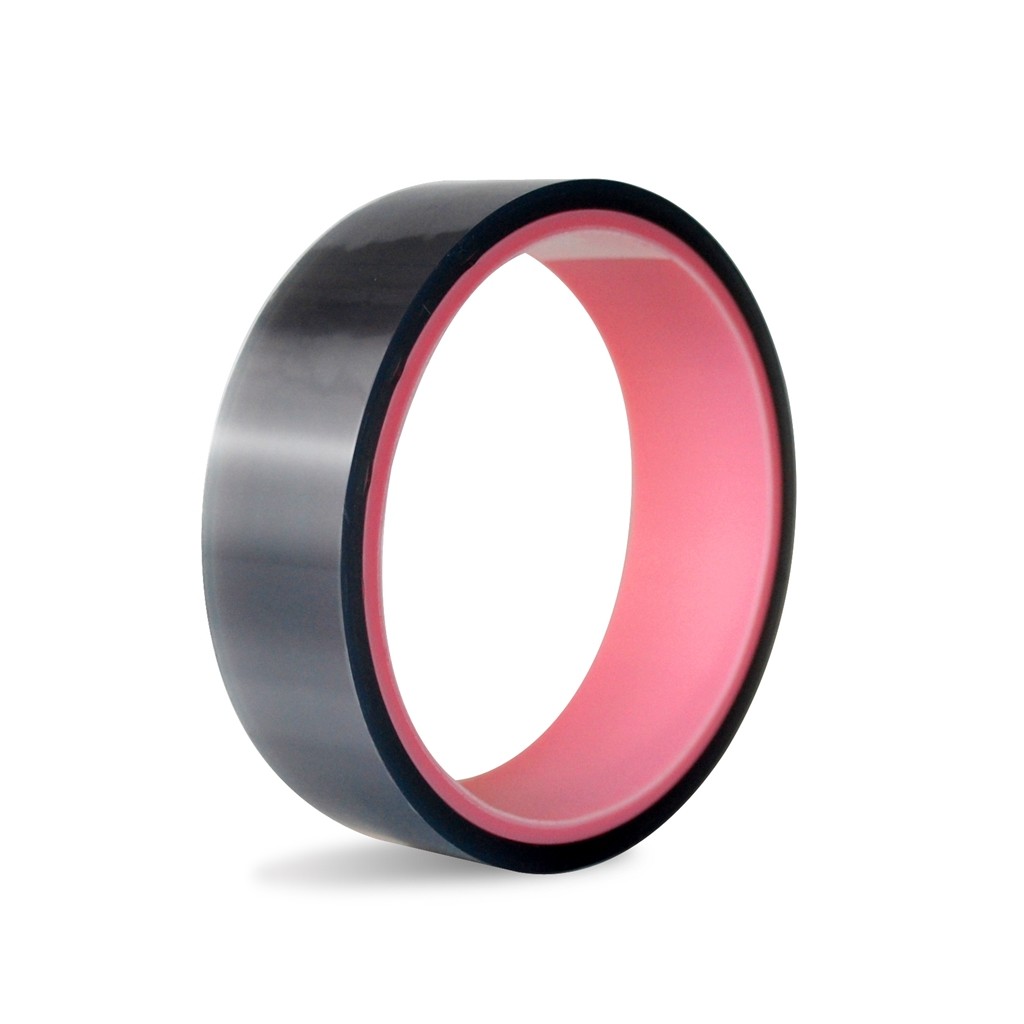

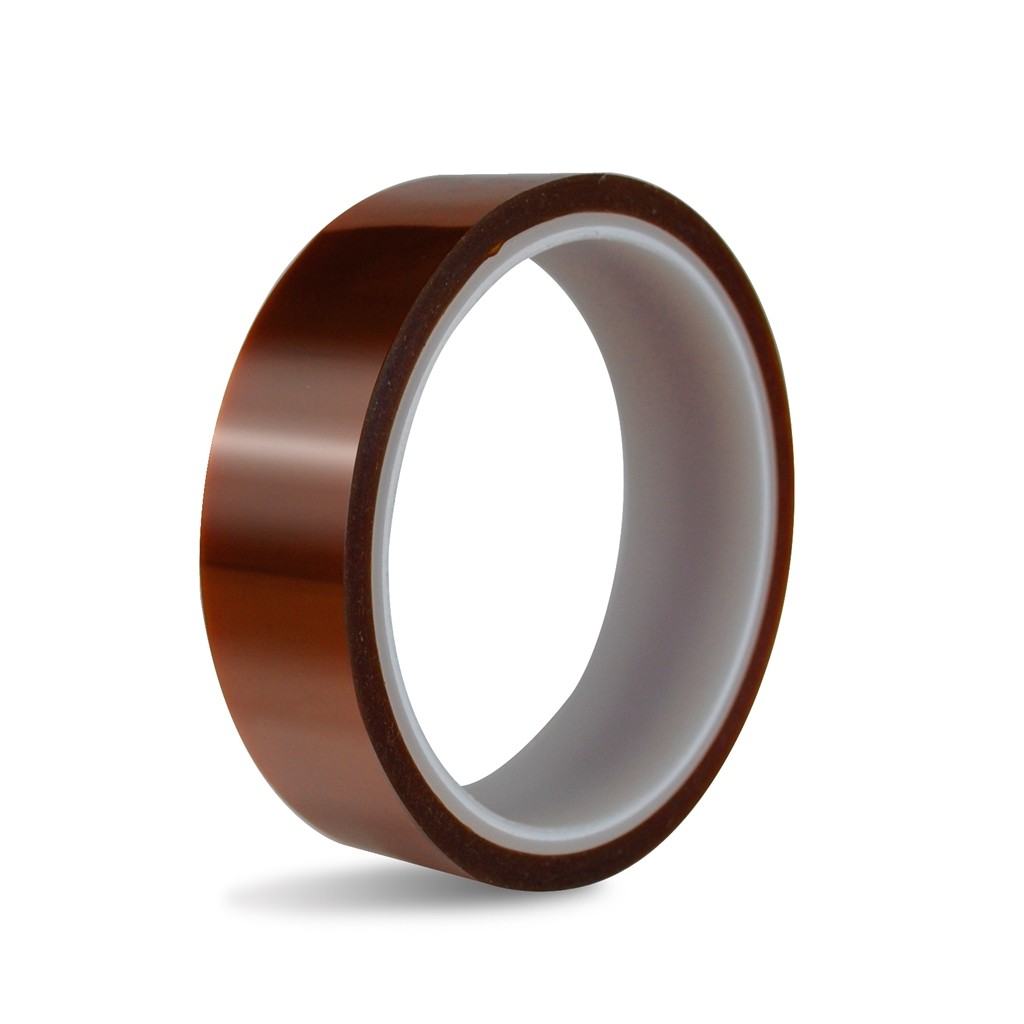

kapton tape.

kapton tape.

Brand Name: khj
Model Number: KD5676M
MOQ: 10
Price: 38USD/1pcs
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000
Detail Information
Place of Origin:
China
Certification:
TDS
Supply Ability:
100000
Product Description

KD5676M is an extremely kapton tape. coated on both sides with silicone adhesive that features excellent high temperature resistance properties.





kapton tape. 0

Features

Excellent Tensile Strength and Elongation are provided. Long periods of heat up to 260C can be sustained for short periods (300C for shorter times of heat exposure). Both sides feature different adhesion properties allowing removal without leaving behind residue or sticky surfaces behind.

kapton tape. 1

Application



Mask for printed circuit boards during wave solder or solder dip processes. Mask contacts during spray painting, powder coating & solder coating processes; bundle transformer, motors batteries & electronic components together as insulation measures; mask contacts during spray painting processes & more!





Item Typical Value Test Method
Imperial Metric
Backing 3.0mils 0.075mm /
Total Thickness 8.0±0.4mil 0.200±0.01mm /
Adhesion to Steel 1.8lbs/in A adhesive :8.0N/25mm GBT 2792-2014
0.18lbs/in B adhesive : 0.8N/25mm
Tensile Strength ≥45.7lbs/in ≥8 (KN/M) GBT 30776-2014
Elongation ≥50% ≥50% GBT 30776-2014
Breakdown voltage >8KV >8KV /

Operating

Temperature

500℉ 260℃ /



kapton tape. 2



Store under ideal storage conditions of 10-30 and 40-70% relative humidity; away from direct sunlight and without direct exposure. Shelf Life: One year when stored initially as intended from date of manufacture.


Surface should be clean, dry, free from dust or oil contamination and apply pressure using roller, hand or press when packing. Repetition could reduce adhesion strength.



Please be aware that this technical data sheet has been written based on laboratory testing and experience only; customers should make their own determination as to whether this product meets application needs before authorising its use in any particular instance.
