Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Product Name: |
E1-TH862G |
Color: |
Green |
Upmost Temperature: |
200℃ |
Adhesion To Steel: |
5~7 (N/25mm) |
Tensile Strength At Break: |
≥4 (KN/M) |
Elongation At Break: |
≥90% |
Product Name: |
E1-TH862G |
Color: |
Green |
Upmost Temperature: |
200℃ |
Adhesion To Steel: |
5~7 (N/25mm) |
Tensile Strength At Break: |
≥4 (KN/M) |
Elongation At Break: |
≥90% |
Super Antisatic Green Polyester Tape Anti Aging Strong Heat Resistant Tapes 0.06mm
Super antistatic green polyester tape E1-TH862G heat resistant adhesive tape with super antisatic performance
E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Properties:
| Product | Units | Test values |
| Backing Thickness: | mm | 0.025 |
| Total Tape Thickness: | mm | 0.060±0.005 |
| Tack | ≥26(J.DOW/#) | |
| Adhesion to Steel: | N/25mm | 5～7N |
| Tensile Strength at Break: | KN/M | ≥4 |
| Elongation at Break: | % | ≥90% |
| Upmost Temperature | ° C | 200 |
| Surface Resistance | ohms | 106~8ohms |
| Static Discharge(Removal from roll) | Voltage | <100V |

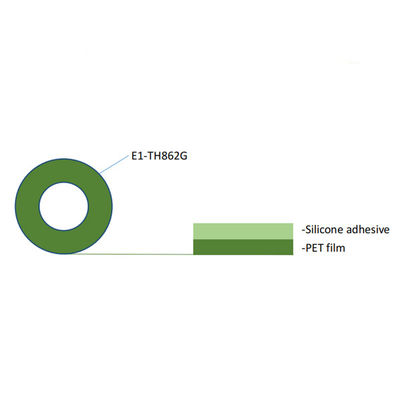

Construction:
Application:
Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Storage:
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Why choose us?
1. Gold supplier.
2. Provide samples and best service.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
