Product Details
Place of Origin: China
Brand Name: KHJ
Certification: CE、ROHS、ISO9001
Model Number: E2-AF123E
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E2-AF123E |
Tensile Strength At Break: |
≥4KN/M |
Static Discharge (Removal From Roll): |
<100 |
Elongation At Break: |
≥90% |
Backing Thickness: |
0.025mm |
Total Tape Thickness: |
0.045±0.005mm |
Product Name: |
E2-AF123E |
Tensile Strength At Break: |
≥4KN/M |
Static Discharge (Removal From Roll): |
<100 |
Elongation At Break: |
≥90% |
Backing Thickness: |
0.025mm |
Total Tape Thickness: |
0.045±0.005mm |

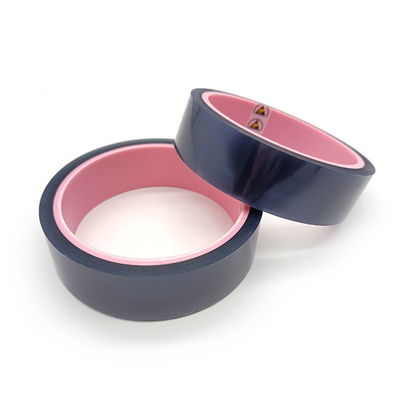

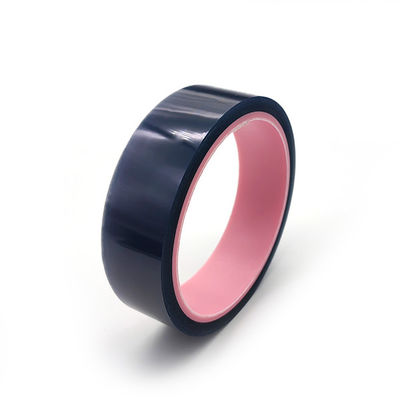

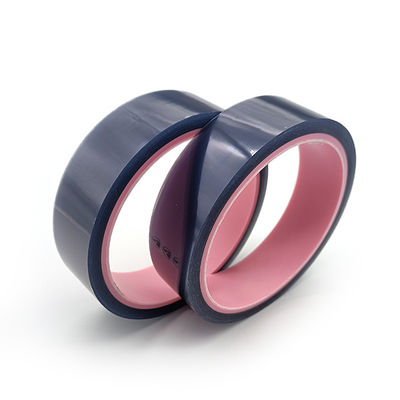

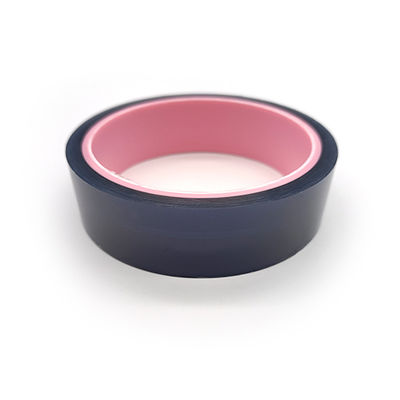

Bonding Protection ESD Adhesive Tape Acrylic Polyester Double Side
Bonding protection acrylic polyester tape E2-AF123E with good ESD performance
E2-AF123E is a transparent double-side ESD acrylic tape with good adherent (no residue after removal from surface of object), good ESD performance.
Features And Benefits:
1. Excellent tensile strength & Elongation.
2. RoHS standard.
3. Low adhesion, no adhesive residue.
Properties:
Test item | Units | Test values |
Backing Thickness: | mm | 0.025 |
Total Tape Thickness: | mm | 0.045±0.005 |
Adhesion to Steel | N/25mm | 0.5 ~ 2.5 |
Tensile Strength at Break: | KN/M | ≥4.0 |
Elongation at Break: | % | >90 |
Voltage when removing tape from roll | Volts | < 100 |
Surface resistance (Back side) | Ohms | 105-9 |
Surface resistance (Glue side) | Ohms | 109-11 |
Application:
For bonding, protection during electronic product production, or for temporary fixing.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Various designs.
2. Environmentally friendly products.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
