Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E1-TH862G |
Maximum Operating Temperature: |
200℃ |
Static Discharge (Removal From Roll): |
＜100V |
Elongation At Break: |
≥90% |
Tack: |
≥26(J.DOW/#) |
Adhesion To Steel: |
5~7 (N/25mm) |
Product Name: |
E1-TH862G |
Maximum Operating Temperature: |
200℃ |
Static Discharge (Removal From Roll): |
＜100V |
Elongation At Break: |
≥90% |
Tack: |
≥26(J.DOW/#) |
Adhesion To Steel: |
5~7 (N/25mm) |

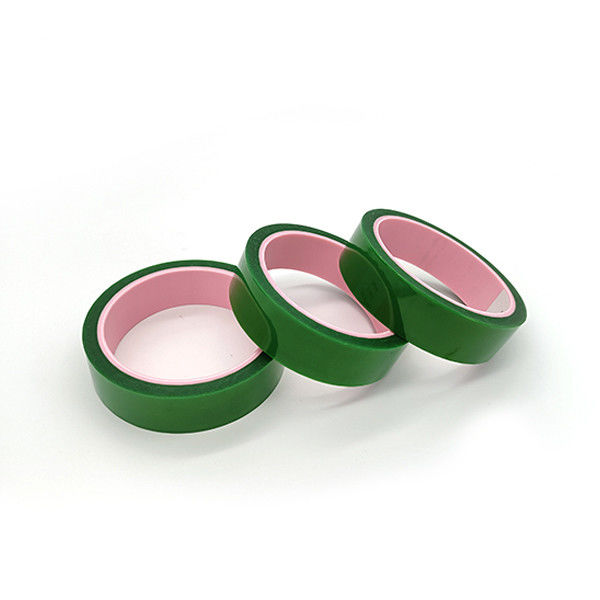

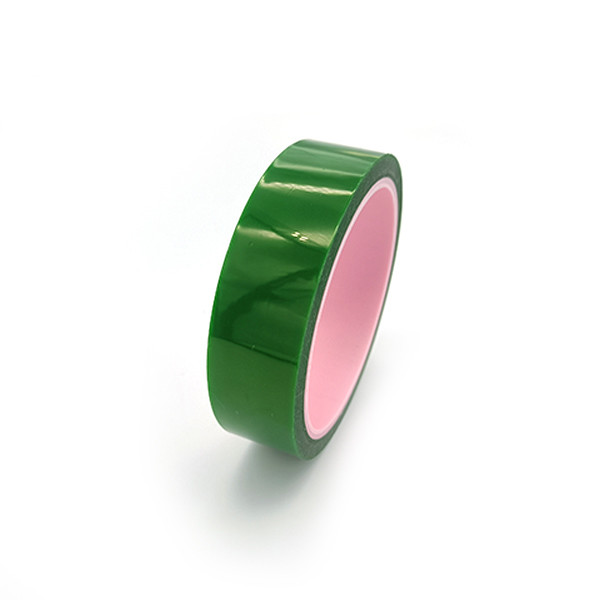

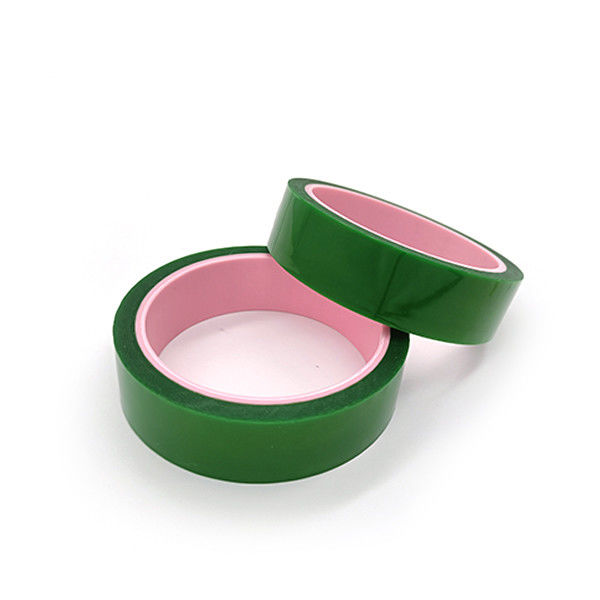

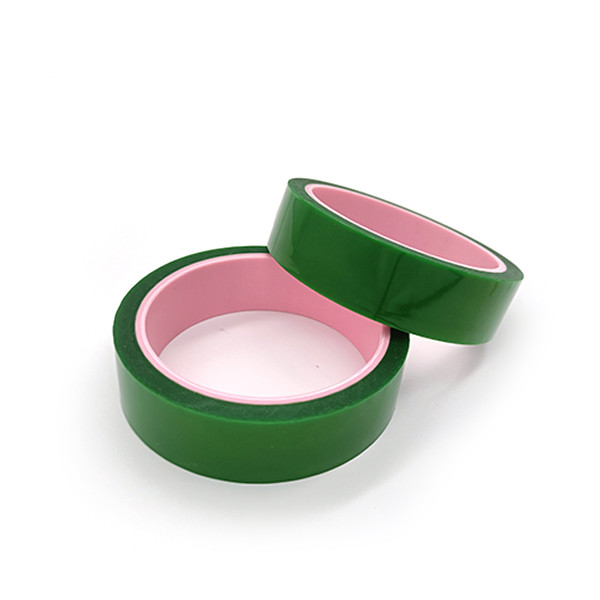

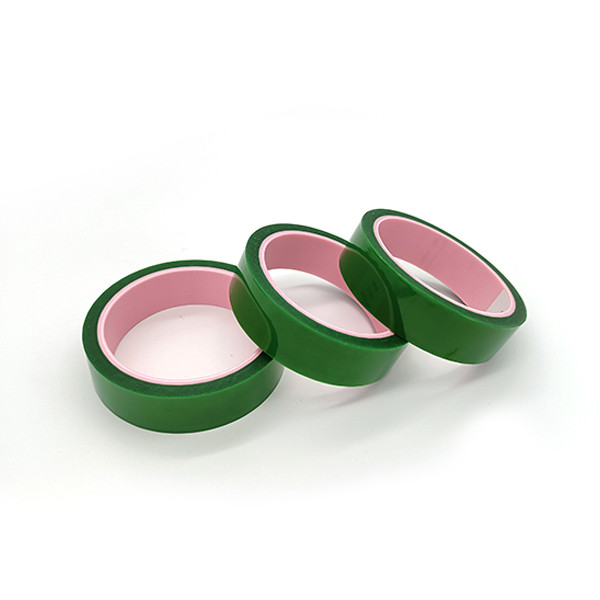

High Temperature Shielding Polyester Adhesive Tape 2.4mil Green Color
Polyester adhesive tape E1-TH862G with good high temperature shielding and anti-static properties
E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Properties:
| Item green polyester tape | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.4±0.2mil | 0.060±0.005mm |
| Tack | / | ≥26(J.DOW/#) |
| Adhesion to Steel | 1.1～1.6lbs/in | 5～7N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
| Surface Resistance | 106~8ohms | 106~8ohms |
| Static Discharge (Removal from roll) | <100V | <100V |
| Maximum Operating Temperature | 392℉ | 200℃ |

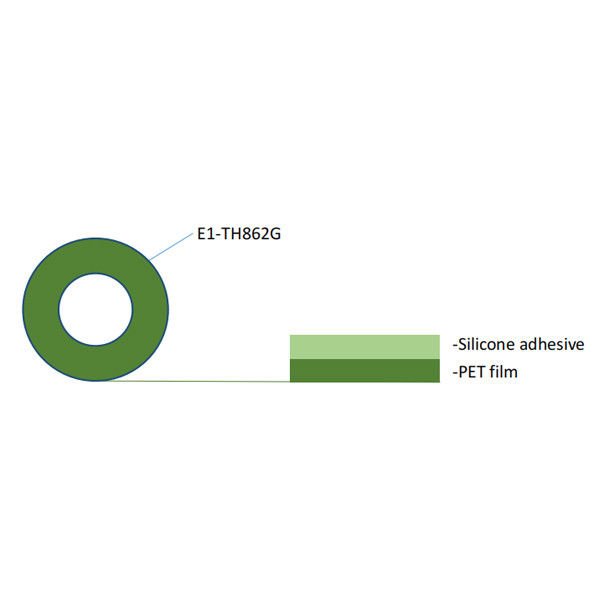

Construction:
Application:
Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Why buy from us instead of buying from other suppliers?
1. Good reputation and after-sales service team.
2. Good location and convenient transportation.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
