Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS25 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day
Product Name: |
SMS25 Series |
Material: |
PET |
Adhesive: |
Acrylic |
Size: |
8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm |
Color: |
Black，Green |
Peeling-off Force: |
(N/25mm) By Angle Of 180 Degree≥15 |
Product Name: |
SMS25 Series |
Material: |
PET |
Adhesive: |
Acrylic |
Size: |
8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm |
Color: |
Black，Green |
Peeling-off Force: |
(N/25mm) By Angle Of 180 Degree≥15 |
Multiple product types:
1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;
Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

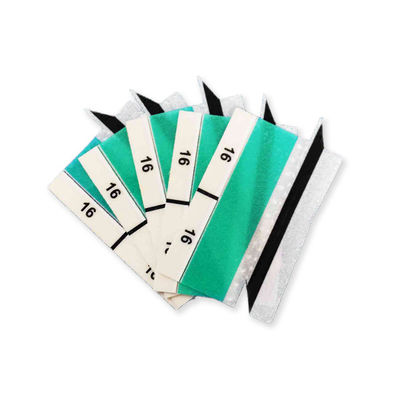

SMT special splice tape used in jointing carrier tapes in SMT process for Panasonic machine
25 series splice tape are used in jointing carrier tapes only in SMT process, This splice tape is made by our produced polyester (PET) material with superior adhesion.
Features And Benefits:
1. Using the tape in high strength,high adhesive and Anti-static , which protect better for component.
2. Guide alignment, longer than regular tapes.
3. Double side jointed with extra edge covered for more reliable jointing.
4. Operate easily, labor-saving.
5. High accuracy & reliability.
6. Applicable for Panasonic machine.
Application:
SMS‐25XXC series splice tape are used in jointing carrier tapes in SMT process.
Properties:

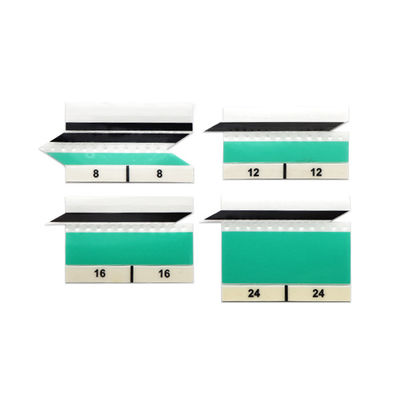

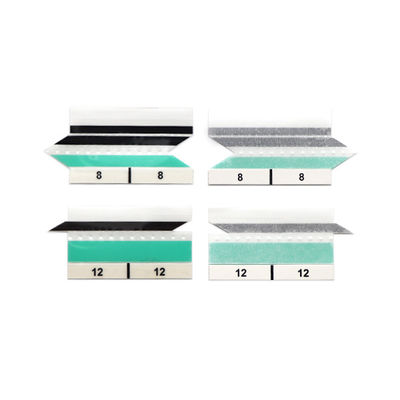

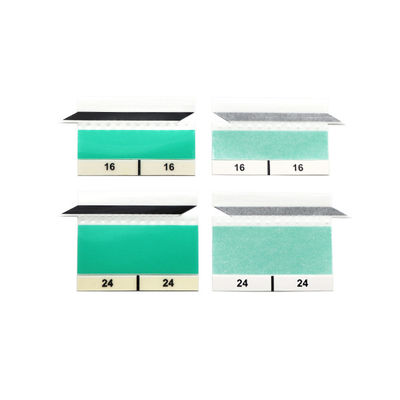

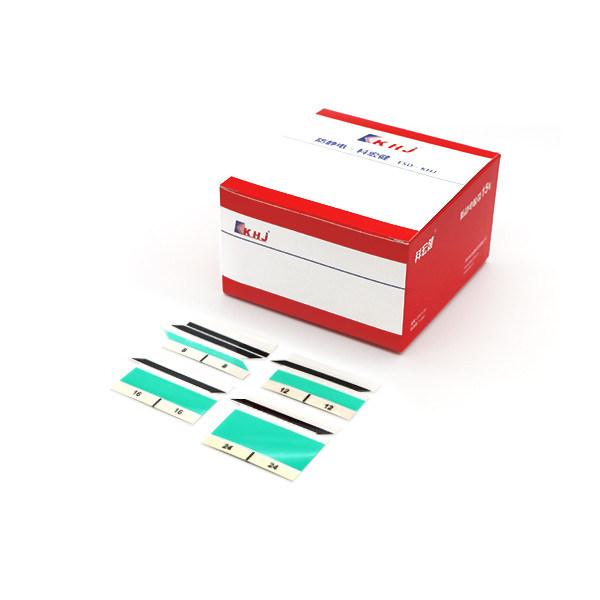

| P/N | Size | For Carrier Tape Size | Qty/Box |
| SMS2508C | (3/3.4/4.5)x48mm | 8mm | 500pcs/box |
| SMS2512C | (3.4/8)x48mm | 12mm | 500pcs/box |
| SMS2516C | (3.4/12)x48mm | 16mm | 500pcs/box |
| SMS2524C | (3.5/19.5)x48mm | 24mm | 250pcs/box |
Technical Data:
| No | Item | Technical Parameter |
| 1 |
Peeling-off force (N/25mm) by angle of 180 degree |
≥15 |
| 2 |
Retaining (H/25*25mm) time |
＞100 |
| 3 |
Tensile strength at break (N/25mm) |
＞4.0 |
Structure:
How to use:
Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.
This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.
Storage Condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
