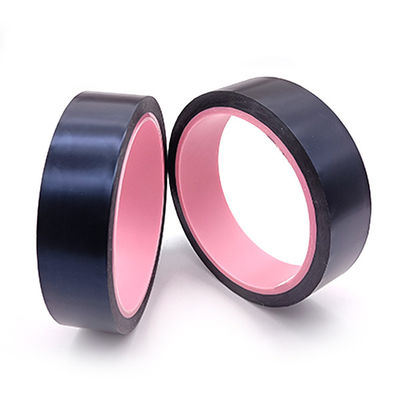

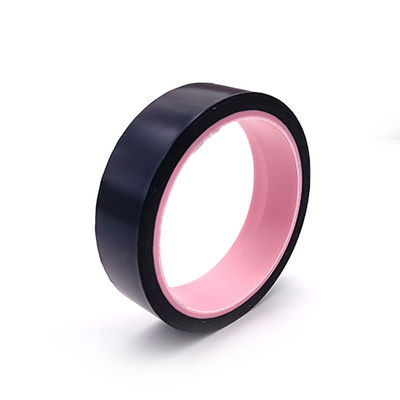

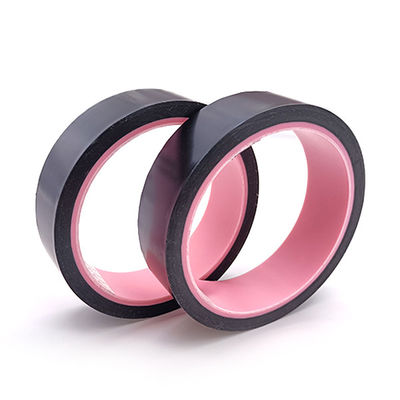

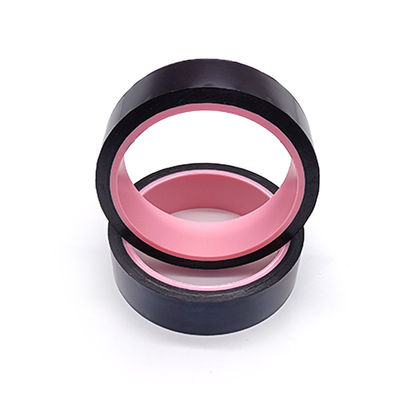

2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge

2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge
2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge 2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge 2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge 2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge

Large Image :  2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-IH826
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Supply Ability: 10000 square meters/day

2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge

Description
Product Name: E1-IH826 Backing Thickness: 0.025mm
Elongation: ≥10% Upmost Temperature: 280℃
Tensile Strength: ≥2(KN/M) Static Discharge (Removal From Roll): <100V
High Light:

2.5mil Black Heat Resistant Tape

,

2.5mil ESD Black Heat Resistant Tape

,

2.5mil high heat resistant tape

2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge



2.5mils black heat resistant ESD PI tape-E1-IH826 heat resistant adhesive tape with good heating resistance and low static



E1-IH826 is a black polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 280℃.

3. Excellent tensile strength & Elongation.

4. Die-cutting and formed any shape for general masking.

5. RoHS Compliant.



Properties:

Item  Black Heat Resistant Tape Typical Value Test Method
Backing 0.025mm /
Total Thickness 0.055±0.005mm /
Adhesion to Steel ≥4N/25mm GBT 2792-2014
Tensile Strength ≥2.0(KN/M) GBT 30776-2014
Elongation ≥10%
Surface Resistance 104-109ohms /
Static Discharge <100V /
Operating Temperature 280℃

5min

Testing to Stainless steel plate































Construction:

2.5mil ESD Black Heat Resistant Tape Low Electrostatic Discharge 0

Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
