8 Holes Universal SMT Splicing Tape Yellow Black

8 Holes Universal SMT Splicing Tape Yellow Black
8 Holes Universal SMT Splicing Tape Yellow Black 8 Holes Universal SMT Splicing Tape Yellow Black 8 Holes Universal SMT Splicing Tape Yellow Black 8 Holes Universal SMT Splicing Tape Yellow Black 8 Holes Universal SMT Splicing Tape Yellow Black

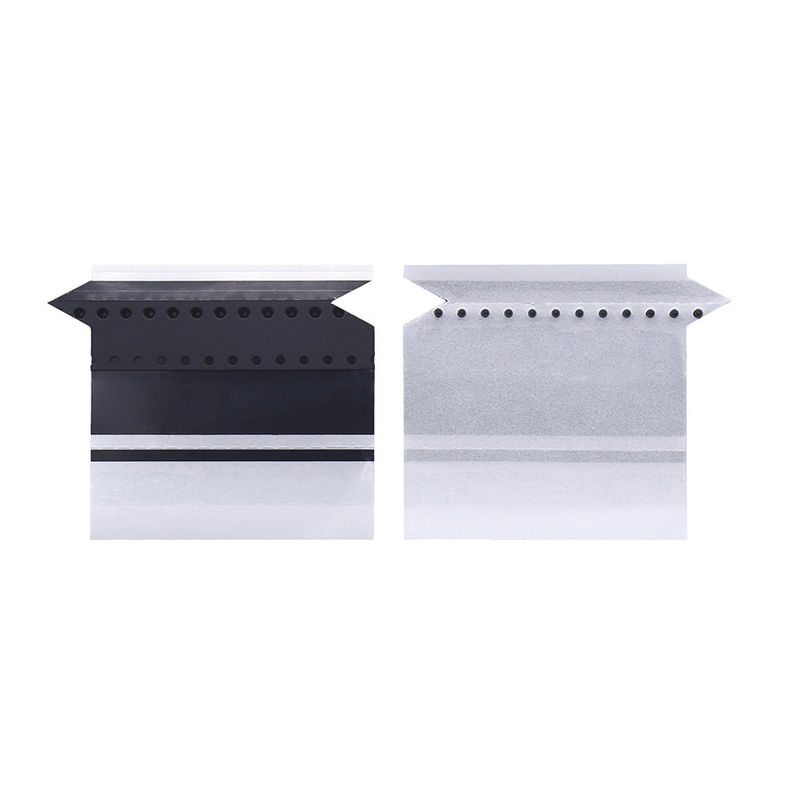

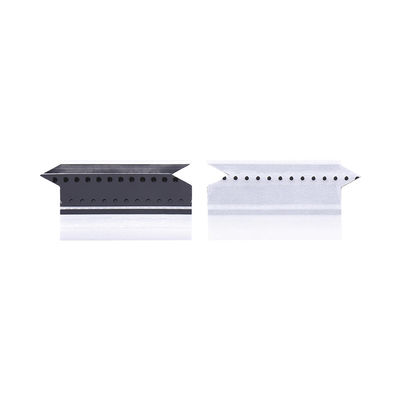

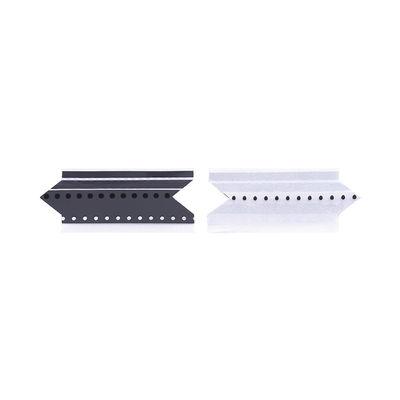

Large Image :  8 Holes Universal SMT Splicing Tape Yellow Black

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS15 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

8 Holes Universal SMT Splicing Tape Yellow Black

Description
Product Name: SMS15 Series Material: PET
Adhesive: Acrylic Size: 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color: Yellow, Black, Blue Certification: RoHS
High Light:

8 Holes SMT Splice Tape

,

Universal SMT Splicing Tape

,

8 Holes SMT Splicing Tape

8 Holes SMT Splice Tape15 Series Yellow Black Electrical Splicing Tape



Universal SMT splice tape with 8 holes designed applicable for all kinds of carrier tape jointing



This splice tape is used for jointing carrier tapes in the SMT process, It is made of 3 strips of yellow tape with guide holes designed for easy alignment.



Features And Benefits:

1. Available for 8mm,12mm,16mm,24mm, ,32mm,44mm,56mm,72mm carrier tapes.

2. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.

3. Available for Various SMT machines.



Application:

Applicable for all kinds of carrier tape jointing.Various machine applicable.



Properties:

P/N Size For Carrier Tape Size Qty/Box
SMS1508 (4.5/4.2/2.3)x34mm 08mm 500pcs/box
SMS1512 (8.5/8/2.5)x34mm 12mm 500pcs/box
SMS1516 (12.5/12/2.5)x34mm 16mm 500pcs/box
SMS1524C (20/19.5/2.5)x34mm 24mm 250pcs/box
SMS1532C (24/24/2.5)x34mm 32mm 250pcs/box
SMS1544 (32/32/2.5)x34mm 44mm 250pcs/box
SMS1556C (38/38/2.5)x34mm 56mm 250pcs/box
SMS1572C (55.5/55.5/2.5)x34 72mm 250pcs/box



Structure:

                             8 Holes SMT Splice Tape 15 Series Yellow Black SMT Splicing Tape 0

Technical Data:

No Item Technical Parameter
1

Peeling-off force (N/25mm) by angle of 180 degree

≥15
2

Retaining (H/25*25mm) time

>100
3

Tensile strength at break (N/25mm)

>4.0



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
