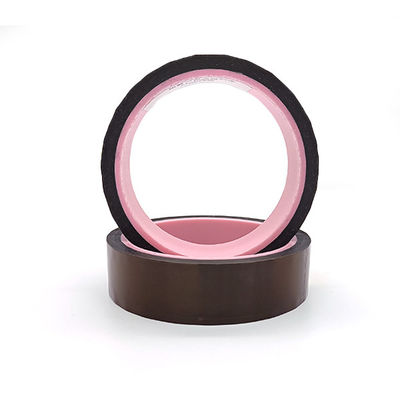

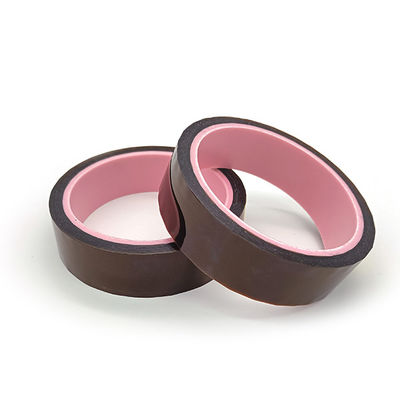

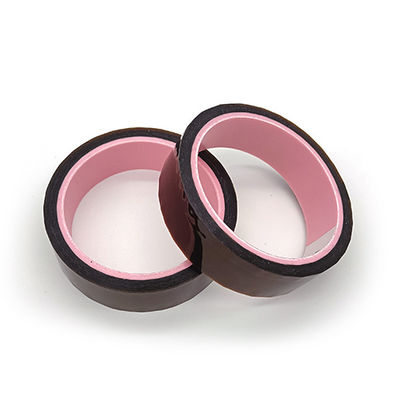

Anti Static Heat Resistant Adhesive Tape 0.05mm Low Electrostatic Discharge

Anti Static Heat Resistant Adhesive Tape 0.05mm Low Electrostatic Discharge

Brand Name: KHJ
Model Number: E1-IH803H
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
E1-IH803H
Backing Thickness:
0.025mm
Total Tape Thickness:
0.05±0.005mm
Tensile Strength At Break:
≥3.5(KN/M)
Elongation At Break:
≥45%
Static Discharge (Removal From Roll):
<100V
Packaging Details:
Plastic bag + carton
Supply Ability:
10000 square meters/day
Highlight:

0.05mm Heat Resistant Adhesive Tape

,

RoHS Heat Resistant Adhesive Tape

,

0.05mm heatproof tape

Product Description



Anti Static Heat Resistant Adhesive Tape 0.05mm Low Electrostatic Discharge



Excellent antistatic hight temperature resistant polyemide tape E1-IH803H heat resistant adhesive tape with good heating resistance



E1-IH803H is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

Anti Static Heat Resistant Adhesive Tape 0.05mm Low Electrostatic Discharge 0



Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.055±0.005
Tack   ≥26(J.DOW/#)
Adhesion to Steel: N/25mm 4N
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 290
Surface Resistance ohms 106~9ohms
Static Discharge(Removal from roll) Voltage <100V





Construction:

Anti Static Heat Resistant Adhesive Tape 0.05mm Low Electrostatic Discharge 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
