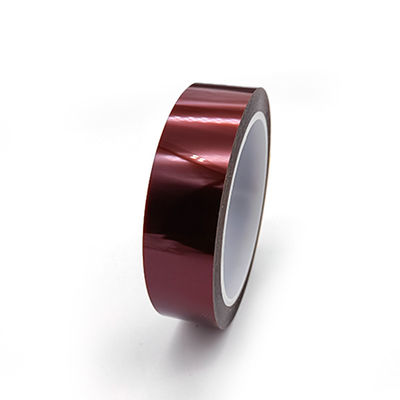

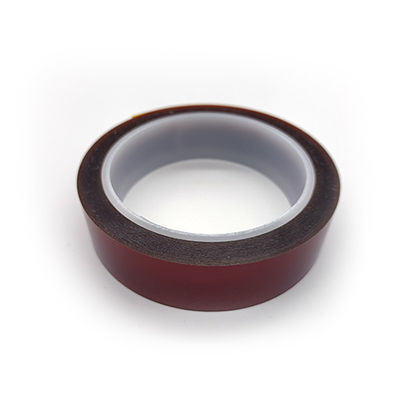

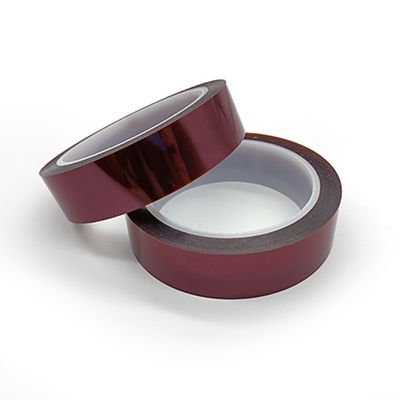

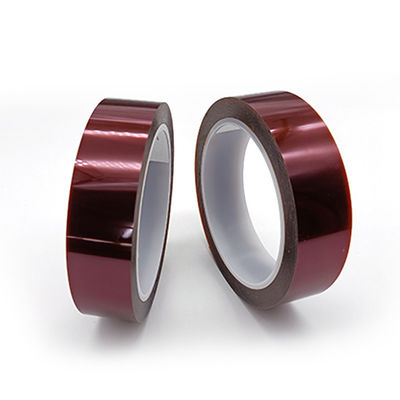

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide
Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide

Large Image :  Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: DIH775A-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Supply Ability: 50000 rolls per month

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide

Description
Product Name: DIH775A-B Total Thickness: 0.200±0.01mm
Adhesion To Steel: A Side Adhesive:8N/25mm, B Side Adhesive: 0.8N/25mm Tensile Strength At Break: ≥8KN/M
Dielectric Strength: ≥8000volts Upmost Temperature: 280℃
High Light:

8mil High Temperature Resistant Tape

,

Polyimide High Temperature Resistant Tape

,

8mil kapton polyimide tape

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide

Double-side coated silicone adhesive DIH775A-B polyimide tape with high temperature resistance


DIH775A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.



Features And Benefits:

1. Excellent tensile strength & Elongation

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃

3. Both-sides with different adhesion, no any residue after removal.



Kapton Polyimide Tape Properties:

Item   Typical Value
Imperial Metric
Backing 3.0mils 0.075mm
Total Thickness 8.0±0.4mil 0.200±0.01mm
Adhesion to Steel 1.8lbs/in A adhesive:8.0N/25mm
0.18lbs/in B adhesive: 0.8N/25mm
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Breakdown voltage >8KV >8KV

Operating

Temperature

536℉ 280℃


Construction:

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

Double Side High Temperature Resistant Tape 8mil Silicone Adhesive Polyimide 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
