ESD Anti Static Heat Resistant Adhesive Tape

ESD Anti Static Heat Resistant Adhesive Tape
ESD Anti Static Heat Resistant Adhesive Tape ESD Anti Static Heat Resistant Adhesive Tape ESD Anti Static Heat Resistant Adhesive Tape ESD Anti Static Heat Resistant Adhesive Tape

Large Image :  ESD Anti Static Heat Resistant Adhesive Tape

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-MH318G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day

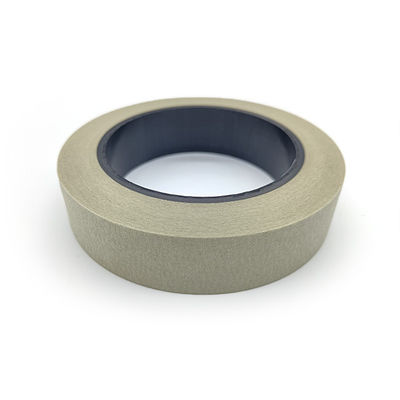

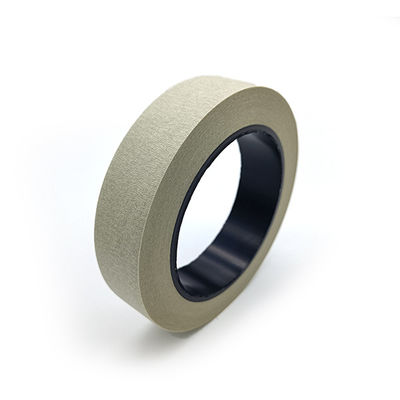

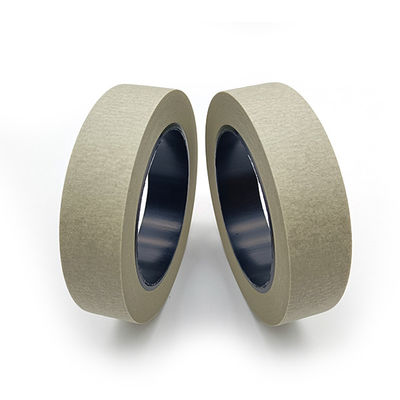

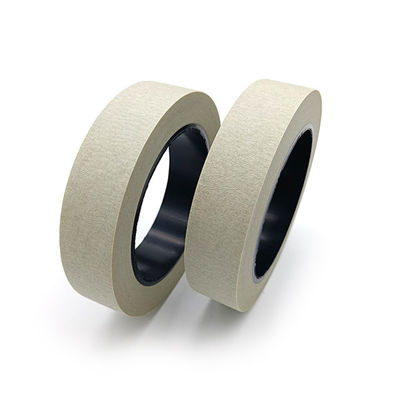

ESD Anti Static Heat Resistant Adhesive Tape

Description
Product Name: E1-MH318G Operating Temperature: 260℃
Elongation: ≥5% Total Thickness: 0.145±0.010mm
Colour: Off-white Tensile Strength Steel: ≥2KN/M
High Light:

0.145mm Heat Resistant Adhesive Tape

,

ESD Heat Resistant Adhesive Tape

,

ESD high temp resistant tape

Anti Static Heat Resistant Adhesive Tape



Anti-Static And High-Temperature Masking Tape E1-MH318G With Excellent High Temperature Resistance



E1-MH318G is an anti-static and high-temperature masking tape. The product not only has good adhesiveness, but also has no residue on the surface after removal, and provides high-temperature shielding protection for important areas.



Features And Benefits:

E1-MH318G with excellent high temperature resistance and high instantaneous bonding strength, easy to remove, no glue residue.



Properties:

Item Typical Value
Total Thickness 0.145±0.010mm
colour Off-white
Adhesion to Steel ≥2N/25mm
Tensile Strength ≥2KN/M
Elongation ≥5%
Surface Resistance 106-1011ohms
Operating Temperature 260℃































Construction:

ESD Anti Static Heat Resistant Adhesive Tape 0



Application:

Mainly used in the circuit board wave soldering process to protect the gold fingers on the circuit board and other sockets, surface protection, etc.



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
