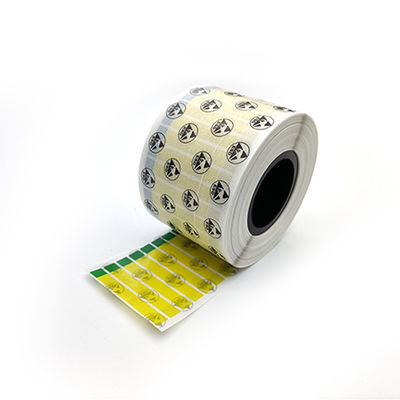

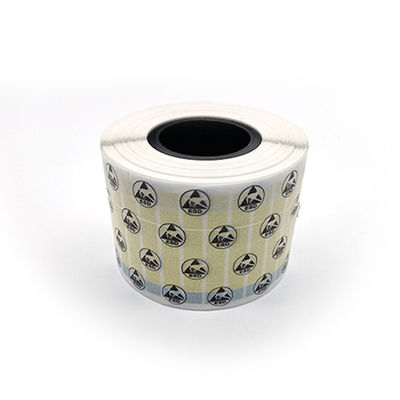

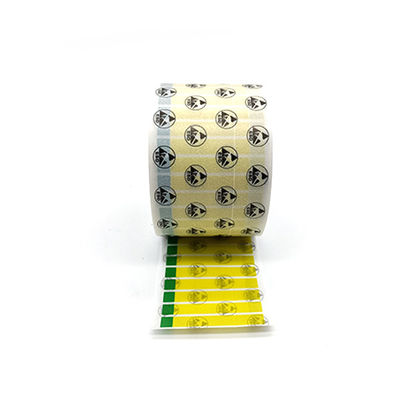

ESD PET SMT Splice Tape

ESD PET SMT Splice Tape

Brand Name: KHJ
Model Number: SMS4001C-T
MOQ: 1pcs
Price: Negotiable
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
SMS4001C-T
Material:
PET
Application:
Used For Fixing And Sealing The End Of SMT Carrier Tape Reels Or Other Materials Reels
Size:
50mmx7mm
Color:
Green And Yellow
Certification:
SGS
Packaging Details:
3000pcs/roll
Highlight:

PET SMT Splice Tape

,

ESD SMT Splice Tape

,

smt splicing tape

Product Description

ESD PET SMT Splice Tape



ESD End Sealer Label SMS4001C-T used for fixing and sealing the end of SMT carrier tape reels or other materials reels

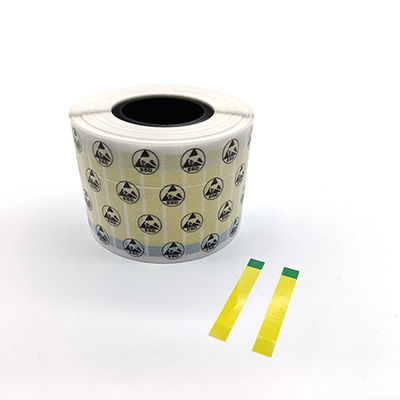

This Label is made of 3 parts(Yellow adhesive tape+ Yellow non-adhesive tape+Green non-adhesive tape),it is used for fixing and sealing the end of SMT carrier tape reels or other materials reels.



Features And Benefits:

1.ESD with no damage to electronics components;

2.Two end with no adhesive,easy to peel and pull;

3.The green non-adhesive area is a clear mark which can be identified effectively to peel off this label from reels at correct direction to avoid peel the cover tape off.



Application:

1.Used for sealing the new SMT carrier tape reel packaging;

2.Used for fixing the end of SMT carrier tape reel to avoid loosing when storing the used SMT carrier tape reels.



Properties:



Part No. Size Package Surface Resistance Static Voltage Core ID
SMS4001C - T 50×7mm 3000pcs/roll 105-10 Ω <100V 38mm



Structure:

ESD PET SMT Splice Tape 0



How to use:
1. Sticking : Hold the yellow non-adhesive area,stick half part of label on the end of carrier tape
and then fix on the whole reel.
2. Peeling : Peel off the label at the green transparent non-adhesive area from the reel.
