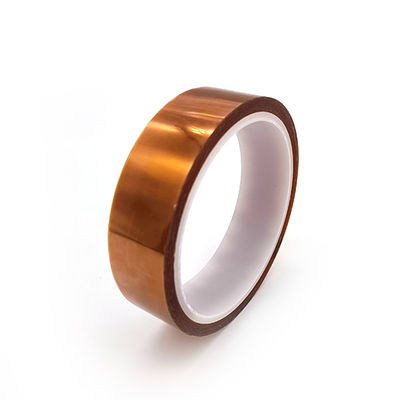

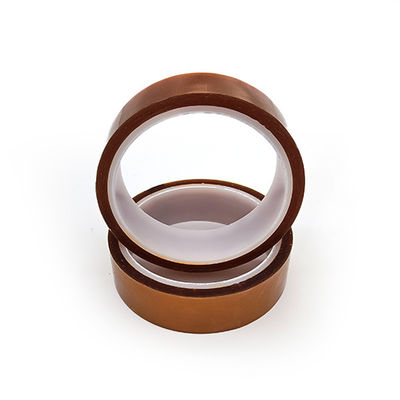

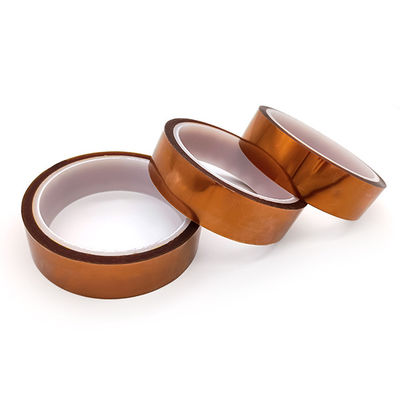

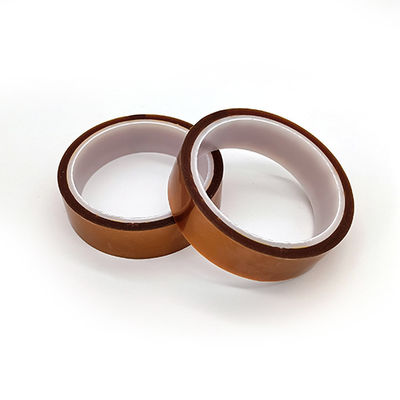

Polyimide Heat Resistant Double Sided Tape Silicone Adhesive

Polyimide Heat Resistant Double Sided Tape Silicone Adhesive

Brand Name: KHJ
Model Number: DIH772A-B
MOQ: 1pcs
Price: Negotiable
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Backing Thickness:
0.025mm
Total Thickness:
0.075±0.005mm
Adhesion To Steel 1.8lbs/in:
A Side Adhesive:2.7N/25mm
Adhesion To Steel 0.18lbs/in:
B Side Adhesive: 2.1N/25mm
Tensile Strength:
≥3.5KN/M
Elongation:
>45%
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

Polyimide Heat Resistant Double Sided Tape

,

0.075mm Heat Resistant Double Sided Tape

,

Polyimide high temp double sided tape

Product Description



Polyimide Heat Resistant Double Sided Tape Silicone Adhesive

Double-coated polyimide tape DIH772A-B with AB sides coated silicone adhesive

DIH772A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.


Features And Benefits:

1. Excellent tensile strength & Elongation.

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃.

3. Both-Face with similar adhesion ,No any residue after removal.



Heat Resistant Adhesive Tape DIH772A-B Properties:

Item   Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 3.0±0.2mil 0.075±0.005mm
Adhesion to Steel 0.25lbs/in A adhesive:2.7N/25mm
0.20lbs/in B adhesive: 2.1N/25mm
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%
Breakdown voltage >8KV >8KV
Maximum Operating Temperature 536℉ 280℃



Construction:

Polyimide Heat Resistant Double Sided Tape Silicone Adhesive 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Accept small orders.

2. Timely delivery.

3. Very competitive price and high quality control.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
