SMT Splice Tape
Created with Pixso.

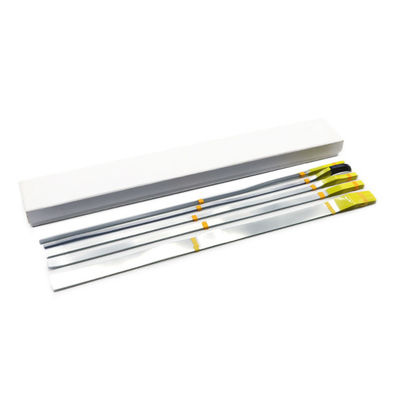

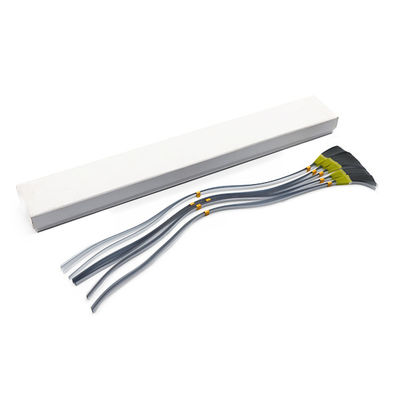

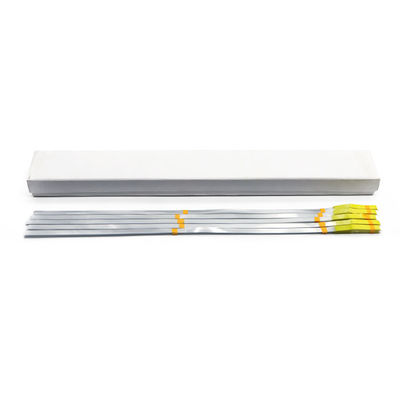

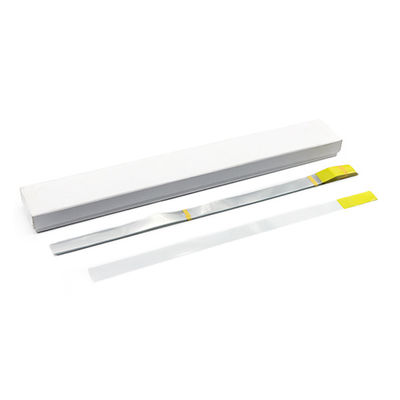

KHJ 11 series cover tape extender, Applicable to all size(8/12/16/24/32/44/56/72/88mm) carrier tapes

KHJ 11 series cover tape extender, Applicable to all size(8/12/16/24/32/44/56/72/88mm) carrier tapes

Brand Name: KHJ
Model Number: SMS11 series
MOQ: 1 Bag
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
SMS11 Series
Material:
PET
Adhesive:
Acrylic
Size:
4mm,8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue,Green
Peeling-off Force:
(N/25mm) By Angle Of 180 Degree≥15
Supply Ability:
10000㎡/day
Highlight:

12mm SMT Splice Tape

,

24mm SMT Splice Tape

,

8mm Smt Cover Tape Extender

Product Description

KHJ 11 series cover tape extender, Applicable to all size(8/12/16/24/32/44/56/72/88mm) carrier tapes 0

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.



KHJ 11 series cover tape extender, Applicable to all size(8/12/16/24/32/44/56/72/88mm) carrier tapes



11 series cover tape extender is used for jointing carrier tapes in the SMT process. It is made of tapes and polyester film and release paper, and the tape is with superior adhesion.



Features And Benefits:

1. Used as cover tape extender,make full use of surplus materials.

2. Strong adhesion, safe and reliable.

3. Easy to operate and with high efficiency.

4. Applicable to all SMT machines.



Application:

Used for SMT process,to solve SMT carrier tape connection problems.



Properties:

P/N Qty Carrier Tape Size Color ESD NO ESD





SMS1104/08/12/16/

24/32/44/56/72/88





500/250Pcs/Box





4mm/8mm/12mm/16mm/24mm/

32mm/44mm/56mm/72mm/88mm

C
B
G
M
L



Storage condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year



Keywords:SMT cover tape extender, SMT anti-static cover tape extender



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
