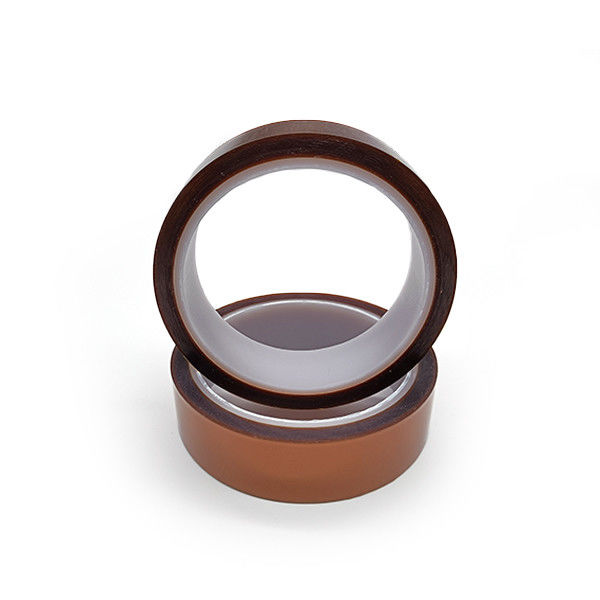

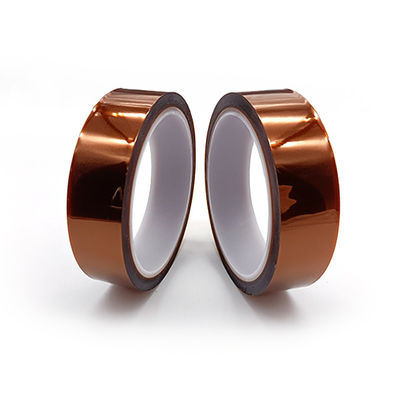

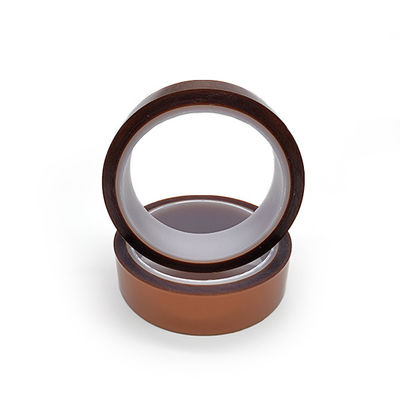

Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness
  • Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness
  • Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness
  • Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness
  • Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness

Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number IH852
Product Details
Product Name:
IH852
Dielectric Strength:
>4000V
Adhesion To Steel:
4-6N/25mm
Tensile Strength At Brea:
≥3.5KN/M
Elongation At Break:
≥45%
Upmost Temperature:
280℃
High Light:

2.2mil Polyimide Film Tape

,

High Temp Polyimide Film Tape

,

2.2mil heat proof adhesive tape

Product Description

khjkhj emailkhj workshop

Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness



Competitive polyimide film tape IH852 heat resistant adhesive tape with high adhesion



IH852 is a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.



Features And Benefits:

1. Electrical insulation and clean removal without residue.

2. Resistant high temperature up to 280℃ for 10 minutes.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Heat Proof Adhesive Tape Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

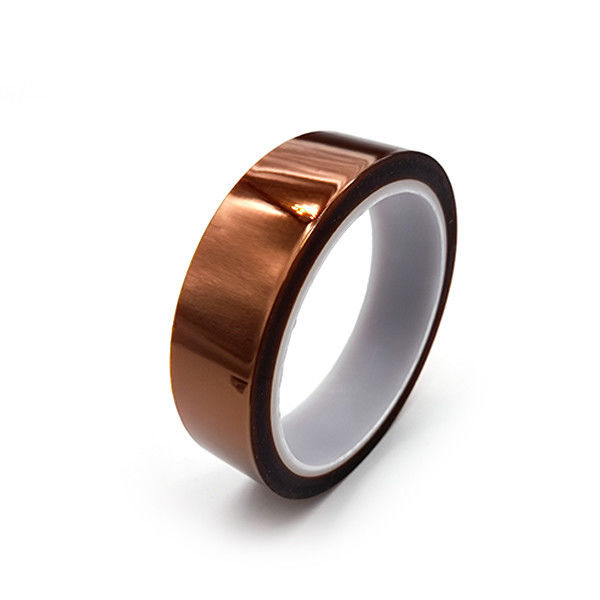

Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness 3



Properties:

Item Polyimide Film Tape Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.2mil 0.055±0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 0.91~1.37lbs/in 4~6N/25mm
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%
Dielectric Strength >4000V >4000V

Maximum

Operating

Temperature

536℉ 280℃



Construction:

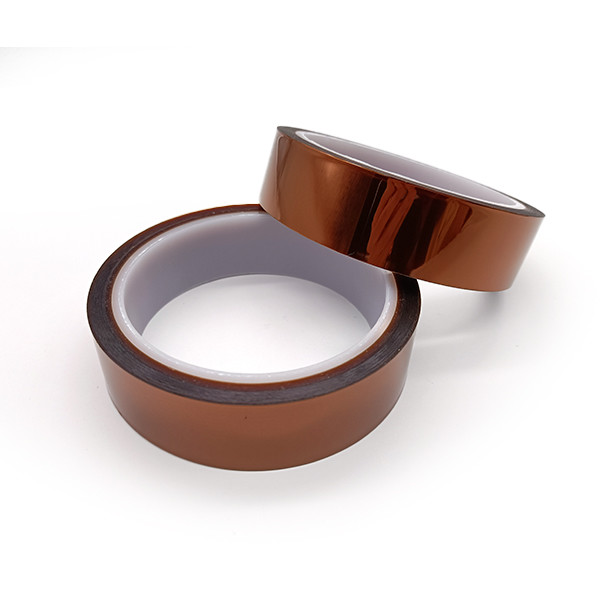

Competitive Polyimide Film Tape High Temp Resistant 2.2mil Thickness 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
