Polyimide Heat Resistant Adhesive Tape

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: E1-IH803L

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: 3~5days after payment done

Payment Terms: L/C, T/T

Supply Ability: 10000 square meters/day

Get Best Price
Product Details
High Light:

Polyimide Heat Resistant Adhesive Tape

,

0.045mm Heat Resistant Adhesive Tape

,

0.045mm heat proof adhesive tape

Product Name:
E1-IH803L
Surface Resistance:
105~9ohms
Total Tape Thickness:
0.045±0.005mm
Adhesion To Steel:
3N/25mm
Elongation At Break:
≥45%
Static Discharge (Removal From Roll):
<100V
Product Name:
E1-IH803L
Surface Resistance:
105~9ohms
Total Tape Thickness:
0.045±0.005mm
Adhesion To Steel:
3N/25mm
Elongation At Break:
≥45%
Static Discharge (Removal From Roll):
<100V
Product Description

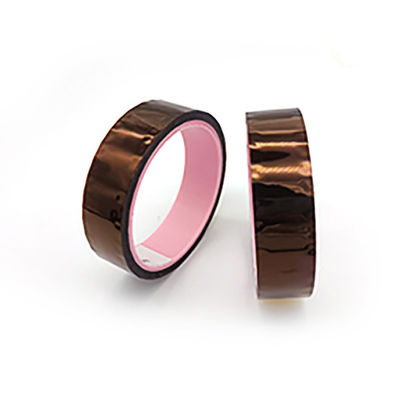

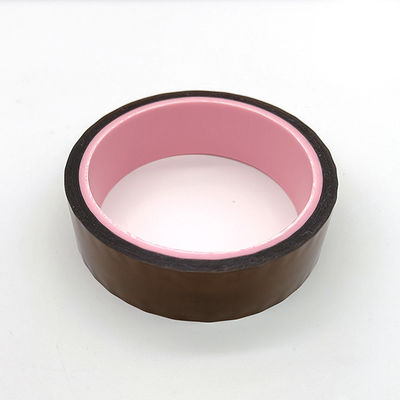

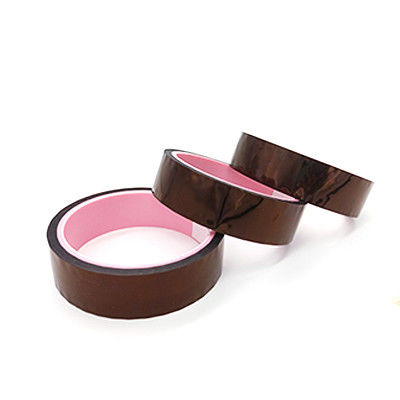

Polyimide Heat Resistant Adhesive Tape

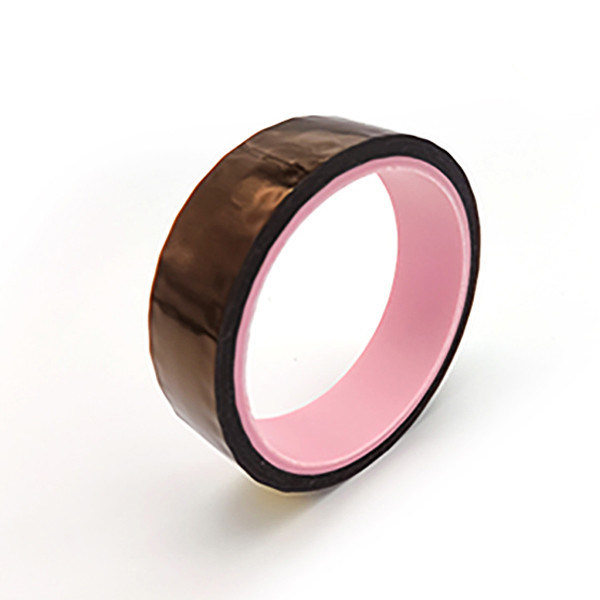

Low Adhesion High Temperature Resistant Polyemide Tape E1-IH803L With Good Heating Resistan



E1-IH803L is a black polyimide film-backed silicone adhesive polyimide tape which has extremely thickness with super heat resistance ,also low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

Polyimide Heat Resistant Adhesive Tape 0



Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.045±0.005
Adhesion to Steel: N/25mm 3N
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 290
Surface Resistance ohms 105~9ohms
Static Discharge(Removal from roll) Voltage <100V



Construction:

Polyimide Heat Resistant Adhesive Tape 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
