Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-IH823C
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Product Name: |
E2-IH823C |
Backing Thickness: |
0.025mm |
Total Tape Thickness: |
0.050±0.005mm |
Elongation At Break: |
≥10% |
Static Discharge: |
<100V |
Tensile Strength At Break: |
≥2（KN/M） |
Product Name: |
E2-IH823C |
Backing Thickness: |
0.025mm |
Total Tape Thickness: |
0.050±0.005mm |
Elongation At Break: |
≥10% |
Static Discharge: |
<100V |
Tensile Strength At Break: |
≥2（KN/M） |

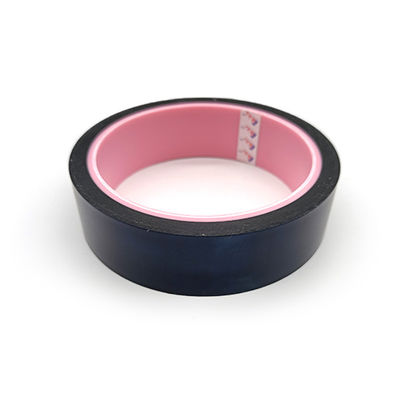

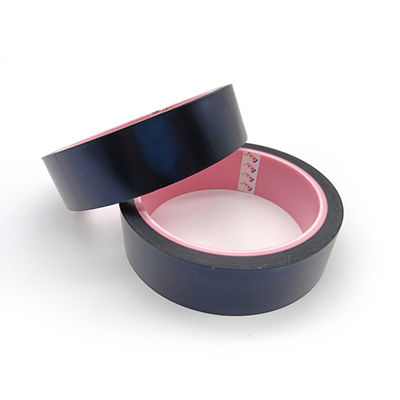

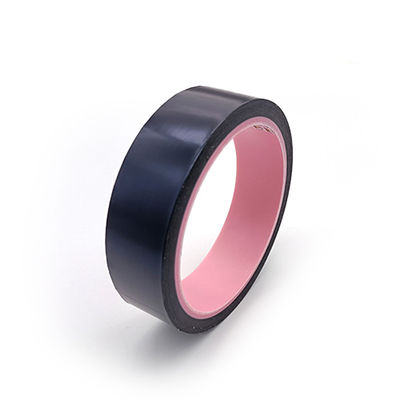

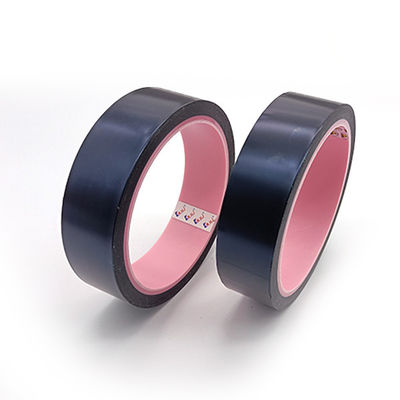

2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mils heat resistant ESD PI tape E2-IH823C heat resistant adhesive tape with good heating resistance and low static
E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Features And Benefits:
1. Low electrostatic discharge at unwind and removal.
2. Resistant high temperature up to 280℃.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant.
Properties:
| Item high temp resistant tape | Typical Value |
| Backing | 0.025mm |
| Total Thickness | 0.050±0.005mm |
| Adhesion to Steel | 4-6N/25mm |
| Tensile Strength | ≥2(KN/M) |
| Elongation | ≥10% |
| Surface Resistance | 106-9ohms |
| <1011ohms | |
| Static Discharge | <100V |
| Operating Temperature | 290℃ |
Construction:
Application:
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Good production capacity and fast delivery.
2. Good reputation and after-sales service team.
3. Environmentally friendly products.
4. Professional manufacturer for nearly 20 years.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
