SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material
SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material

Large Image :  SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS4001C-T
Payment & Shipping Terms:
Minimum Order Quantity: 1roll
Price: Negotiable
Packaging Details: 3000pcs/roll
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material

Description
Product Name: SMS4001C-T Material: PET
Package: 3000pcs/roll Size: 50mmx7mm
Static Voltage: <100V Core ID: 38mm
High Light:

ESD Sealing Label

,

PET ESD Sealing Label

,

PET SMT Carrier Tape

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material

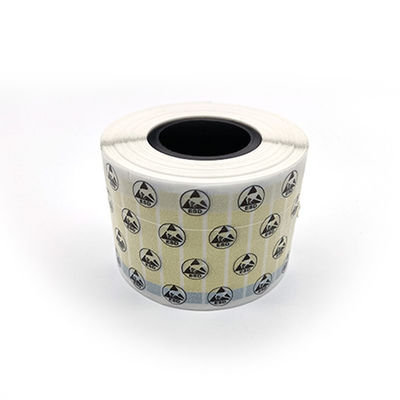

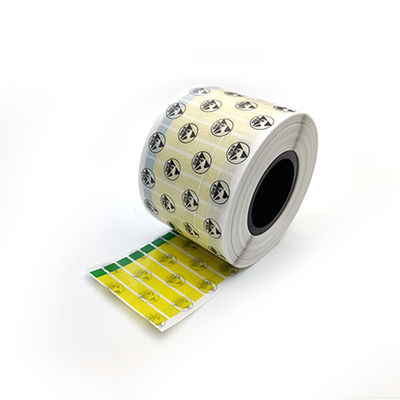

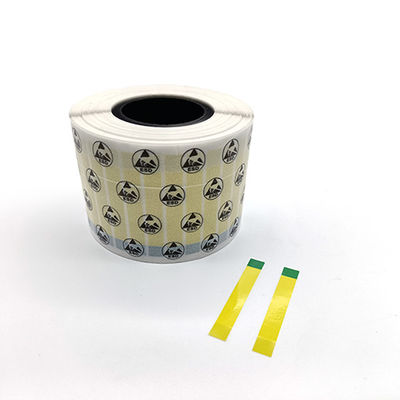

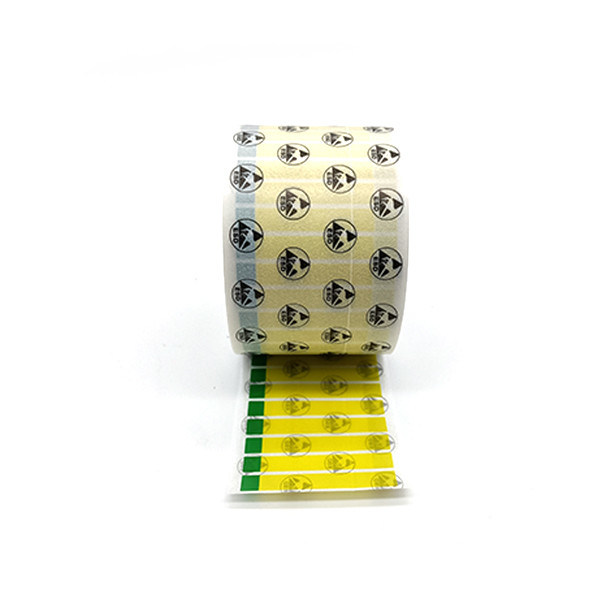

ESD end sealer label SMS4001C-T used for sealing the new SMT carrier tape reel packaging



This Label is made of 3 parts(Yellow adhesive tape+ Yellow non-adhesive tape+Green non-adhesive tape),it is used for fixing and sealing the end of SMT carrier tape reels or other materials reels.



Features And Benefits:

1. ESD with no damage to electronics components;

2. Two end with no adhesive,easy to peel and pull;

3.The green non-adhesive area is a clear mark which can be identified effectively to peel off this label from reels at correct direction to avoid peel the cover tape off.



Application:

1.Used for sealing the new SMT carrier tape reel packaging;

2.Used for fixing the end of SMT carrier tape reel to avoid loosing when storing the used SMT carrier tape reels.



Properties:



Part No. Size Package Surface Resistance Static Voltage Core ID
SMS4001C - T 50×7mm 3000pcs/roll 105-10 Ω <100V 38mm



Structure:

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material 0



How to use:
1. Sticking : Hold the yellow non-adhesive area,stick half part of label on the end of carrier tape
and then fix on the whole reel.
2. Peeling : Peel off the label at the green transparent non-adhesive area from the reel.

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material 1
