Silicone Double Side Coated Heat Resistant Adhesive Tape 8.2mil

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: E1-DIH776A-B

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Contact Now
Specifications
Highlight:

ODM Heat Resistant Adhesive Tape

,

8.2mil Heat Resistant Adhesive Tape

,

8.2mil heat resistant silicone tape

Product Name:
E1-DIH776A-B
Upmost Temperature:
260℃
Static Discharge (Removal From Roll):
<200V
Elongation:
≥50%
Total Thickness:
0.205±0.01mm
Backing Thickness:
0. 083±0.00m
Product Name:
E1-DIH776A-B
Upmost Temperature:
260℃
Static Discharge (Removal From Roll):
<200V
Elongation:
≥50%
Total Thickness:
0.205±0.01mm
Backing Thickness:
0. 083±0.00m
Description

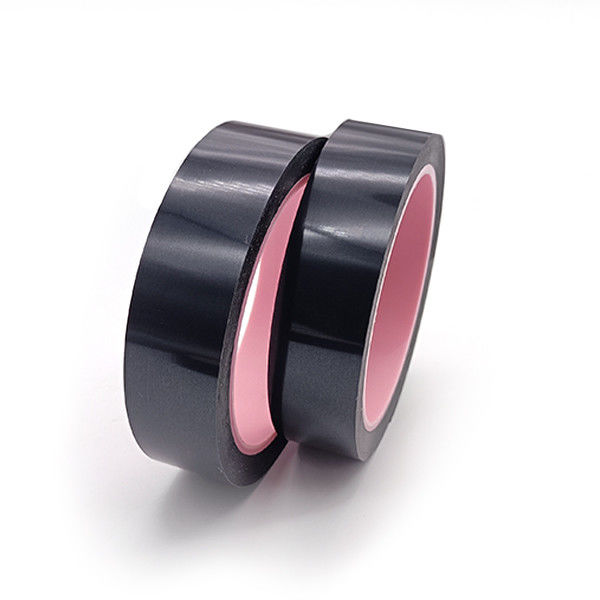

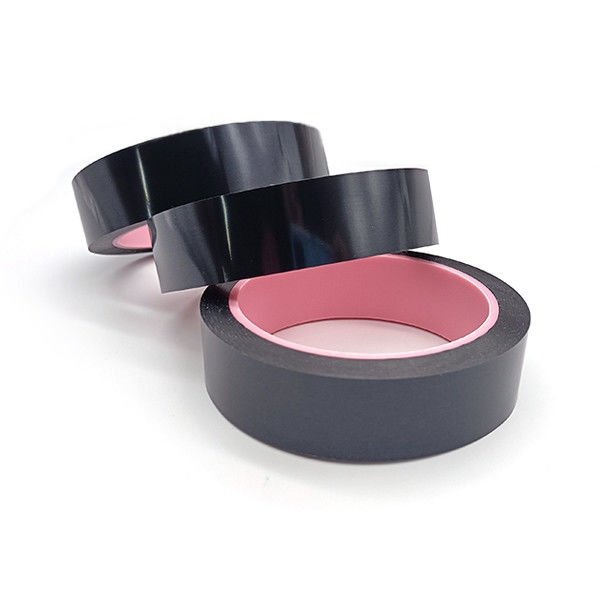

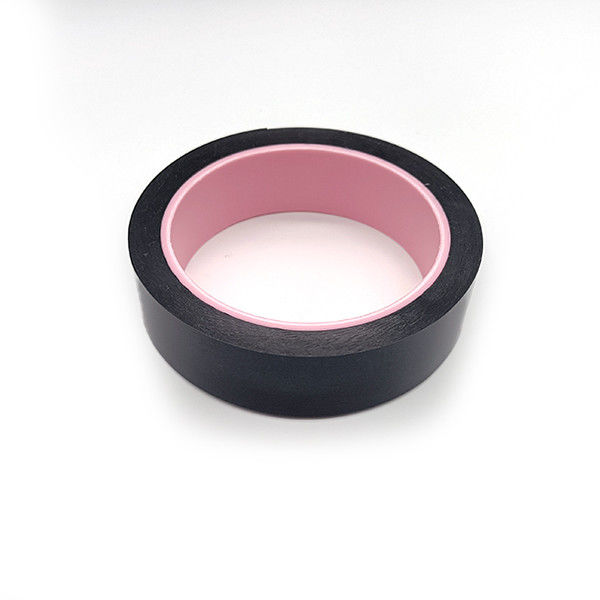

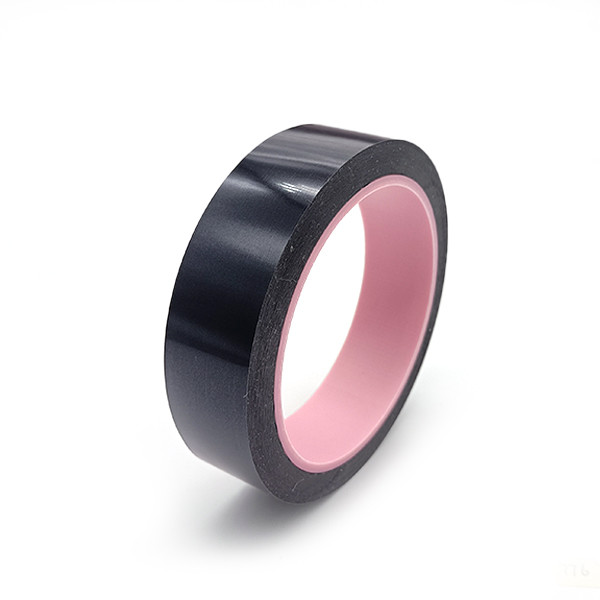

Silicone Double Side Coated Heat Resistant Adhesive Tape 8.2mil



Silicone Double Side Coated Heat Resistant Adhesive Tape 8.2mil

High temperature anti-static double-side coated adhesive E1-DIH776A-B tape with excellent tensile strength


E1-DIH776A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance and low static discharge.

Features And Benefits:

1. Low electrostatic discharge at unwind.

2. Excellent tensile strength & Elongation.

3. Resistant high temperature up to 260℃.

4. Both sides with different adhesion, no any residue after removal.



Properties:

Item heat resistant silicone tape Typical Value
Imperial Metric
Backing 3.32mil 0.083±0.00m
Total Thickness 8.2mil 0.205±0.01mm
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm
B adhesive <0.096lbs/in <1N/25mm
Surface Resistance / <1011ohms
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Static Discharge (Removal from roll) <200V <200V
Maximum Operating Temperature 500℉ 260℃



Construction:



Silicone Double Side Coated Heat Resistant Adhesive Tape 8.2mil 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
