| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KHJ |
| Certification: | RoHS |
| Model Number: | E1-TH862TD |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Poly Bag+ Carton |
| Delivery Time: | 1 Week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 M2/Day |
| Product Name: | E1-TH862TD | Backing Thickness: | 0.025mm |
|---|---|---|---|
| Total Tape Thickness: | 0.06±0.005mm | Adhesion To Steel: | 5～7N/25mm |
| Tensile Strength At Break: | ≥4（KN/M） | Elongation At Break:: | ≥90% |
| Highlight: | 0.06mm Bonding Tape,0.06mm Polyester Bonding Tape,0.06mm transparent polyester tape |
||

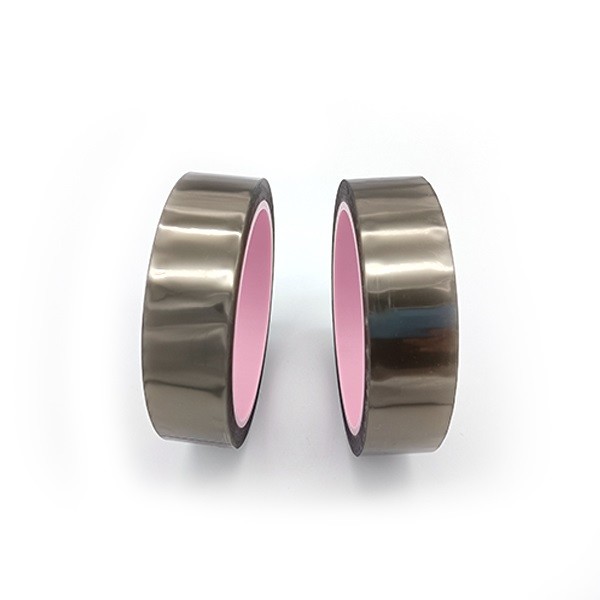

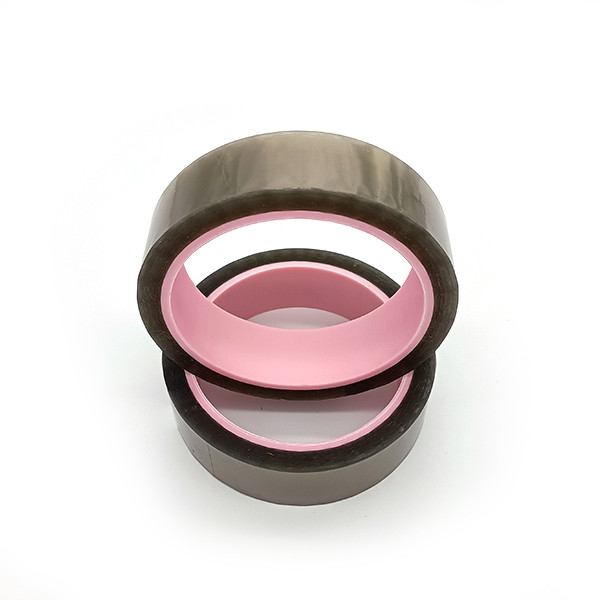

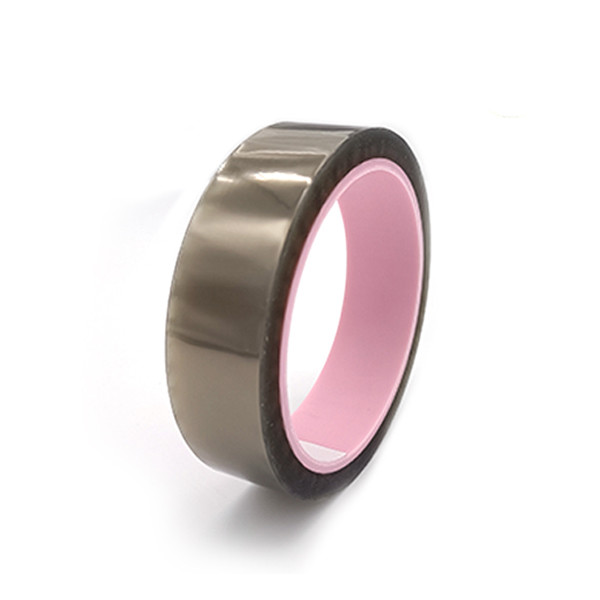

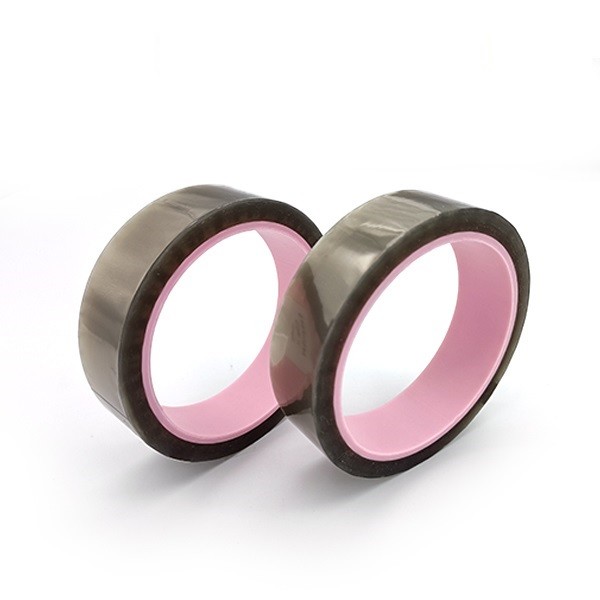

Transparent Polyester Bonding Tape 0.06mm Anti Aging Silicone Pressure
Transparent polyester tape E1-TH862TD with excellent anti-aging ability
E1-TH862TD is a tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and anti-static properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Application:
Masking for thermal sensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.3± 0.2mil | 0.06± 0.005mm |
| Tack | / | ≥26(J.DOW/#) |
| Adhesion to Steel | 1.1～1.6lbs/in | 5～7N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
|
Static Discharge (Removal from roll) |
<100V | <100V |
|
Maximum Operating Temperature |
392℉ | 200℃ |
Construction:
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
