Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862TD
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day
Product Name: |
E1-TH862TD |
Elongation At Break:: |
≥90% |
Maximum Operating Temperature: |
200℃ |
Static Discharge (Removal From Roll): |
＜100V |
Adhesion To Steel: |
5～7N/25mm |
Tensile Strength At Break: |
≥4（KN/M） |
Product Name: |
E1-TH862TD |
Elongation At Break:: |
≥90% |
Maximum Operating Temperature: |
200℃ |
Static Discharge (Removal From Roll): |
＜100V |
Adhesion To Steel: |
5～7N/25mm |
Tensile Strength At Break: |
≥4（KN/M） |

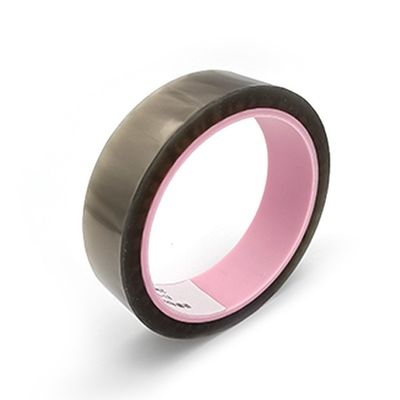

Anti Aging Thermal Bonding Tape 2.il High Temperature Anti Static
High temperature anti-static bonding tape E1-TH862TD with excellent anti-aging ability
E1-TH862TD is a tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and anti-static properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Application:
Masking for thermal sensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.3± 0.2mil | 0.06± 0.005mm |
| Tack | / | ≥26(J.DOW/#) |
| Adhesion to Steel | 1.1～1.6lbs/in | 5～7N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
|
Static Discharge (Removal from roll) |
<100V | <100V |
|
Maximum Operating Temperature |
392℉ | 200℃ |
Construction:
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
