Double Embossed Dots SMT Double Splice Tape 8 - 72mm

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Model Number: SMS01 series

Payment & Shipping Terms

Minimum Order Quantity: 1 Bag

Price: Negotiable

Delivery Time: 3-5 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000㎡/day

Get Best Price
Contact Now
Specifications
Highlight:

Double Embossed Dots Double Splice Tape

,

Double Splice Tape 8mm

,

Double Embossed Dots SMT Splice Tape

Certification:
RoHS
Product Name:
SMS01 Series
Material:
PET
Adhesive:
Acrylic
Size:
8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue, Green, Pink, Etc Are Available
Certification:
RoHS
Product Name:
SMS01 Series
Material:
PET
Adhesive:
Acrylic
Size:
8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue, Green, Pink, Etc Are Available
Description
Double Embossed Dots SMT Double Splice Tape 8 - 72mm

splice tape

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

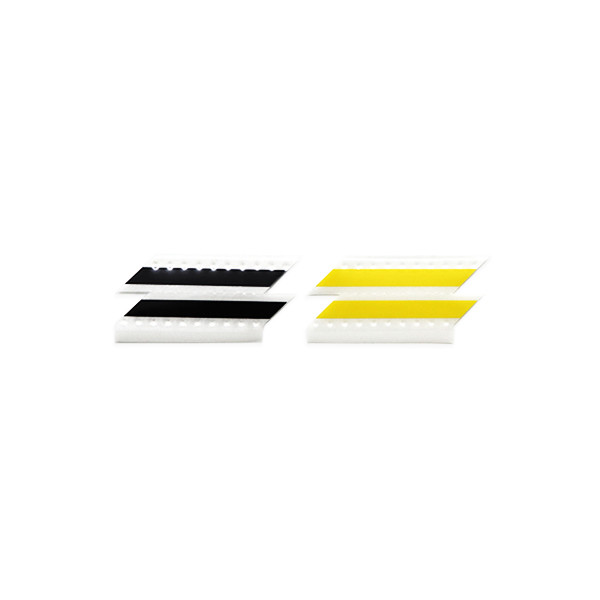

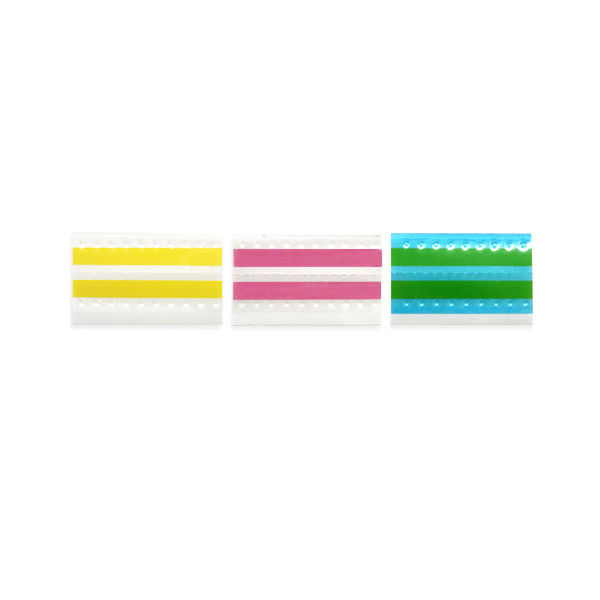

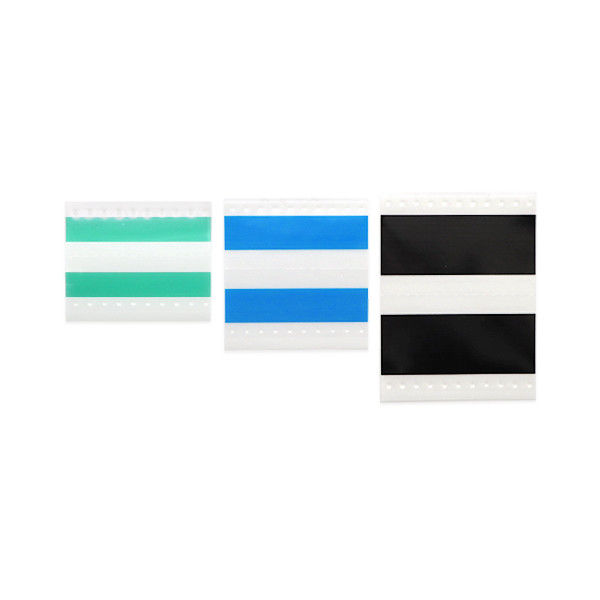

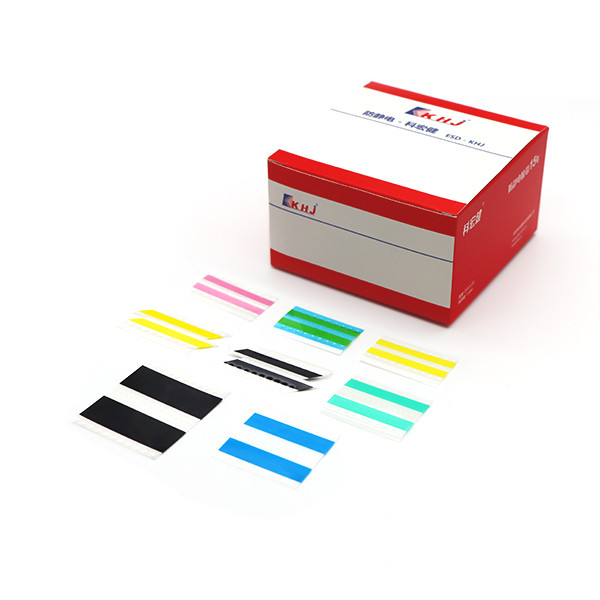

Double Embossed Dots SMT Double Splice Tape 8/12/16/24/32/44/56/72mm SMS01 Series



SMT double splice tape with double embossed dots designed for all 8mm,12mm,16mm,24mm carrier tape



Features And Benefits:

1. 01Series double splice tape is used for jointing carrier tapes in the SMT process, It is made of 2 tapes and release paper, and the tape is made by our produced patent material with superior adhesion.

2. Double embossed dots designed for easy alignment, one piece for one jointing, easy operation, no need to use auxiliary tools.

3. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.

4. Available for all SMT machines except sensitive machine.



Application:

Double splice tapes guarantee perfect and reliable joints in all kinds of carrier tape. Joining is accomplished without any tools or fixtures, with precise pitch spacing, using convenient, precut lengths of tape.



Properties:

P/N Description of Goods Quantity Application
SMS-0108 SMT Double Splice Tape 8mm 500pcs /box For 8mm carrier tape
SMS-0112 SMT Double Splice Tape 12mm 500pcs /box For 12mm carrier tape
SMS-0116 SMT Double Splice Tape 16mm 500pcs /box For 16mm carrier tape
SMS-0124 SMT Double Splice Tape 24mm 250pcs /box For 24mm carrier tape



Structure:

                                                                Double Embossed Dots SMT Double Splice Tape 8/12/16/24/32/44/56/72mm SMS 01 Series 0



Technical Data:

No Item Technical Parameter
1

Peeling-off force (N/25mm) by angle of 180 degree

≥15
2

Retaining (H/25*25mm) time

>100
3

Tensile strength at break (N/25mm)

>4.0



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
