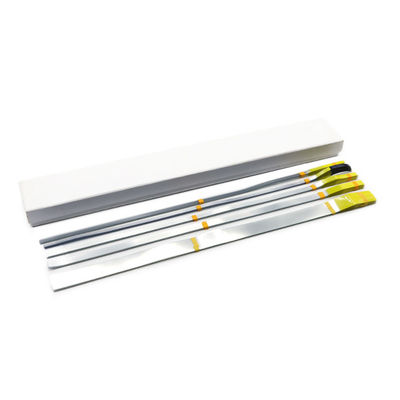

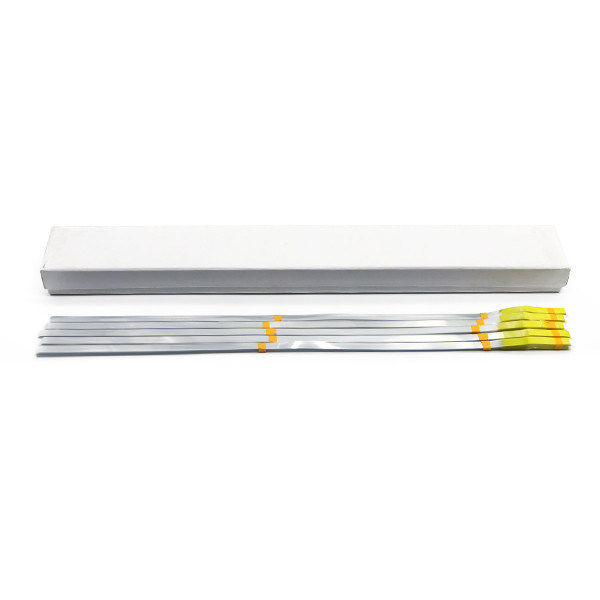

8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender

8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender
8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender 8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender 8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender 8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender

Large Image :  8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS11 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

8mm / 12mm / 16mm / 24mm SMT Cover Tape Extender

Description
Product Name: SMS11 Series Material: PET
Adhesive: Acrylic Size: 4mm,8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color: Yellow, Black, Blue,Green Certification: RoHS
High Light:

24mm SMT Cover Tape Extender

,

16mm SMT Cover Tape Extender

,

SMT Machine Cover Tape Extender

SMT cover tape extender yellow/black/blue/green 8mm/12mm/16mm/24mm for all SMT machines



This cover tape extender is used for jointing carrier tapes in the SMT process, It is made of black tapes and polyester film and release paper( no KHJ logo),and the tape is made by our produced patent material with superior adhesion.



Features And Benefits:

1. Excellent adhesive holding performance.

2. Worked as a extender for reduction of remaining components wastage.

3. Available for 8mm,12mm,16mm,24mm, 32mm,44mm,56mm,72mm carrier tapes.

4. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.

5. Available for all SMT machines.



Application:

Worked as a extender for reduction of remaining components wastage.



Properties:

Part No. Splice tape size carrier tape size Qty/bag
SMS1108NC 5x396mm 08mm 500pcs
SMS1112NC 7x396mm 12mm 500pcs
SMS1116NC 9x396mm 16mm 500pcs
SMS1124NC 18x396mm 24mm 250pcs
SMS1132NC 25x396mm 32mm 250pcs
SMS1144NC 30x396mm 44mm 250pcs
SMS1156NC 42x396mm 56mm 250pcs
SMS1172NC 58x396mm 72mm 250pcs



Structure:

Yellow 8/12/16/24mm SMT Splice Tape Acrylic Smt Cover Tape Extender 0

Technical Data:

No. Test Content Test Value
1 Peeling-off force (N/25mm) by angle of 180 degree ≥15
2 Retaining (H/25*25mm) >100
3 Tensile strength at break (N/25mm) >8.0



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
