Universal SMT Double Splice Tape With Alignment Guide Design

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Model Number: SMS18 series

Payment & Shipping Terms

Minimum Order Quantity: 1 Bag

Price: Negotiable

Delivery Time: 3-5 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000㎡/day

Get Best Price
Contact Now
Specifications
Highlight:

Universal SMT Double Splice Tape

,

Alignment Guide SMT Double Splice Tape

,

Alignment Guide SMT Splice Tape

Certification:
RoHS
Product Name:
SMS18 Series
Material:
PET
Adhesive:
Acrylic
Size:
8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue, Green, Pink, Etc Are Available
Certification:
RoHS
Product Name:
SMS18 Series
Material:
PET
Adhesive:
Acrylic
Size:
8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue, Green, Pink, Etc Are Available
Description

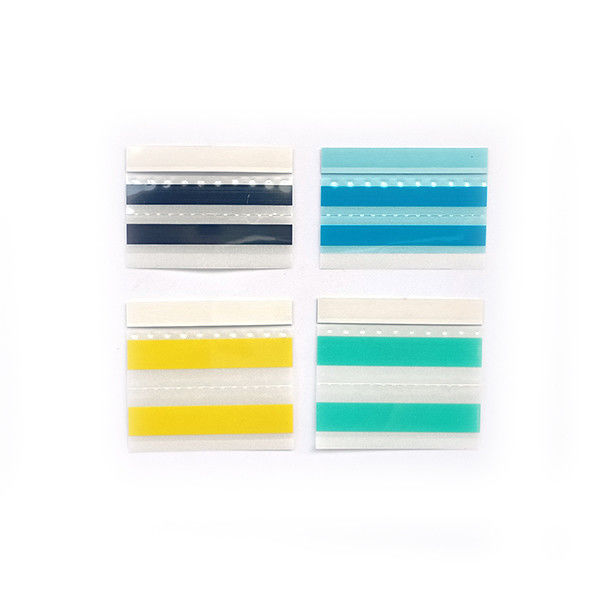

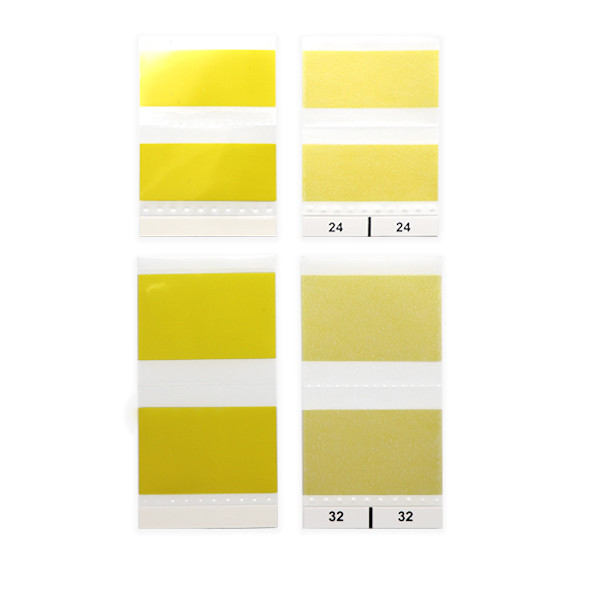

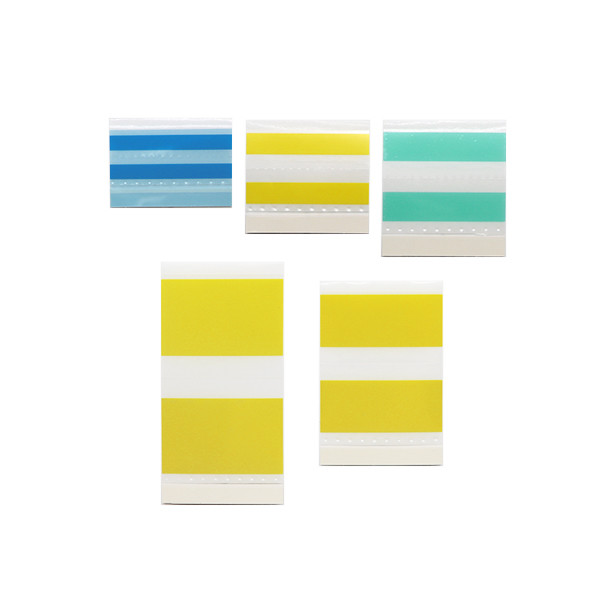

Universal SMT Double Splice Tape With Alignment Guide Design

splice tape

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.





Universal Double SMT Splice Tape Alignment Guide Design 18 series



Universal SMT double splice tape with alignment guide designed applicable for all kinds of carrier tape jointing



18 series splice tape is used for jointing carrier tapes in the SMT process, It is made of 2 green tapes and release paper,and the tape is made by our produced patent material with superior adhesion.



Features And Benefits:

1. Both guide and dots alignment designed for precise jointing. Double sides jointing for reliable jointing.

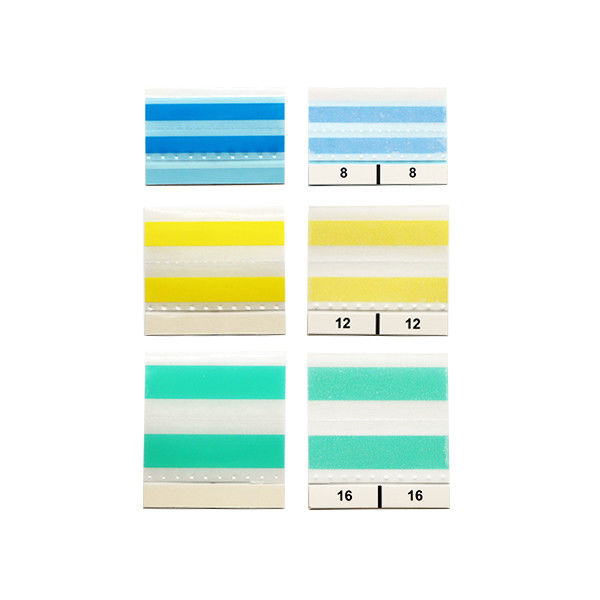

2. Available for 8mm,12mm,16mm,24mm, ,32mm,44mm,56mm,72mm carrier tapes.

3. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.

4. Available for all smt machines except sensitive machine.



Application:

Applicable for all kinds of carrier tape jointing . Various machine applicable.



Properties:

P/N Specification Application Package

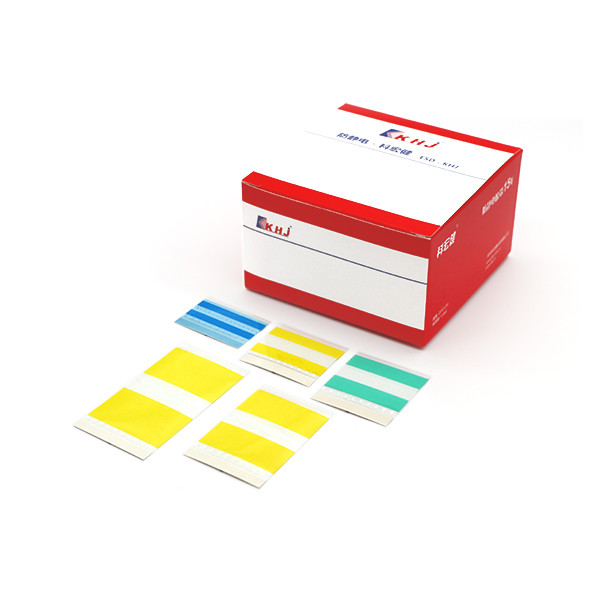

SMS1808C+ 4.8x40mm 8mm 500pcs/box
SMS1812C+ 7x40mm 12mm 500pcs/box
SMS1816C+ 9.5x40mm 16mm 500pcs/box
SMS1824C+ 17x40mm 24mm 250pcs/box



Structure:

                                   17 Series Single SMT Splice Tape Alignment Guide For Carrier Tape Jointing 0

Technical Data:

No Item Technical Parameter
1 Peeling-off force (N/25mm) by angle of 180 degree ≥15
2 Retaining (H/25*25mm) time >100
3 Tensile strength at break (N/25mm) >4.0



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
