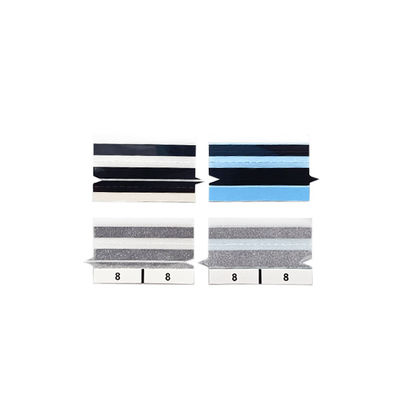

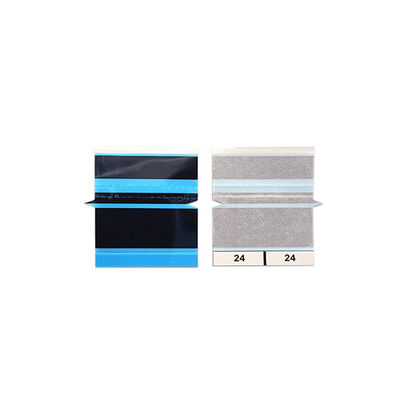

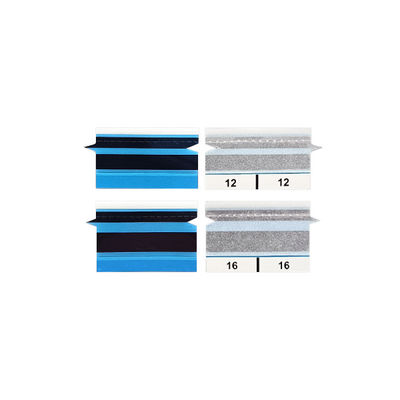

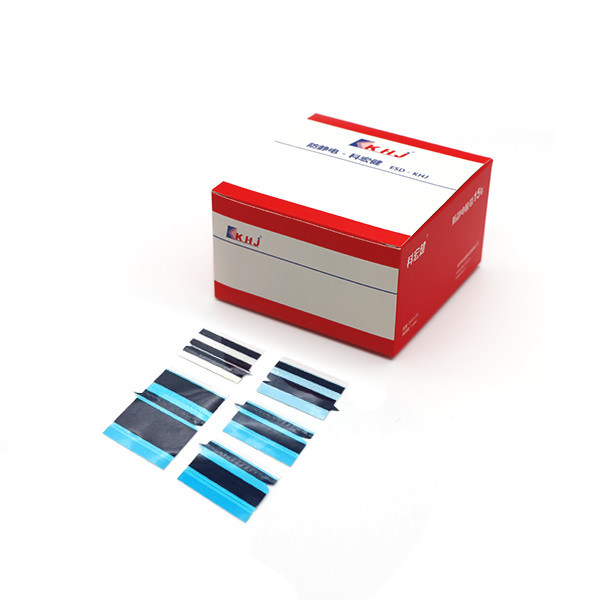

Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine

Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine
Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine

Large Image :  Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS13 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine

Description
Product Name: SMS13 Series Material: PET
Adhesive: Acrylic Size: 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color: Yellow, Black, Blue Certification: RoHS
High Light:

Guide Alignment 16mm Splicing Tape

,

Panasonic Machine 16mm Splicing Tape

,

Guide Alignment 16mm Splice Tape

Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine



Professional ESD black SMT special splice tape with guide alignment designed for Panasonic Machines



SMS‐13XXMC series splice tape are used in jointing carrier tapes for Panasonic machine, whose sensor detects jointing points via matt black color of this types of splice tape. This splice tape is made by our produced polyester (PET) material with superior adhesion.



Features And Benefits:

1. Guide alignment designed for precise jointing.

2. Double sides tape with a etra edge tape coverage more reliable jointing.

3. Machine detective to avoid wrong components jointing.

4. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.

5. Applicable for Panasonic machine.



Application:

SMS‐13XXMC series splice tape are used in jointing carrier tapes for Panasonic machine, whose sensor detects jointing points via matt black color of this types of splice tape.



Properties:

P/N Description of Goods Quantity Application
SMS-1308G SMT Special Double Splice Tape 8mm for Pan.: CM402 500pcs/box For 8mm carrier tape
SMS-1313G SMT Special Single Splice Tape 8mm for Pan.CM402 500pcs /box For 12mm carrier tape
SMS-1316G SMT Special Single Splice Tape 12mm for Pan.CM402 500pcs /box For 16mm carrier tape
SMS-1324G SMT Special Double Splice Tape 8mm for Pan.CM402 250pcs /box For 24mm carrier tape



Structure:

                                                                 Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine 0

                                                       Guide Alignment Designed 16mm Splicing Tape For Panasonic Machine 1



Main Characteristic:

No Item Standard
1 Peeling-off force(N/25mm) ≥15
2 Retaining (H/25*25mm)time >100
3 Tensile strength at break(N/25mm) >4.0
4 Surface resistance(Ohms) 106-10



How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
