Acrylic Adhesive PET 4mm Splicing Tape For SMT Process

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: SMS21 Series

Payment & Shipping Terms

Minimum Order Quantity: 1 Bag

Price: Negotiable

Delivery Time: 3-5 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000㎡/day

Get Best Price
Contact Now
Specifications
Highlight:

Acrylic Adhesive 8mm Splicing Tape

,

PET 8mm Splicing Tape

,

4mm SMT Splicing Tape

Product Name:
SMS21 Series
Adhesive:
Acrylic
Size:
4mm
Color:
Yellow
Product Name:
SMS21 Series
Adhesive:
Acrylic
Size:
4mm
Color:
Yellow
Description

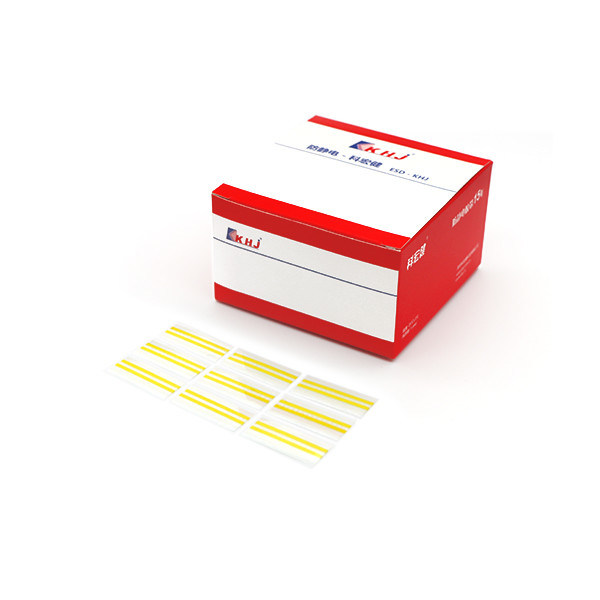

Acrylic Adhesive PET 4mm Splicing Tape For SMT Process

splice tape

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

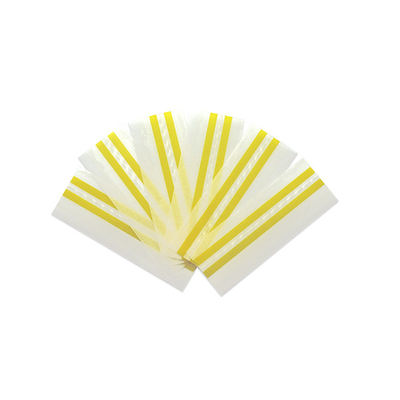

Acrylic Adhesive PET 4mm Splicing Tape For SMT Process



21 series splice tape are used in jointing 4 mm carrier tapes only in SMT process, This splice tape is made by our produced polyester (PET) material with superior adhesion.



Features And Benefits:

1. Jointed carrier tape without tape covered in the middleto reduce feeder jam rate.

2. Available for 4mm carrier tapes only.

3. Applicable for all SMT machines except sensitive machine.



Application:

SMS‐21XXC series splice tape are used in jointing carrier tapes for 4mm carrier tape only.



Properties:

P/N Specification Application Package
SMS-2104c   For 4mm 500pcs/box



Technical Data:

No Item Standard
1 Peeling-off force (N/25mm) ≥15
2 Retaining (H/25*25mm) time >100
3 Tensile strength at break (N/25mm)

>4.0



How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
