Metal / Color Sense SMT Splice Tape For Fuji NXT Siemens Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: SMS27 series

Payment & Shipping Terms

Minimum Order Quantity: 1 Bag

Price: Negotiable

Delivery Time: 3-5 workdays

Payment Terms: L/C, T/T

Supply Ability: 10000㎡/day

Get Best Price
Contact Now
Specifications
Highlight:

Fuji NXT Machine SMT Splice Tape

,

Siemens Machine SMT Splice Tape

,

Color Sense SMT Splicing Tape

Product Name:
SMS27 Series
Material:
PET
Adhesive:
Acrylic
Size:
4mm,8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Red,silver
Peeling-off Force:
(N/25mm) By Angle Of 180 Degree≥15
Product Name:
SMS27 Series
Material:
PET
Adhesive:
Acrylic
Size:
4mm,8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Red,silver
Peeling-off Force:
(N/25mm) By Angle Of 180 Degree≥15
Description

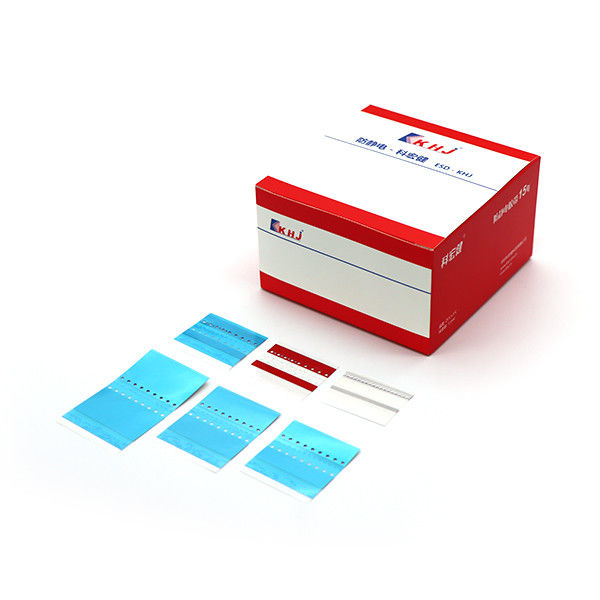

Metal / Color Sense SMT Splice Tape For Fuji NXT Siemens Machine

splice tape

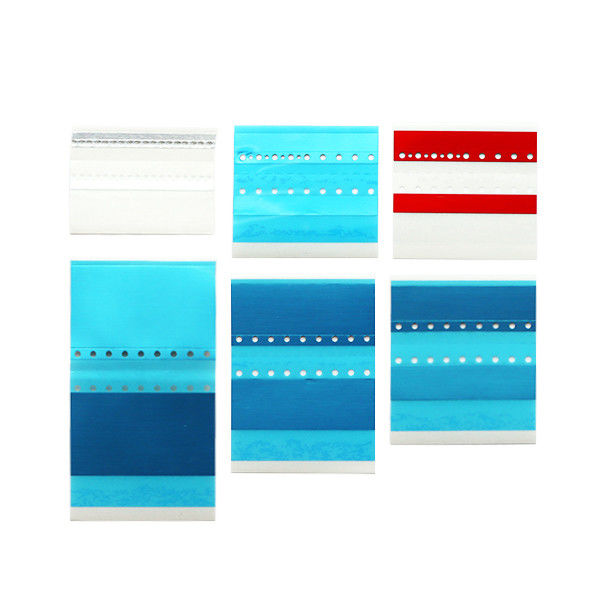

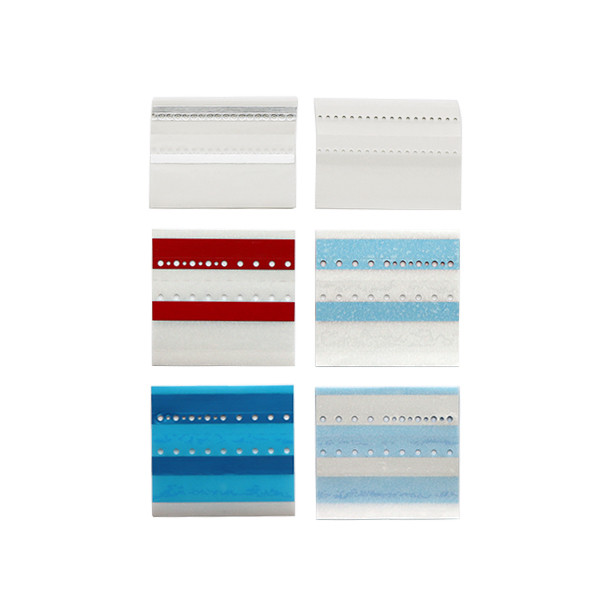

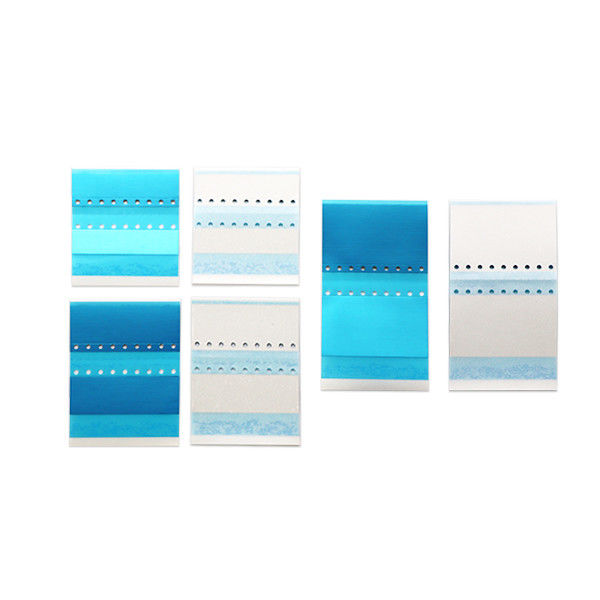

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.



Professional metal silver SMT splice tape for Fuji NXT Siemens Machine



SMS‐27xxC series splice tape are used for jointing carrier tapes in the SMT process. This splice tape is used for jointing carrier tapes in the SMT process, It is made of 2 silver tapes and release paper, and the tape is made by our produced patent material with superior adhesion.



Features And Benefits:

1. Holes alignment for precise jointing.

2. Sense by metal or color, Ideal for Siemens, Fuji Machine.

3. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.

4. Applicable for Fuji NXT, Siemens machine.



Application:

SMS‐27XXMC series splice tape are used in jointing carrier tapes for Siemens,Fuji machine, whose sensor detects by metal or color.



Properties:

P/N Size Carrier Tape Qty/Box
SMS2708C (4.8/7.6)x36mm 8mm 500pcs/box
SMS2712C (11.6/8.8)x36mm 12mm 500pcs/box
SMS2716C (15.6/12.8)x36mm 16mm 500pcs/box
SMS2724C (23.6/20.8)x36mm 24mm 250pcs/box


Technical Data:

No Item Test Data
1 Peeling-off force (N/25mm) by angle of 180 degree ≥15
2 Retaining (H/25*25mm) hours >8
3 Tensile strength at break (N/25mm) >2.5



Structure:

                                             8mm Metal Silver SMT Splice Tape 0



How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
