Product Details:
|
| Product Name: | SMS36 Series | ||
|---|---|---|---|
| High Light: | 8mm ESD SMT Splice Tape,Automatic Splicing Machine SMT Splice Tape,ESD 8mm Splicing Tape |
||

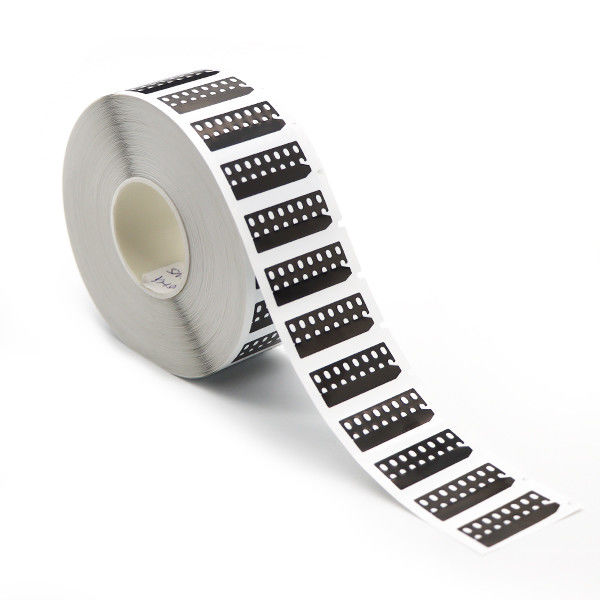

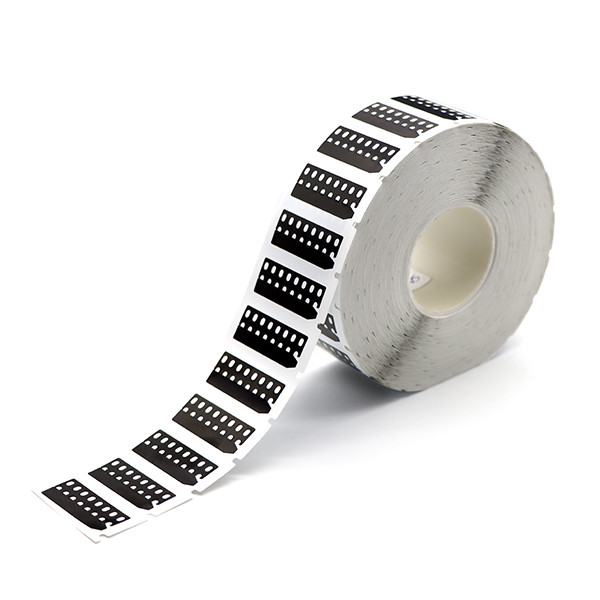

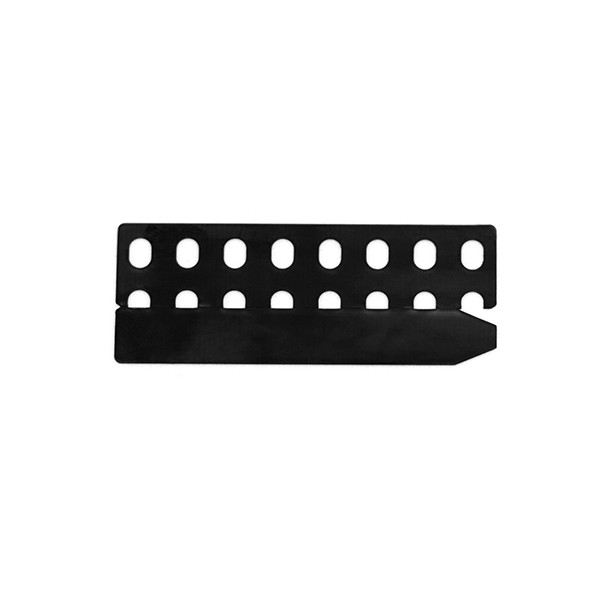

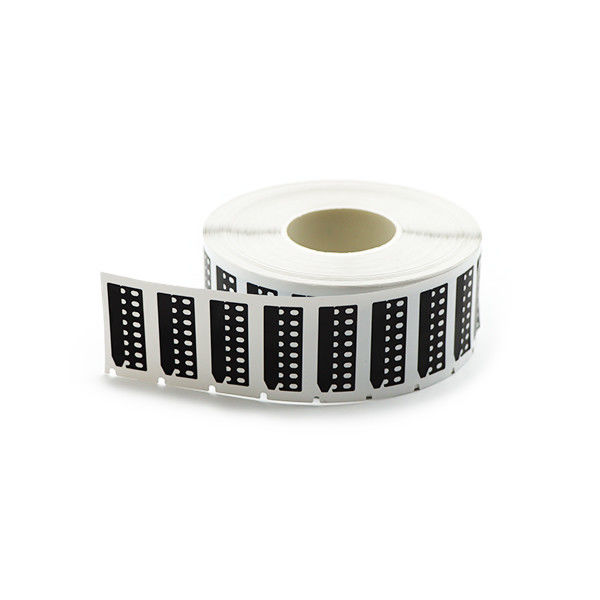

KHJ36 series 8mm Automatic SMT Splice Tape For Automatic Splicing Machine KHJ KA100P
Reel type automatic splicing tape SMT special splice tape for automatic splicing machine
SMS‐36xxC series splice tape splice is used for jointing carrier tapes in the SMT process,It is made of tapes, transparent release film and removable PET without logo,and the tape is made by our produced patent material with superior adhesion.
Features And Benefits:
1. Ideal for automatic splicing machine, high jointing efficiency.
2. Metal sense to avoid wrong components jointing.
3. Available for 8mm carrier tapes.
4. Applicable for FUJI machine.
Application:
SMS‐36xxC series esd black splice tape splice is used for jointing carrier tapes in the SMT process,Especially used for automatic splicing machines.
characteristic:
| No | Item | Test data |
| 1 | Peeling-off force(N/25mm)by angle of 180 degree | ≥15 |
| 2 | Retaining (H/25*25mm)time | >8 |
| 3 | Tensile strength at break(N/25mm) | >2.5 |
How to use:
Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.
| Storage condition: |
| Temperature: 20℃-30℃ |
| Ralative Humidity(RH): 45%-65% |
| Shelf-life: One year |
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
