Anti-static adhesive tape -E1-F921K

Anti-static adhesive tape -E1-F921K

Brand Name: KHJ
Model Number: E1-F921K
Detail Information
Place of Origin:
ShenZhen China
Certification:
RoHS
Product Description
Description

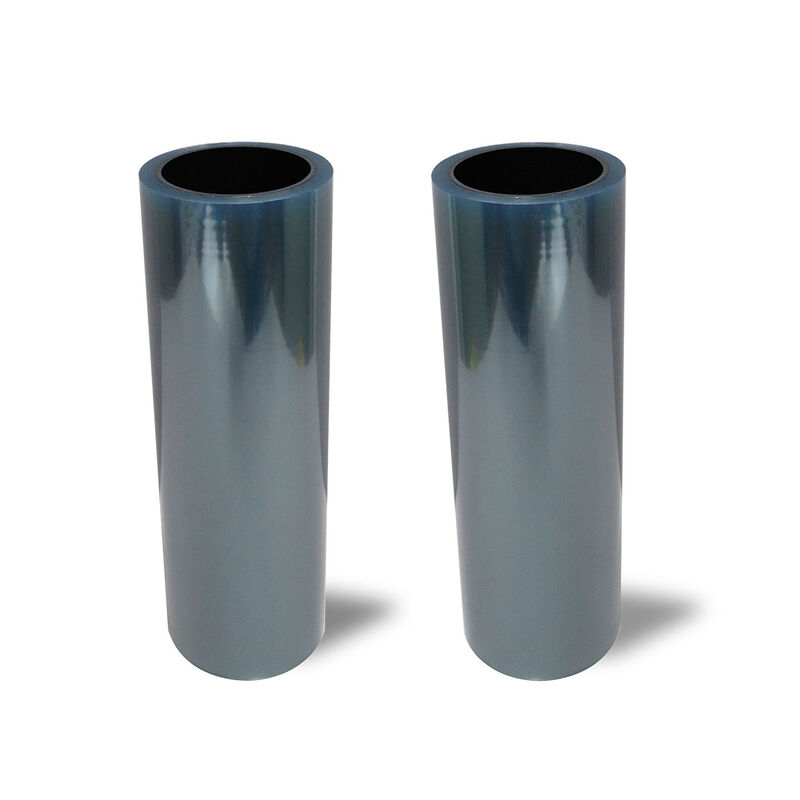

E1-F921K is a PET transparent film as the base material, the surface coated with acrylic adhesive a high adhesive tape; the adhesive effect is stable, no residual glue is used at room temperature, and has a good anti-static effect.


Construction



Anti-static adhesive tape -E1-F921K 0



Features

● Strong adhesion, no residual glue after removal.

● Excellent anti-static performance.
● Low unwinding voltage.
● Excellent tensile properties.


Application



The product can be applied to various environments with anti-static Requirements such as fixing, connecting and packaging of electronic Manufacturing .


Properties



Item Typical Value Test Method
Backing 0.038mm /
Total Thickness 0.065±0.005mm /
Adhesion to Steel ≥18N/25mm GB 2792-2014
Tensile Strength ≥3(KN/M) GB 30776-2014
Elongation ≥90% GB 30776-2014
Surface Resistance 105~10ohms /
Static Discharge
(Removal from roll)
<100V /





Storage




  • Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
  • Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder




  • Surface should be clean, dry, free of dust, oil or other contaminants.
  • Proper pressure required by roller, hand or press when applying.
  • Avoid repeat sticking to prevent adhesion decrease.

Notes




Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
