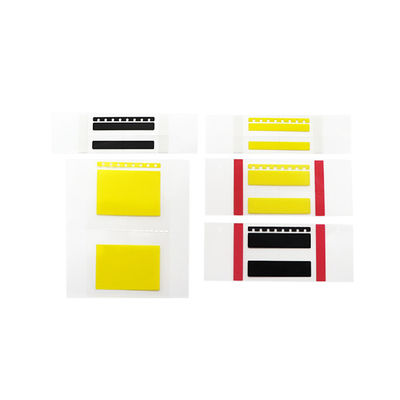

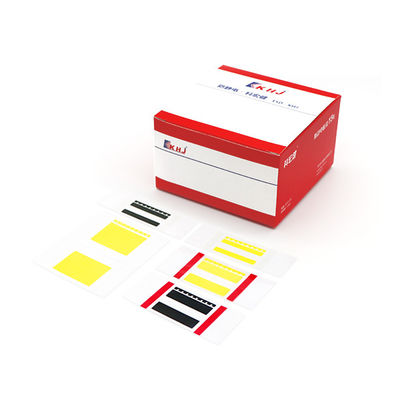

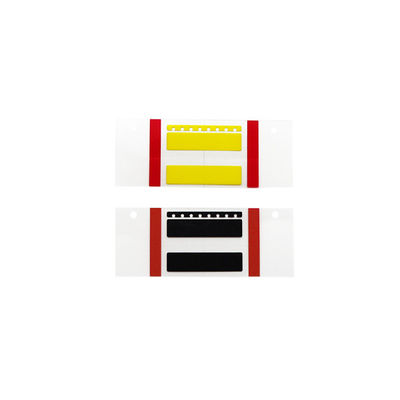

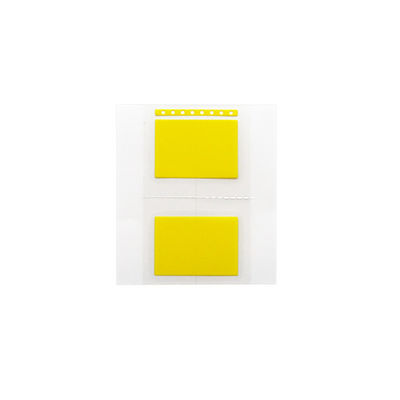

KHJ15 series 8 holes positioning universal splice tape,applicable to all size carrier tapes

KHJ15 series 8 holes positioning universal splice tape,applicable to all size carrier tapes

Brand Name: KHJ
Model Number: SMS15 series
MOQ: 1 Bag
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
SMS15 Series
Material:
PET
Adhesive:
Acrylic
Size:
8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color:
Yellow, Black, Blue
Peeling-off Force:
(N/25mm) By Angle Of 180 Degree≥15
Supply Ability:
10000㎡/day
Highlight:

Black SMT Splice Tape

,

Electrical SMT Splice Tape

,

SGS SMTl Splicing Tape

Product Description

KHJ15 series 8 holes positioning universal splice tape,applicable to all size carrier tapes 0

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.



KHJ15 series 8 holes positioning universal splice tape,applicable to all size (8/12/16/24/32/44/56/72/88mm)carrier tapes



15 series splice tape is used for jointing carrier tapes in the SMT process. It is made of tapes and polyester film and release paper, and the tape is with superior adhesion.





KHJ15 series 8 holes positioning universal splice tape,applicable to all size carrier tapes 1






Features And Benefits:

1. 8 hole positioning, with the help of positioning tool, more accurate jointing.

2. Applicable to all SMT machine (except for machine requiring induction).



Application:

Used for SMT process,to solve SMT carrier tape connection problems.



Properties:

P/N Qty Carrier Tape Size Color ESD NO ESD





SMS1508/12/16/

24/32/44/56/72/88





500/250Pcs/Box





8mm/12mm/16mm/24mm/

32mm/44mm/56mm/72mm/88mm

C
B
G
M
L



Storage Condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year



Keywords:SMT Splice Tape, SMT Universal Splice Tape, SMT anti-static splice tape



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
