|Application:||Used For Fixing And Sealing The End Of SMT Carrier Tape Reels Or Other Materials Reels||Size:||50mmx7mm|
|Color:||Green And Yellow||Certification:||SGS|
PET SMT Splice Tape,
ESD SMT Splice Tape,
smt splicing tape
ESD PET SMT Splice Tape

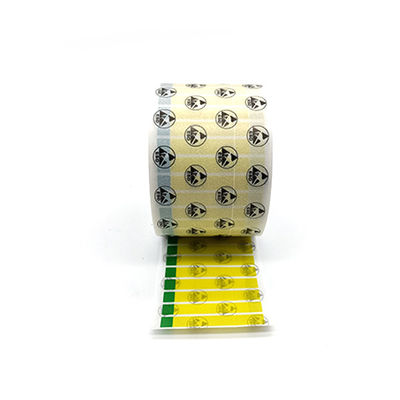

ESD End Sealer Label SMS4001C-T used for fixing and sealing the end of SMT carrier tape reels or other materials reels
This Label is made of 3 parts(Yellow adhesive tape+ Yellow non-adhesive tape+Green non-adhesive tape),it is used for fixing and sealing the end of SMT carrier tape reels or other materials reels.
Features And Benefits:
1.ESD with no damage to electronics components；
2.Two end with no adhesive,easy to peel and pull；
3.The green non-adhesive area is a clear mark which can be identified effectively to peel off this label from reels at correct direction to avoid peel the cover tape off.
1.Used for sealing the new SMT carrier tape reel packaging；
2.Used for fixing the end of SMT carrier tape reel to avoid loosing when storing the used SMT carrier tape reels.
|Part No.||Size||Package||Surface Resistance||Static Voltage||Core ID|
|SMS4001C - T||50×7mm||3000pcs/roll||105-10 Ω||＜100V||38mm|
How to use:
1. Sticking : Hold the yellow non-adhesive area,stick half part of label on the end of carrier tape
and then fix on the whole reel.
2. Peeling : Peel off the label at the green transparent non-adhesive area from the reel.
