SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine

SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine
SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine

Large Image :  SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS31 series
Payment & Shipping Terms:
Minimum Order Quantity: 1box
Price: Negotiable

SMS31 series PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine

Description
Product Name: SMS31 Series
High Light:

Reel SMT Splice Tape

,

Fuji SMT Splice Tape

,

SMT reel splicing Tape

PET Reel Type SMT Splice Tape For Fuji NXT Automatic Machine

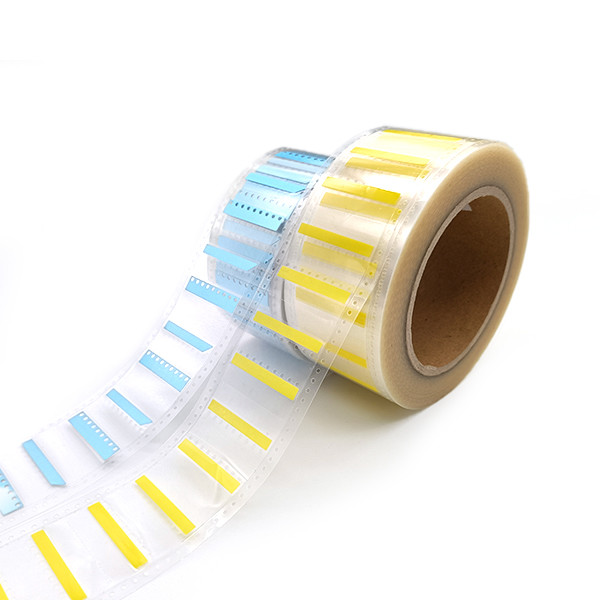

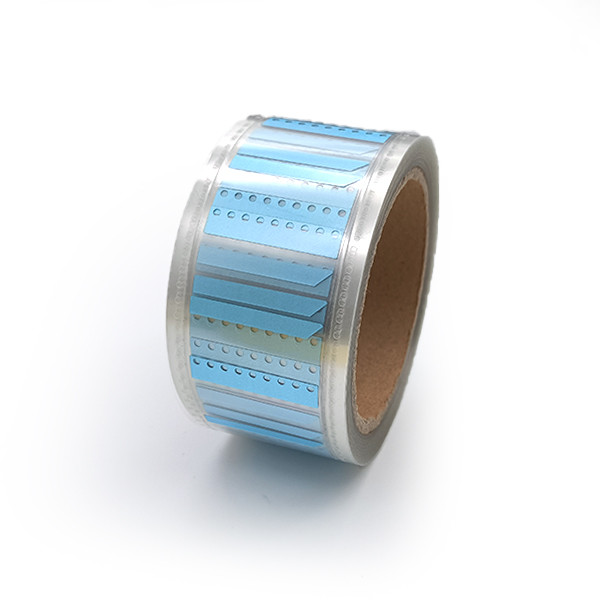

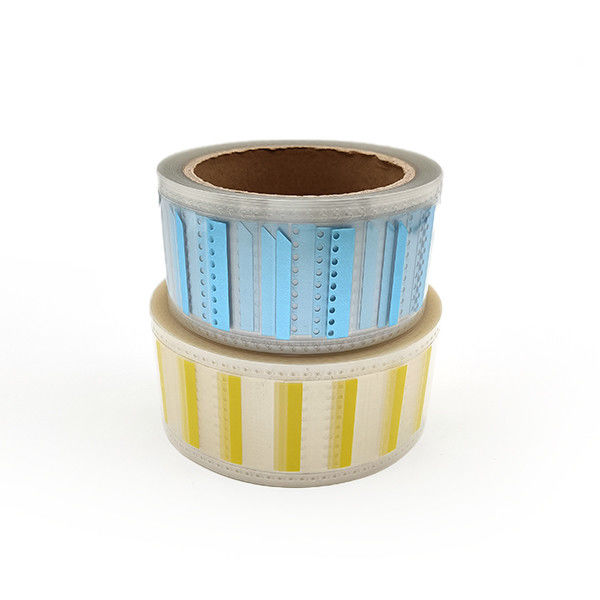

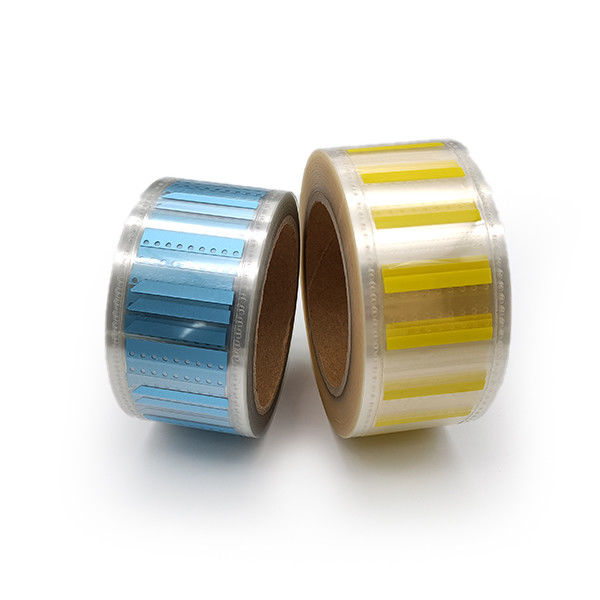

Reel type Fuji splice tape SMT special splice tape for Fuji NXT Automatic Machine



SMS‐31xxC series reel type splice tape splice is used for jointing carrier tapes in the SMT process,Especially used for Fuji Automatic machines. It is made of two silver tapes, transparent release film and removable PET without logo,and the tape is made by our produced patent material with superior adhesion.



Features And Benefits:

1. Detective (silver) and Non-detectiver(Yellow) are available.

2. No remaining carrier tape components wastage.

3. Available for 8mm carrier tapes.

4. Applicable for Fuji NXT machine.



SMS31 series Application:

SMS‐31xxC series reel type splice tape splice is used for jointing carrier tapes in the SMT process,Especially used for Fuji Automatic machines.



Properties:

P/N Size For carrier tape seize Packing
SMS31080013C (4.5/7.4)x36mm 8mm 1200pcs/roll
SMS31080014C (4.5/7.4)x36mm 8mm 1200pcs/roll



Technical Data:

No Item Test data
1 Peeling-off force(N/25mm)by angle of 180 degree ≥15
2 Retaining (H/25*25mm)time >8
3 Tensile strength at break(N/25mm) >2.5


How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.

This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Why choose us?

1. Good production capacity and fast delivery.

2. Provide samples and best service.

3. Professional tape manufacturer for nearly 20 years.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
