| Brand Name: | KHJ |
| Model Number: | SMS09 series |
| MOQ: | 1 Bag |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000㎡/day |
Multiple product types:
1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;
Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

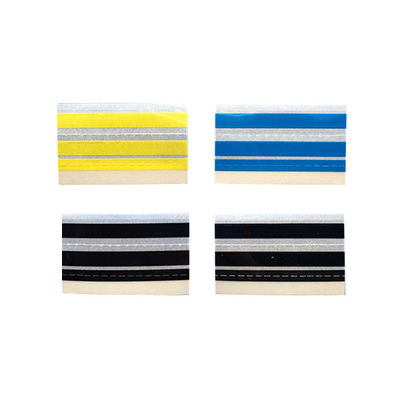

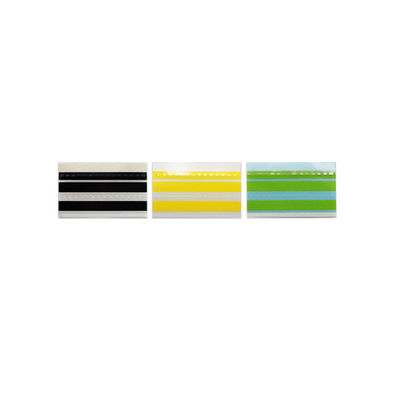

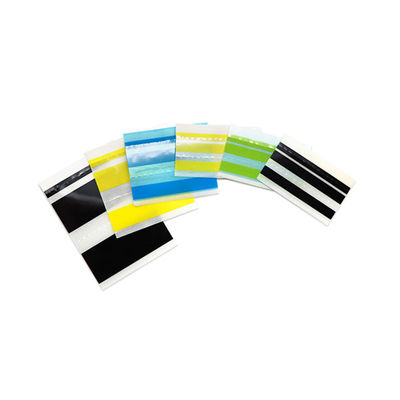

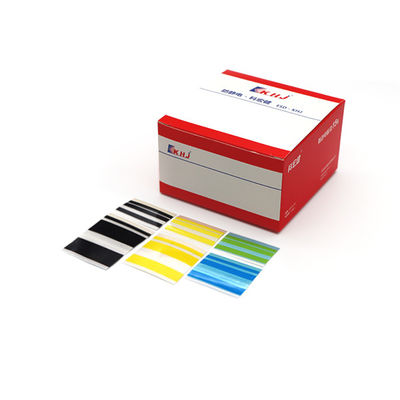

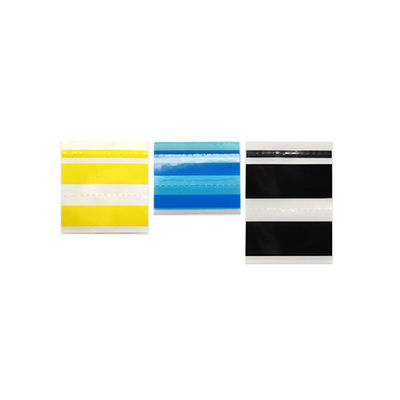

SMS09 Series Film Splicing Tape 8mm 12mm Acrylic Adhesive Guide Alignment
Special SMT splice tape with three tapes and guide alignment designed for stronger jointing of carrier tape(09 series)
Univeral, Juki, Sanyo special SMT splice tape with three tapes and guide alignment designed for stronger jointing of carrier tape
Features And Benefits:
1. 09series special splice tape is used for jointing carrier tapes in the SMT process,Especially used for Univeral, Juki, Sanyo machines. Te tape is made by our produced patent material with superior adhesion.
2. Three tapes and guide alignment designed for stronger jointing.
3. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.
4. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.
Application:
09series single splice tape is used for jointing carrier tapes in the SMT process,Especially used for Univeral, Juki, Sanyo machines.
Structure:
How to use:
Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.
Storage Condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
