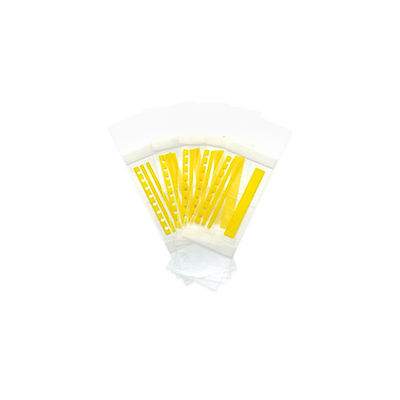

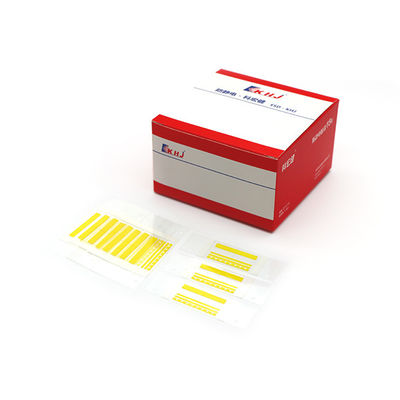

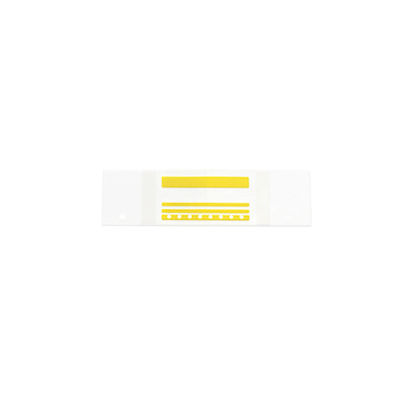

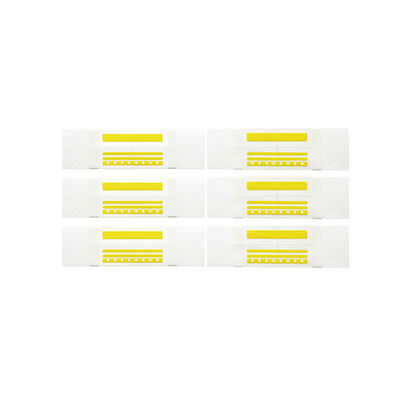

8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive

8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive
8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive 8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive 8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive 8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive

Large Image :  8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS20 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

8 Holes Designed 8mm Single Splice Tape With Acrylic Adhesive

Description
Product Name: SMS20 Series Material: PET
Adhesive: Acrylic Size: 8mm
Color: Yellow Certification: RoHS
High Light:

8 Holes Single Splice Tape

,

Acrylic Adhesive Single Splice Tape

,

8 Holes 8mm Splice Tape

8 Holes Designed Single Splice Tape Acrylic PET 8mm Series



Professional SMT special splice tape with 8 holes designed for Universal Juki Sanyo Machines



20 series splice tape are used in jointing carrier tapes for Universal Juki Sanyo machine in SMT process, This splice tape is made by our produced polyester (PET) material with superior adhesion.



Features And Benefits:

1. Guide alignment designed for precise jointing.

2. Jointed carrier tape without tape covered in the middleto reduce feeder jam rate.

3. Available for 8mm carrier tapes.

4. Applicable for Universal Juki Sanyo machines.



Application:

SMS‐20XXC series splice tape are used in jointing carrier tapes for Universal Juki Sanyo machines.



Properties:

P/N Specification Application Package
SMS-2008 (1.65/4.5/4.2)x40mm For 8mm 500pcs/box



Technical Data:

No Item Standard
1 Peeling-off force (N/25mm) ≥15
2 Retaining (H/25*25mm) time >100
3 Tensile strength at break (N/25mm) >4.0



How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
