| Place of Origin | Guangdong, China |
| Brand Name | KHJ |
| Certification | ROHS |
| Model Number | SMS35 Series |

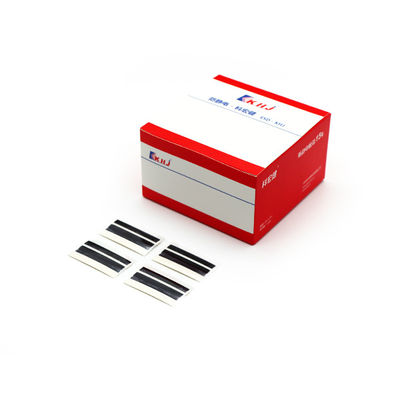

Panasonic Machine SMT Splicing Tape ESD Black Two Guides Designed

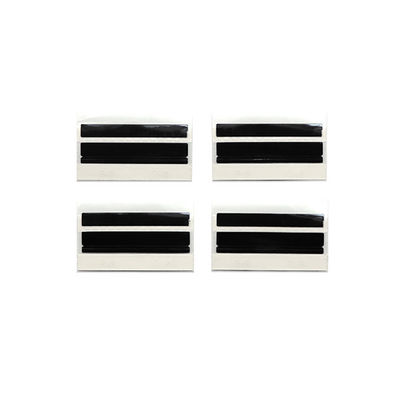

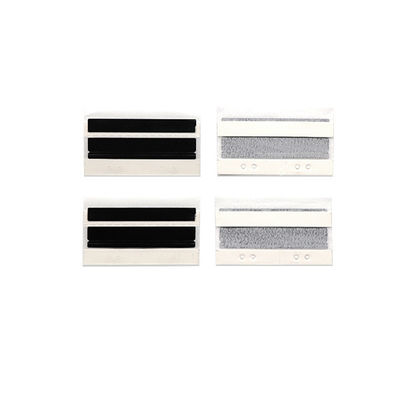

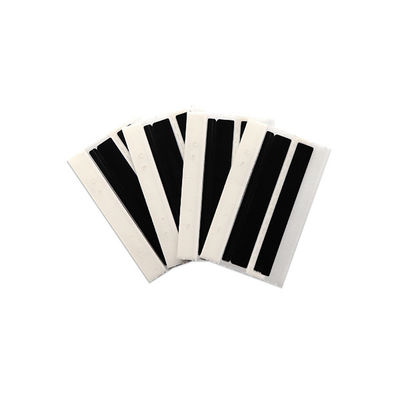

ESD black SMT special splice tape with two guides designed for Panasonic Machine
Features And Benefits:
1. Two guides design for precise jointing.
2. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.
3. Applicable for Panasonic machine.
Application:
SMS‐35xxC series esd black splice tape splice is used for jointing carrier tapes in the SMT process,Especially used for Panasonc machines.
Properties:
| P/N | Specification | Application | Package |
| SMS35120002GC | (1.5/11.6/6)x40mm | For 12mm | 500pcs/box |
| SMS35160002GC | (8/15.6/3)x40mm | For 16mm | 500pcs/box |
| SMS35240001GC | (15/23.6/3)x40mm | For 24mm | 250pcs/box |
characteristic:
| No | Item | Test data |
| 1 | Peeling-off force(N/25mm)by angle of 180 degree | ≥15 |
| 2 | Retaining (H/25*25mm)time | >8 |
| 3 | Tensile strength at break(N/25mm) | >2.5 |
How to use:
Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.
| Storage Condition: |
| Temperature: 20℃-30℃ |
| Ralative Humidity(RH): 45%-65% |
| Shelf-life: One year |
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
