products details

Created with Pixso. Home Created with Pixso. PRODUCTS Created with Pixso.
Polyester Adhesive Tape
Created with Pixso.

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color

Brand Name: KHJ
Model Number: E1-TH862G
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
E1-TH862G
Backing Thickness:
0. 025mm
Total Tape Thickness:
0.060±0.005mm
Adhesion To Steel:
5~7 (N/25mm)
Static Discharge (Removal From Roll):
<100V
Elongation At Break:
≥90%
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

0.06mm Polyester Masking Tape

,

2.4mil Polyester Masking Tape

,

2.4mil green polyester tape

Product Description

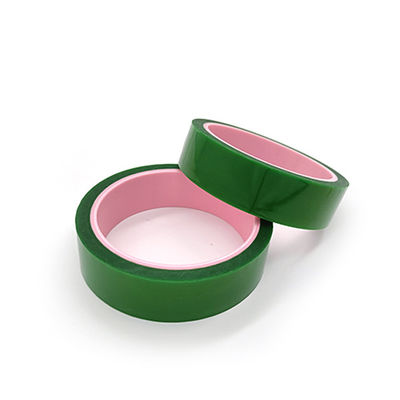

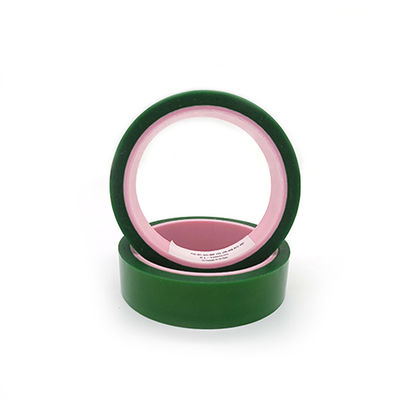

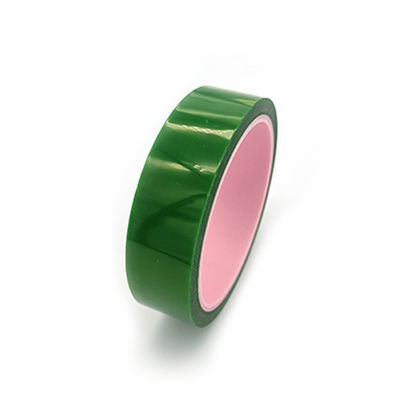

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color 0High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color 1High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color 2

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color



High temperature antistatic green polyester masking tape E1-TH862G



E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.



Features And Benefits:

1. Resistant high temperature up to 200℃.

2. No residue after removal.

3. Excellent anti-aging ability, long shelf life.



Polyester Adhesive Tape E1-TH862G Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.4±0.2mil 0.060±0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 1.1~1.6lbs/in 5~7N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V
Maximum Operating Temperature 392℉ 200℃

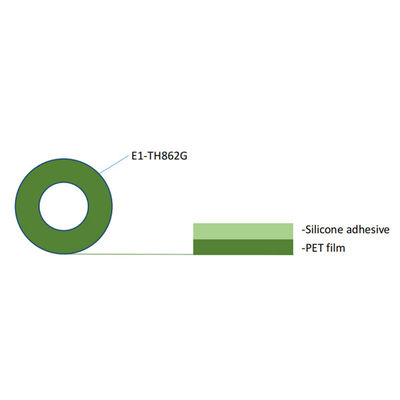

Construction:

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color 3





Application:

Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.

High Temperature Polyester Masking Tape 0.06mm Antistatic Green Color 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
