Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-F921B
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E1-F921B |
Tensile Strength: |
≥4(KN/M) |
Static Discharge (Removal From Roll): |
<100V |
Elongation: |
≥90% |
Adhesion To Steel: |
15N/25mm |
Total Thickness: |
0.045±0.005mm |
Product Name: |
E1-F921B |
Tensile Strength: |
≥4(KN/M) |
Static Discharge (Removal From Roll): |
<100V |
Elongation: |
≥90% |
Adhesion To Steel: |
15N/25mm |
Total Thickness: |
0.045±0.005mm |

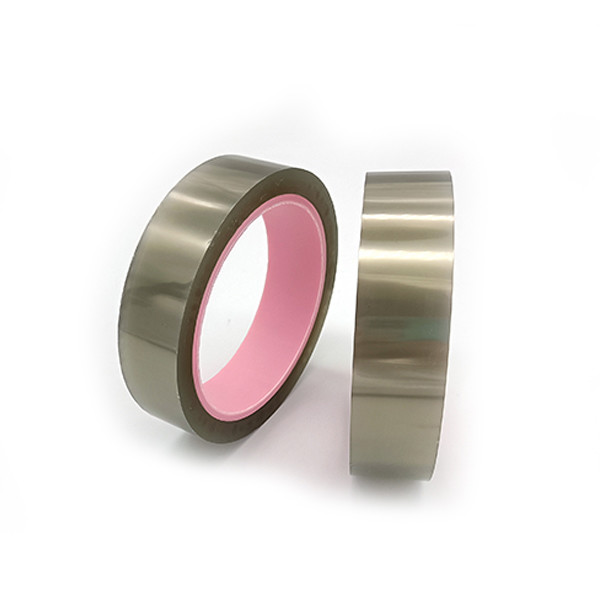

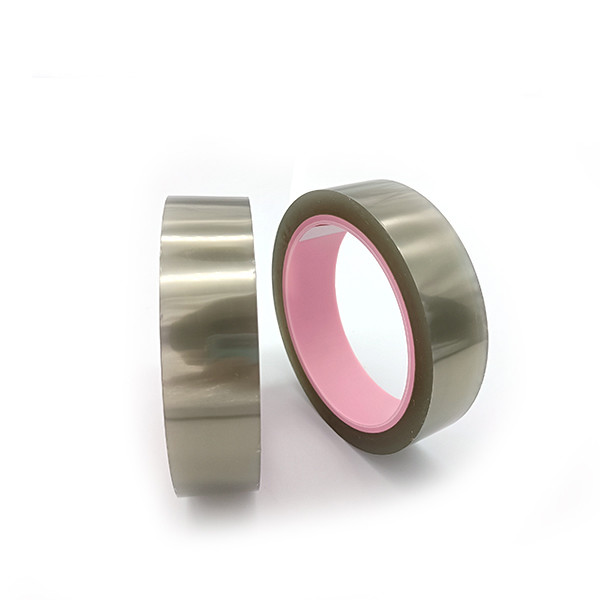

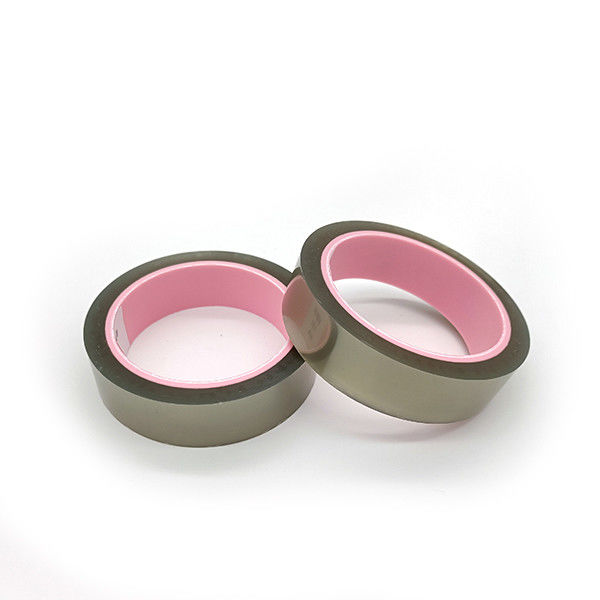

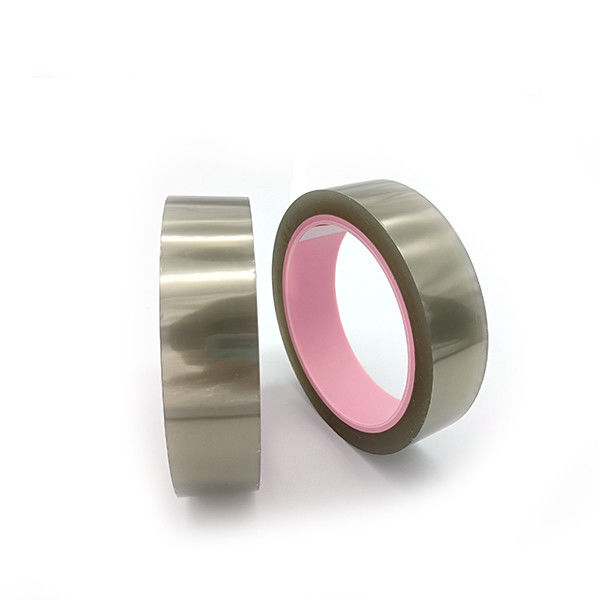

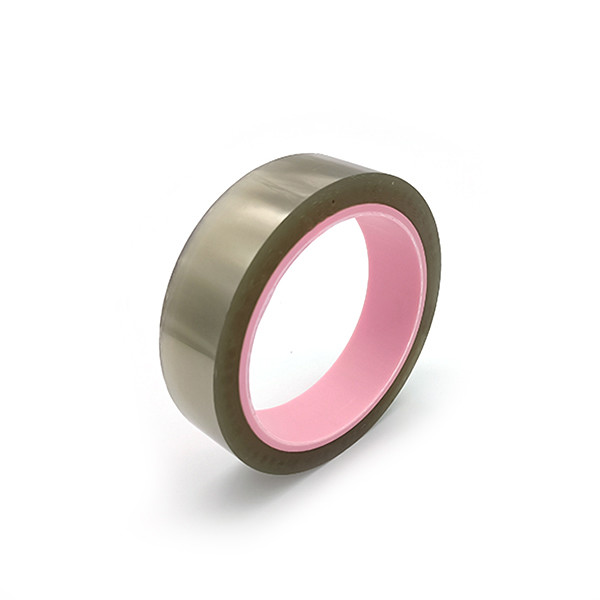

Acrylic Pressure Sensitive Polyester Adhesive Tape 0.045mm Thickness Anti Static
Acrylic pressure sensitive adhesive polyester tape E1-F921B with excellent antistatic performance
E1-F921B is a transparent tape coated with acrylic pressure sensitive adhesive on the surface of PET film. It has good adhesion.
Features And Benefits:
1. Strong adhesion, no residual glue after removal.
2. Low electrostatic discharge at unwind.
3. Excellent antistatic performance.
4. RoHS Compliant.
Properties:
Item | Typical Value | |
Imperial | Metric | |
Backing | 1.0mil | 0.025mm |
Total Thickness | 1.8±0.2mil | 0.045±0.005mm |
Adhesion to Steel | 3.5lbs/in | 15N/25mm |
Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
Elongation | ≥90% | ≥90% |
Surface Resistance | 10 6~8 ohms | 10 6~8 ohms |
Static Discharge (Removal from roll) |
<100V | <100V |
Construction:
Application:
The product can be applied to various environments with anti- static requirements, such as fixing,connecting and packaging of electronic manufacturing.It can also be used as temporary bonding and electronic packaging.
Storage:
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Why choose us? What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. Advanced production and processing equipment, environmentally friendly and reliable products.
3. Good reputation and after-sales service team.
Precaution Reminder:
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
4. Good production capacity and fast delivery.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
