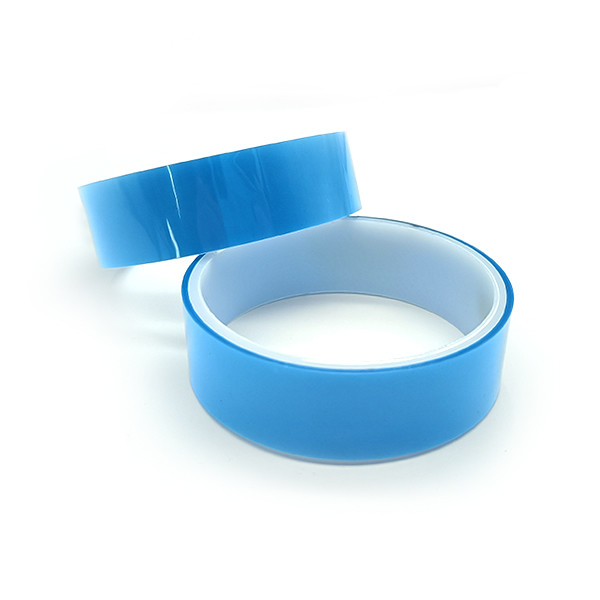

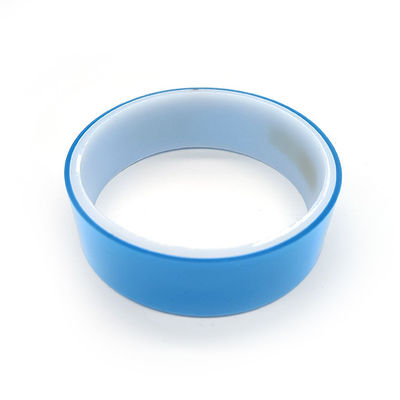

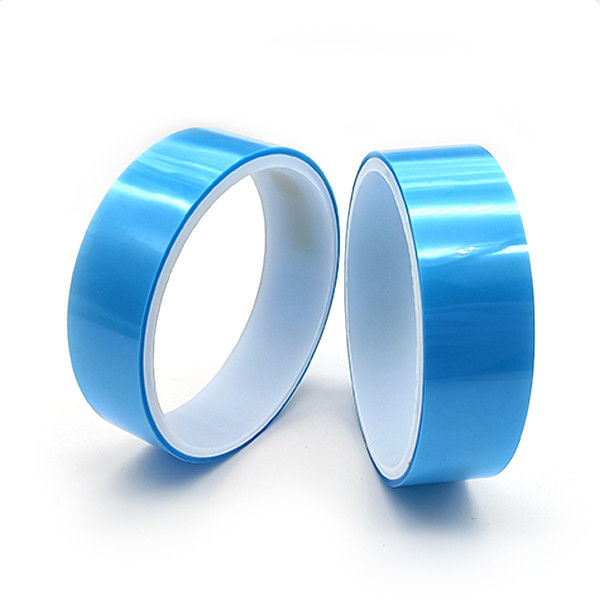

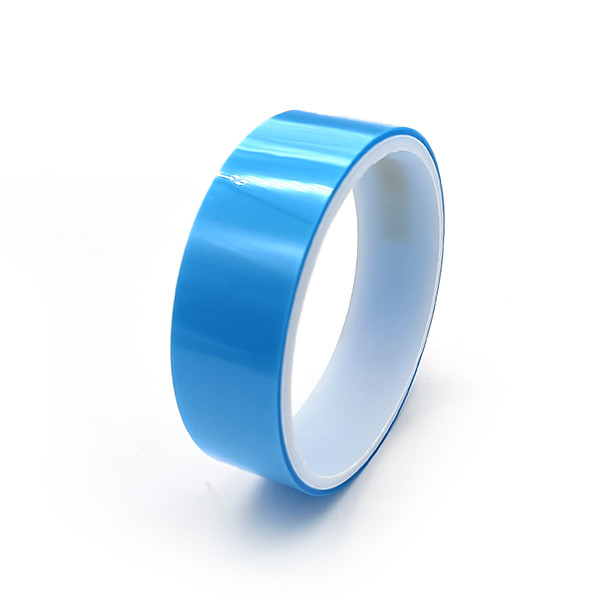

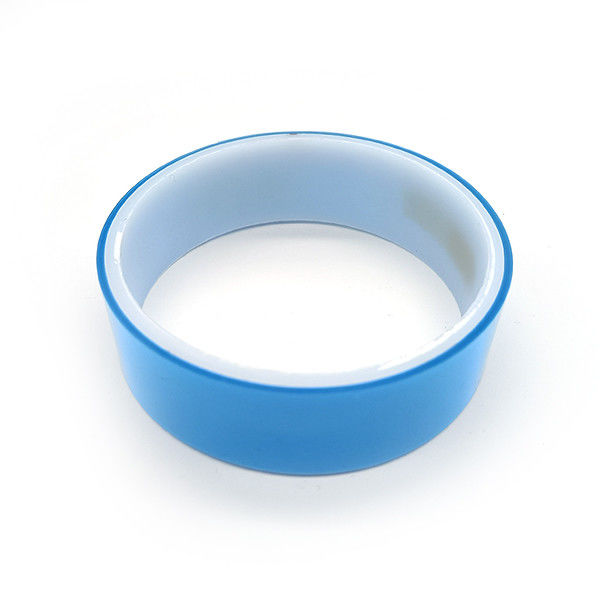

0.16mm blue thermal tape For Electronic Component Processing

0.16mm blue thermal tape For Electronic Component Processing
0.16mm blue thermal tape For Electronic Component Processing 0.16mm blue thermal tape For Electronic Component Processing 0.16mm blue thermal tape For Electronic Component Processing 0.16mm blue thermal tape For Electronic Component Processing

Large Image :  0.16mm blue thermal tape For Electronic Component Processing

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: TS630A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

0.16mm blue thermal tape For Electronic Component Processing

Description
Product Name: TS630A Total Tape Thickness: 0.160±0.005mm
Backing Thickness: 0.100 ±0.002 Mm Tensile Strength At Brea: ≥3.5KN/M
Elongation At Break: ≥45% Adhesion To Steel: Before Heating: 0.5N/25mm; After Heating: 0 N/25mm
High Light:

0.16mm Blue Thermal Tape

,

ODM Blue Thermal Tape

,

0.16mm heat conductive tape

0.16mm Blue Thermal Tape For Electronic Component Processing



Thermal release tape TS630A for electronic component processing blue tape



TS630A is a blue polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(125-135℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Application:

TS630A is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.



Properties:

Item   Typical Value Test Method
    Metric
Backing 0.100mm /
Total Thickness 0.160±0.005mm /
Tack   ≥12(J.DOW/#)
Adhesion Before heating 0.5N/25mm



GBT 2792-2014

  After heating   0
Tensile Strength ≥3.5(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014



Construction:

0.16mm blue thermal tape For Electronic Component Processing 0



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Why buy from us instead of buying from other suppliers?

1. Good reputation and after-sales service team.

2. SGS certification.

3. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
