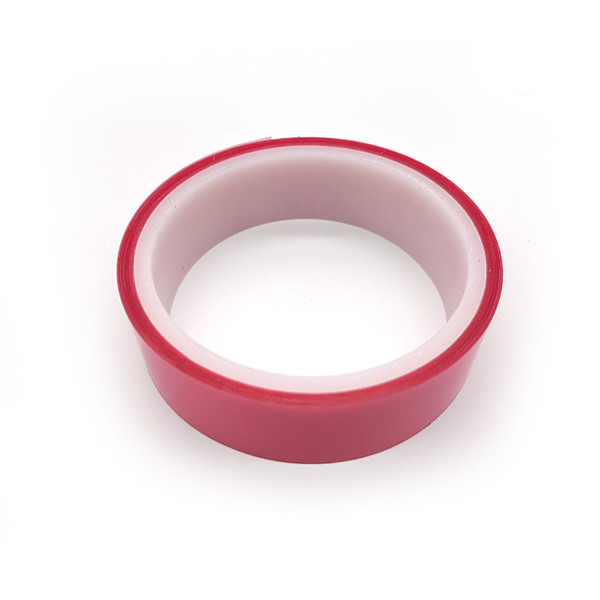

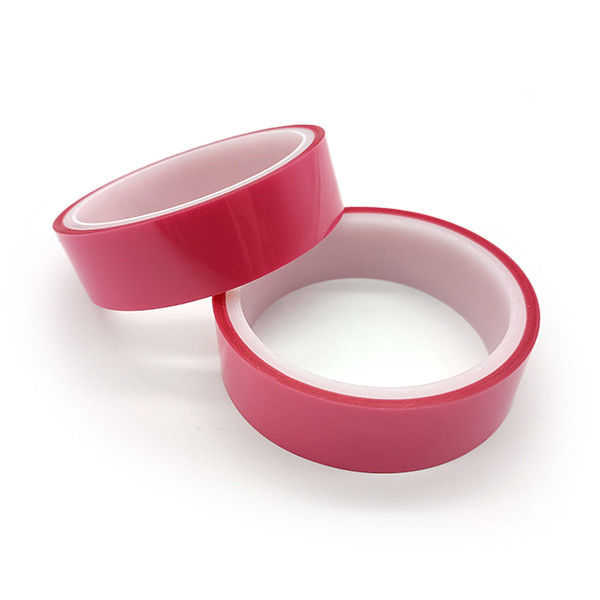

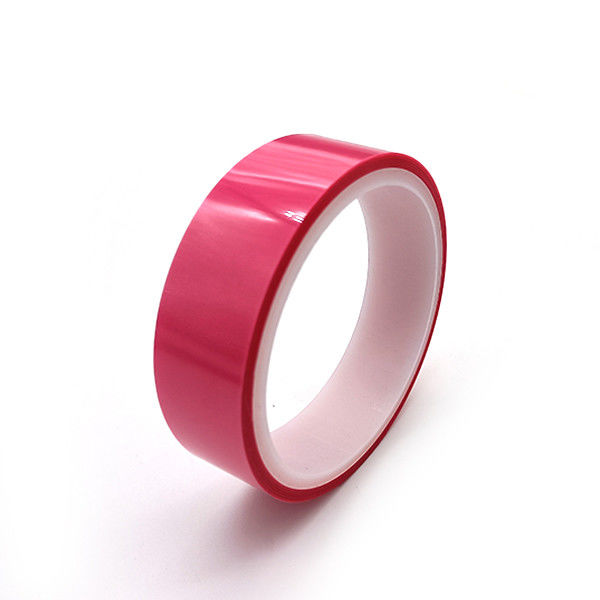

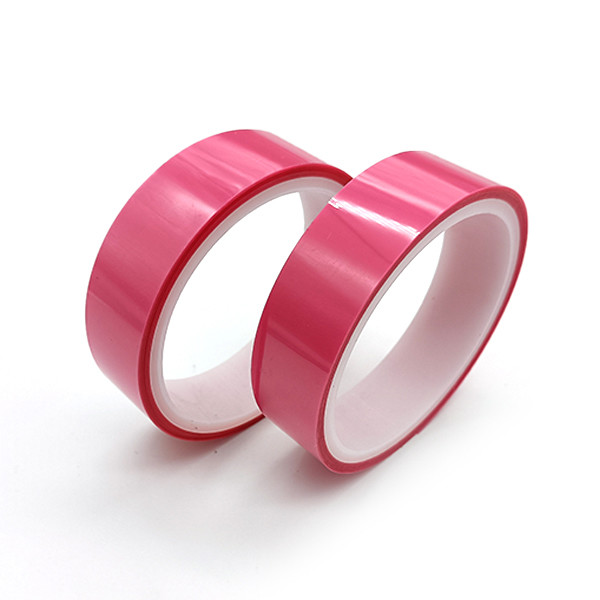

Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion
  • Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion
  • Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion
  • Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion
  • Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion

Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number TS630D-H
Product Details
Product Name:
TS630D-H
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
1-2N/25mm; After Heating: 0 N/25mm (135-150℃ * 5-15mins)
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
High Light:

8N Thermal Release Tape

,

OEM ODM Thermal Release Tape

,

8N thermal adhesive tape

Product Description

khjkhj emailkhj workshop

Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion



Polyester film backed pressure-sensitive adhesive tape TS630D-H with high initial adhesion



TS630D-H is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(135-150℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Properties:

Item Typical Value Test Method
    Metric
Backing 0.075mm /
Total Thickness 0.135±0.005mm /
Tack   ≥12(J.DOW/#)
Adhesion Before heating 8N/25mm



GBT 2792-2014

  After heating   0
Tensile Strength ≥3.5(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014



Construction:

Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion 3



Application:

TS630D-H is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.

Pressure Sensitive Thermal Release Tape 8N High Initial Adhesion 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good reputation and after-sales service team.

2. Good reputation and after-sales service team.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
