0.145mm Thermal Release Tape For Temporarily Fixing Process

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

0.145mm Thermal Release Tape For Temporarily Fixing Process

0.145mm Thermal Release Tape For Temporarily Fixing Process
0.145mm Thermal Release Tape For Temporarily Fixing Process 0.145mm Thermal Release Tape For Temporarily Fixing Process 0.145mm Thermal Release Tape For Temporarily Fixing Process 0.145mm Thermal Release Tape For Temporarily Fixing Process

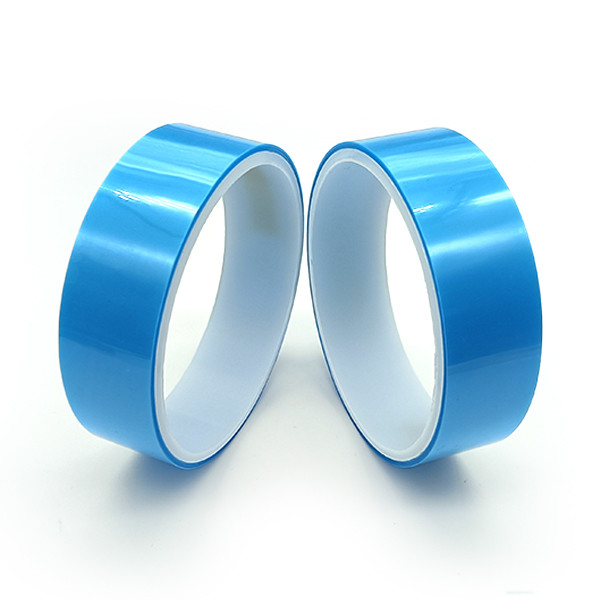

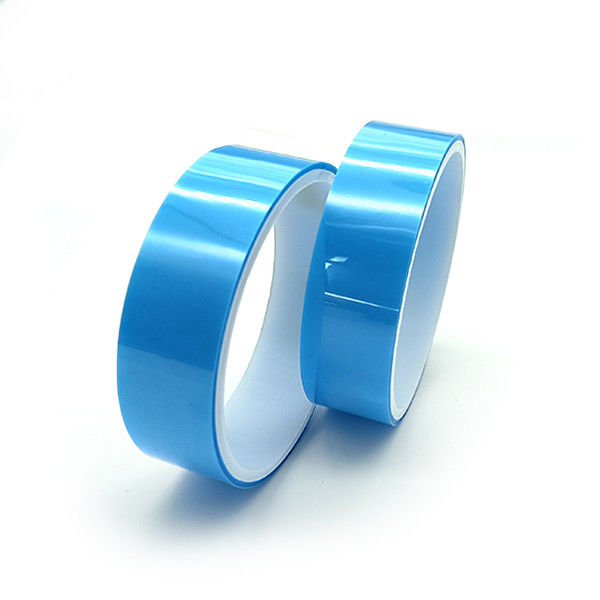

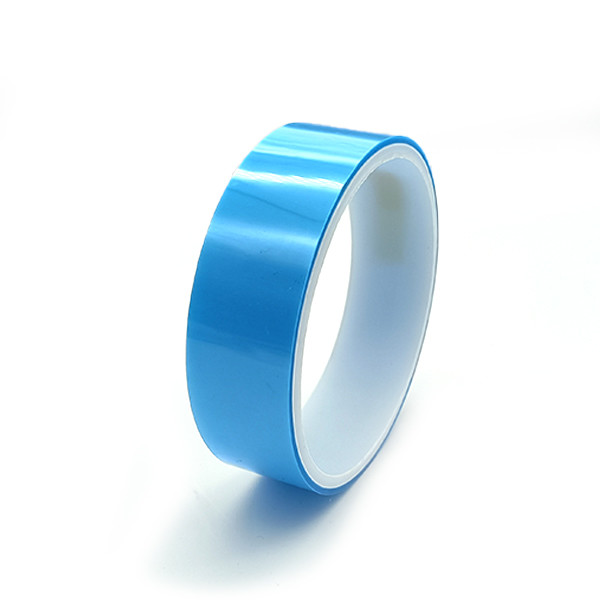

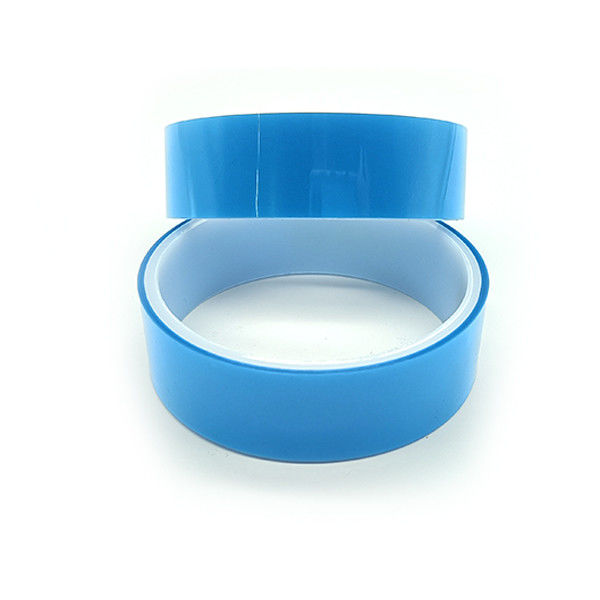

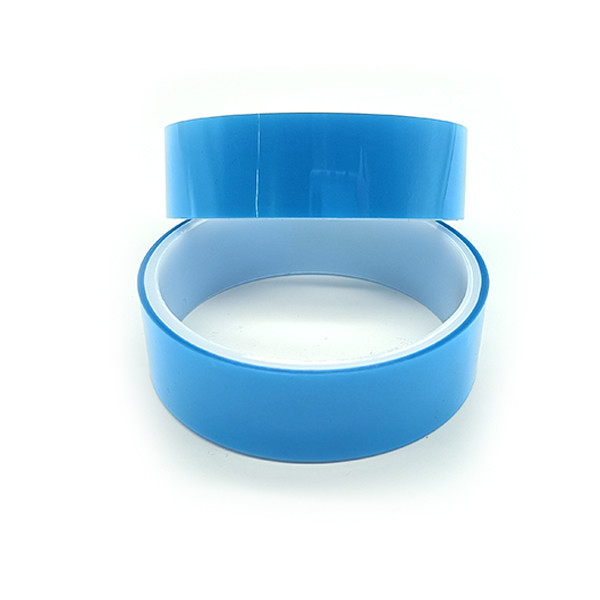

Large Image :  0.145mm Thermal Release Tape For Temporarily Fixing Process

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: TS630L
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

0.145mm Thermal Release Tape For Temporarily Fixing Process

Description
Product Name: TS630L Backing Thickness: 0.100 ±0.002 Mm
Total Tape Thickness: 0.145±0.005mm Adhesion To Steel: Before Heating: 0.5-1.5N/25mm; After Heating: 0 N/25mm (125-135℃ * 10mins)
Name: Thermal Release Tape
High Light:

0.145mm Thermal Release Tape

,

RoHS Thermal Release Tape

,

0.145mm thermal conductive tape

0.145mm Thermal Release Tape For Temporarily Fixing Process



Thermal release adhesive tape TS630L with lower initial adhesion for temporarily fixing process



TS630L is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature.



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Properties:

Item Typical Value Test Method
    Metric
Backing 0.075mm /
Total Thickness 0.145±0.005mm /
Tack ≥12(J.DOW/#)
Adhesion Before heating 0.5-1.5N/25mm



GBT 2792-2014

  After heating 0 N/25mm (125-135℃ * 10mins)
Tensile Strength ≥105(KN/M) GBT 30776-2014
Elongation ≥120% GBT 30776-2014



Construction:

0.145mm Thermal Release Tape For Temporarily Fixing Process 0



Application:

TS630L is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
