High Temperature Resistant Double Sided Electronic Tape 0.2mm

High Temperature Resistant Double Sided Electronic Tape 0.2mm
High Temperature Resistant Double Sided Electronic Tape 0.2mm High Temperature Resistant Double Sided Electronic Tape 0.2mm High Temperature Resistant Double Sided Electronic Tape 0.2mm High Temperature Resistant Double Sided Electronic Tape 0.2mm

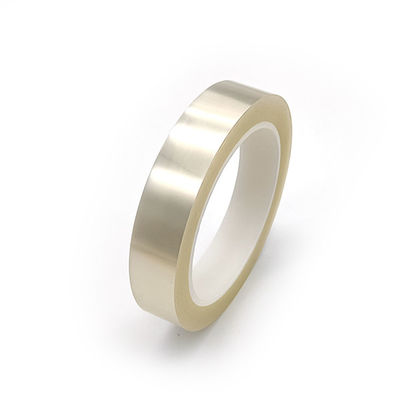

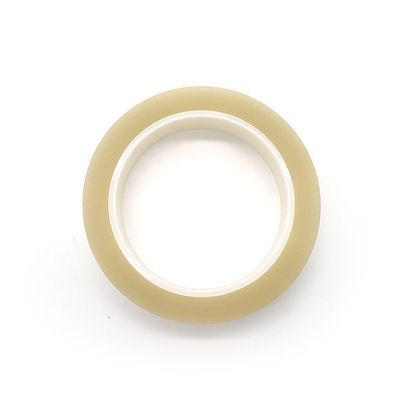

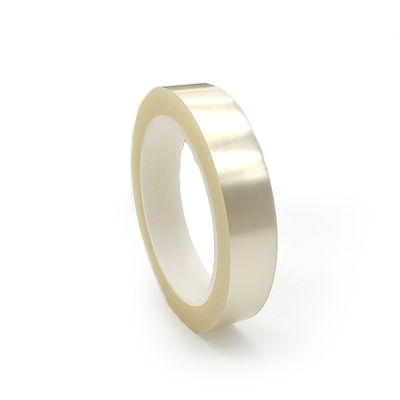

Large Image :  High Temperature Resistant Double Sided Electronic Tape 0.2mm

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KDL201
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

High Temperature Resistant Double Sided Electronic Tape 0.2mm

Description
Product Name: KDL201 Release Film Thickness: 0. 13±0.005 Mm
Total Tape Thickness: 0.20±0.005mm Temperature Resistance: 260℃
Adhesion To Steel: ≥7N/25mm Tensile Breaking Strength: ≥12 (KN/M)
High Light:

0.2mm Double Sided Electronic Tape

,

RoHS Double Sided Electronic Tape

,

0.2mm double sided electronics repair tape

High Temperature Resistant Double Sided Electronic Tape 0.2mm



Double-sided adhesive no substrate tape KDL201 for bonding different materials in electronic manufacturing



KDL201 is a high temperature resistant glass fiber cloth base material tape, high tensile strength, not easy to break, strong adhesive strength, good temperature resistance.



Features And Benefits:

1. Excellent bonding properties.

2. Maintain viscosity under high temperature.

3. High temperature resistance.



Application:

It is mainly used for H class heat-resistant insulation bundling, high temperature sandblasting protection, lithium manganese battery insulation packing and other high strength insulation protection.



Properties:

Item Double Sided Electronic Tape Typical Value Test Method
    Metric
Backing Thickness 0.13±0.005 mm /
Total Tape Thickness 0.20±0.005mm /
Temperature Resistance 260℃ /
Adhesion to Steel 7N/25mm GBT 2792-2014
Tensile Breaking strength ≥12 (KN/M) GBT 30776-2014
Elongation at break ≥5% GBT 30776-2014



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
