| Product Name: | SMS4001C-T | Material: | PET |
|---|---|---|---|
| Package: | 3000pcs/roll | Size: | 50mmx7mm |
| Static Voltage: | <100V | Core ID: | 38mm |
| Highlight: | ESD Sealing Label,PET ESD Sealing Label,PET SMT Carrier Tape |
||
Multiple product types:
1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;
Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

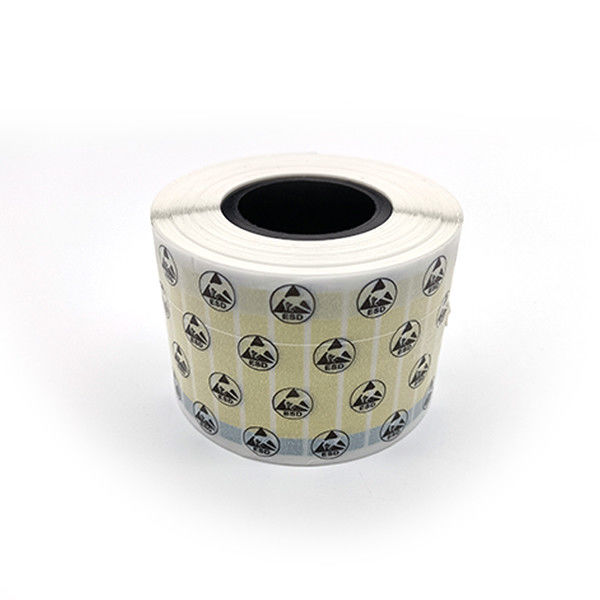

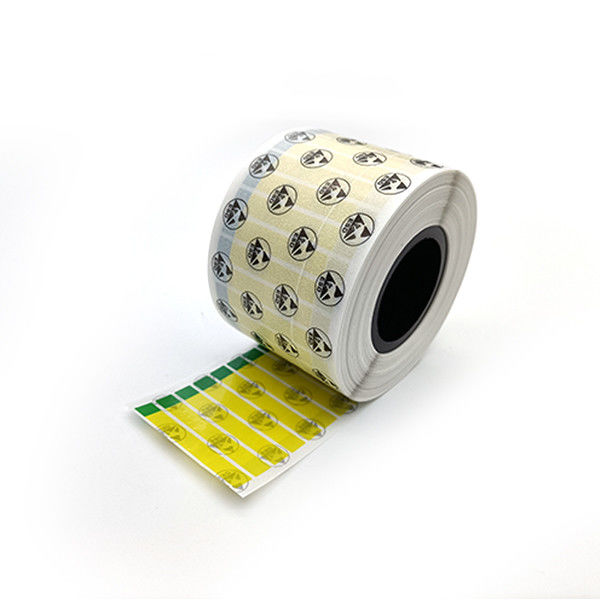

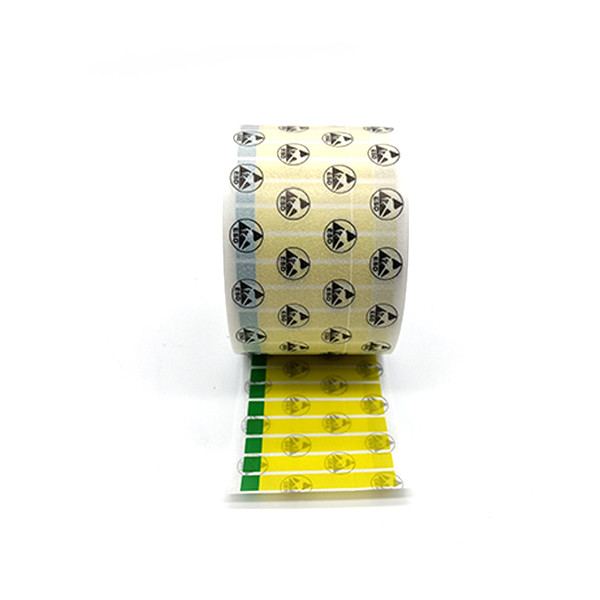

SMT Carrier Tape Reel Packaging ESD Sealing Label PET Material
ESD end sealer label SMS4001C-T used for sealing the new SMT carrier tape reel packaging

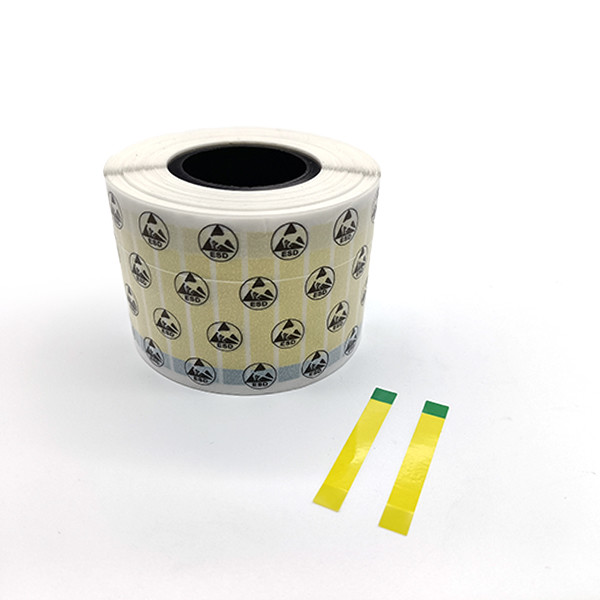

This Label is made of 3 parts(Yellow adhesive tape+ Yellow non-adhesive tape+Green non-adhesive tape),it is used for fixing and sealing the end of SMT carrier tape reels or other materials reels.
Features And Benefits:
1. ESD with no damage to electronics components；
2. Two end with no adhesive,easy to peel and pull；
3.The green non-adhesive area is a clear mark which can be identified effectively to peel off this label from reels at correct direction to avoid peel the cover tape off.
Application:
1.Used for sealing the new SMT carrier tape reel packaging；
2.Used for fixing the end of SMT carrier tape reel to avoid loosing when storing the used SMT carrier tape reels.
Properties:
| Part No. | Size | Package | Surface Resistance | Static Voltage | Core ID |
| SMS4001C - T | 50×7mm | 3000pcs/roll | 105-10 Ω | ＜100V | 38mm |
Structure:
How to use:
1. Sticking : Hold the yellow non-adhesive area,stick half part of label on the end of carrier tape
and then fix on the whole reel.
2. Peeling : Peel off the label at the green transparent non-adhesive area from the reel.
