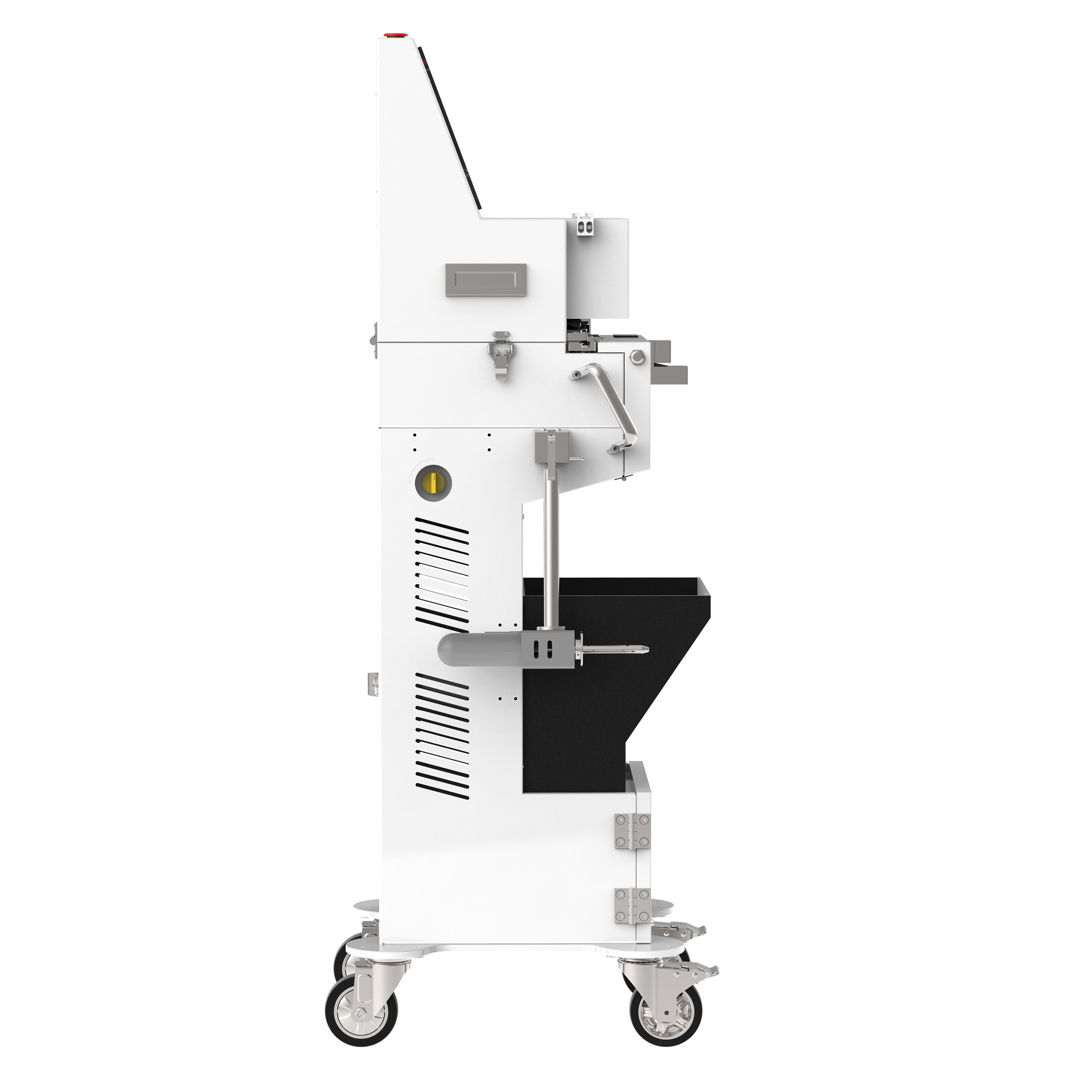

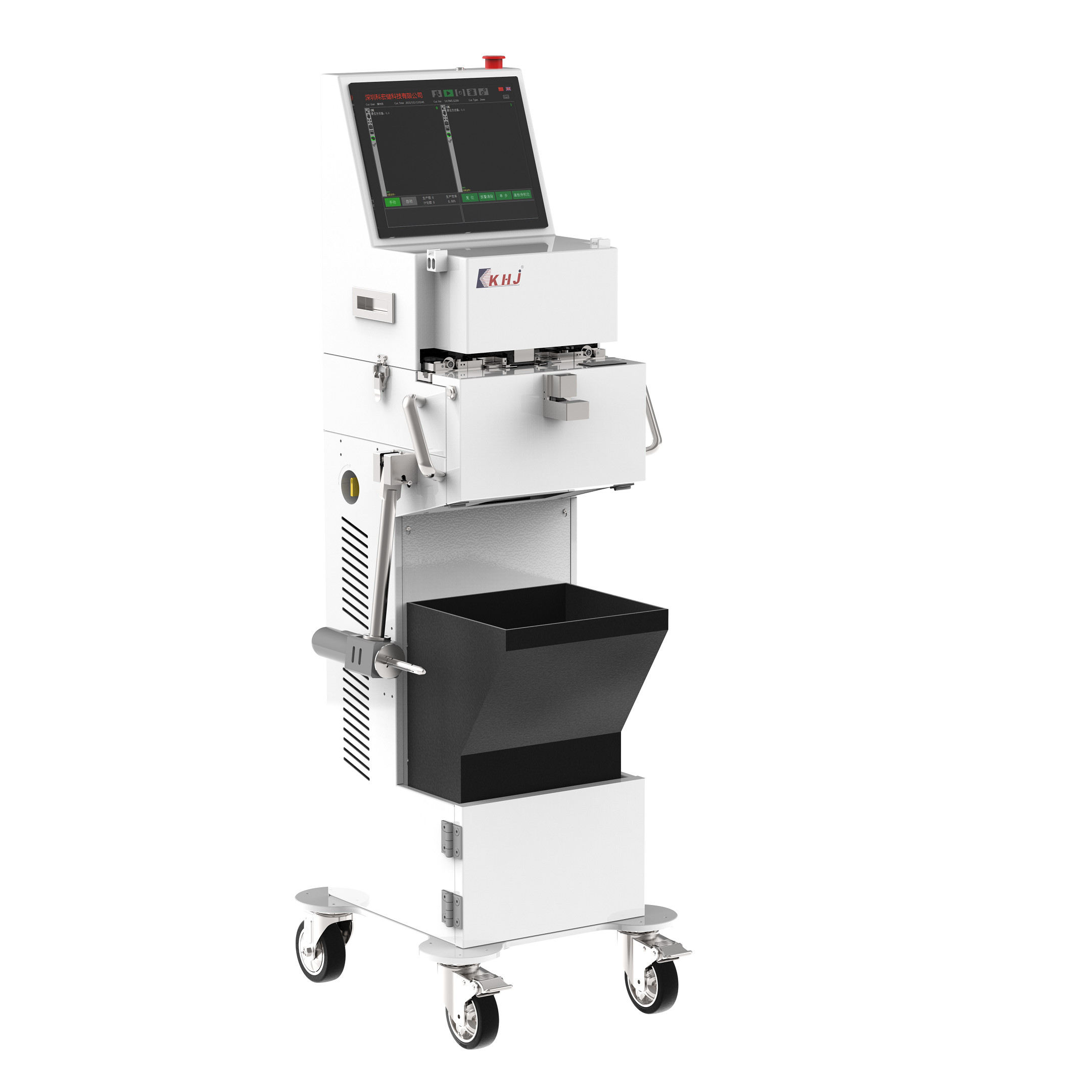

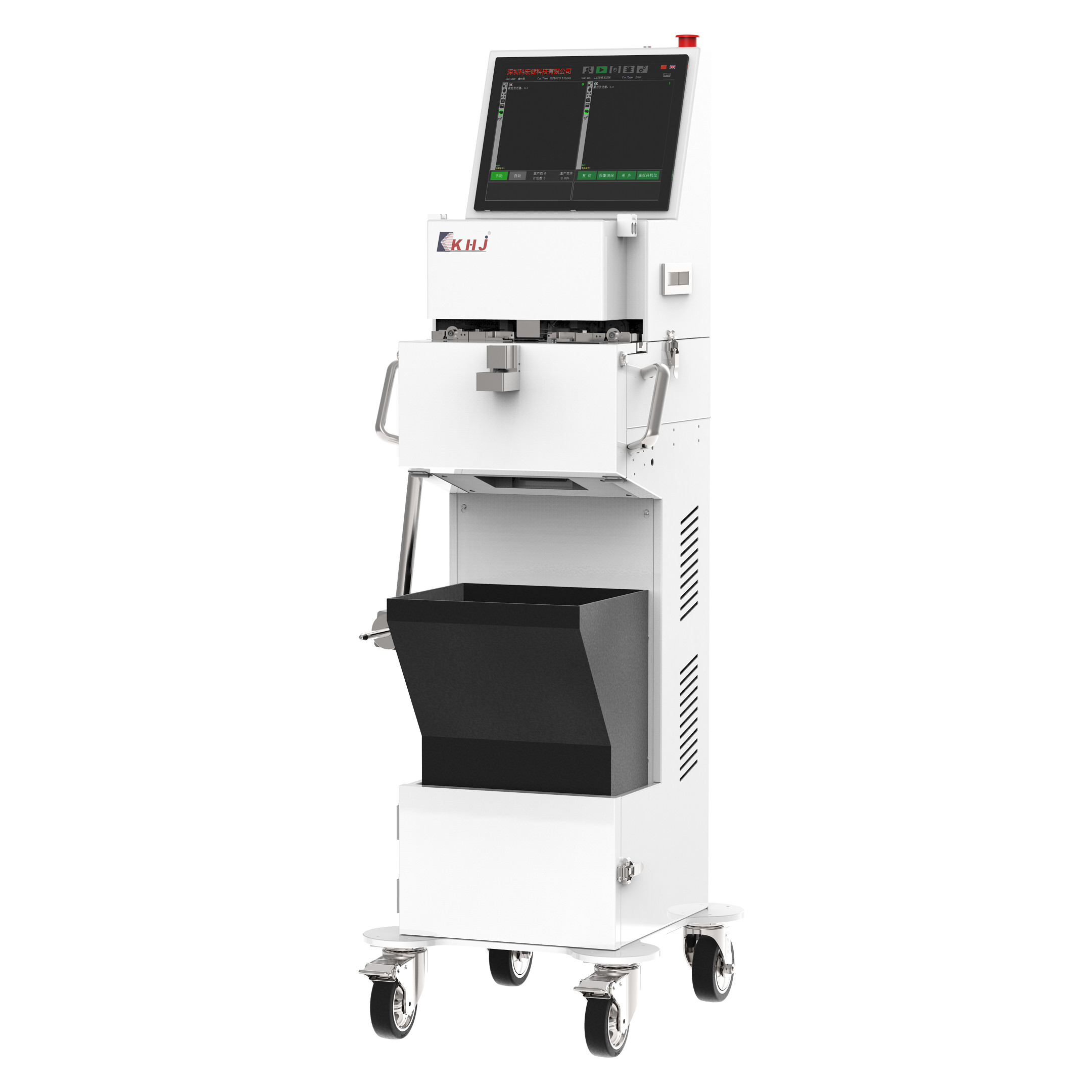

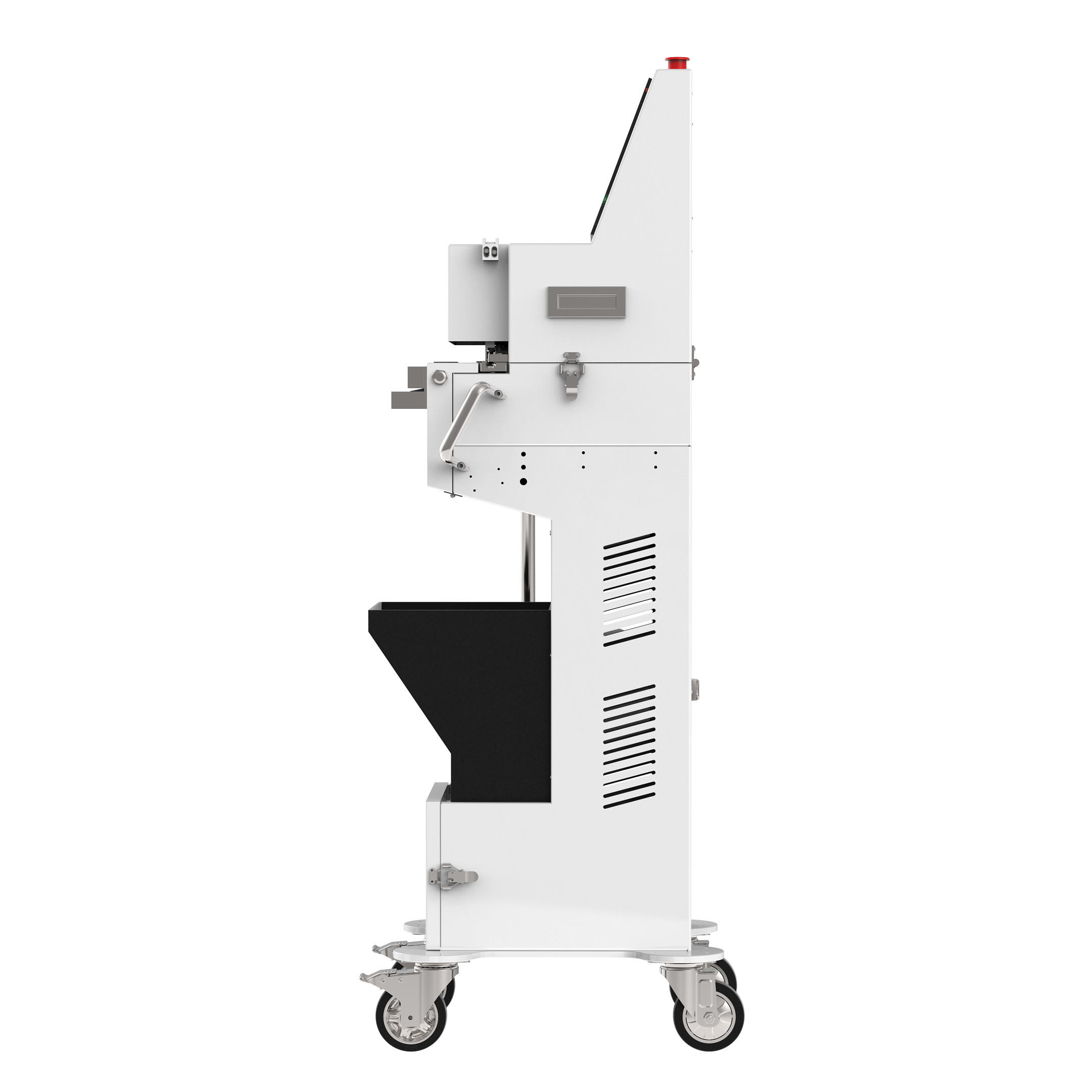

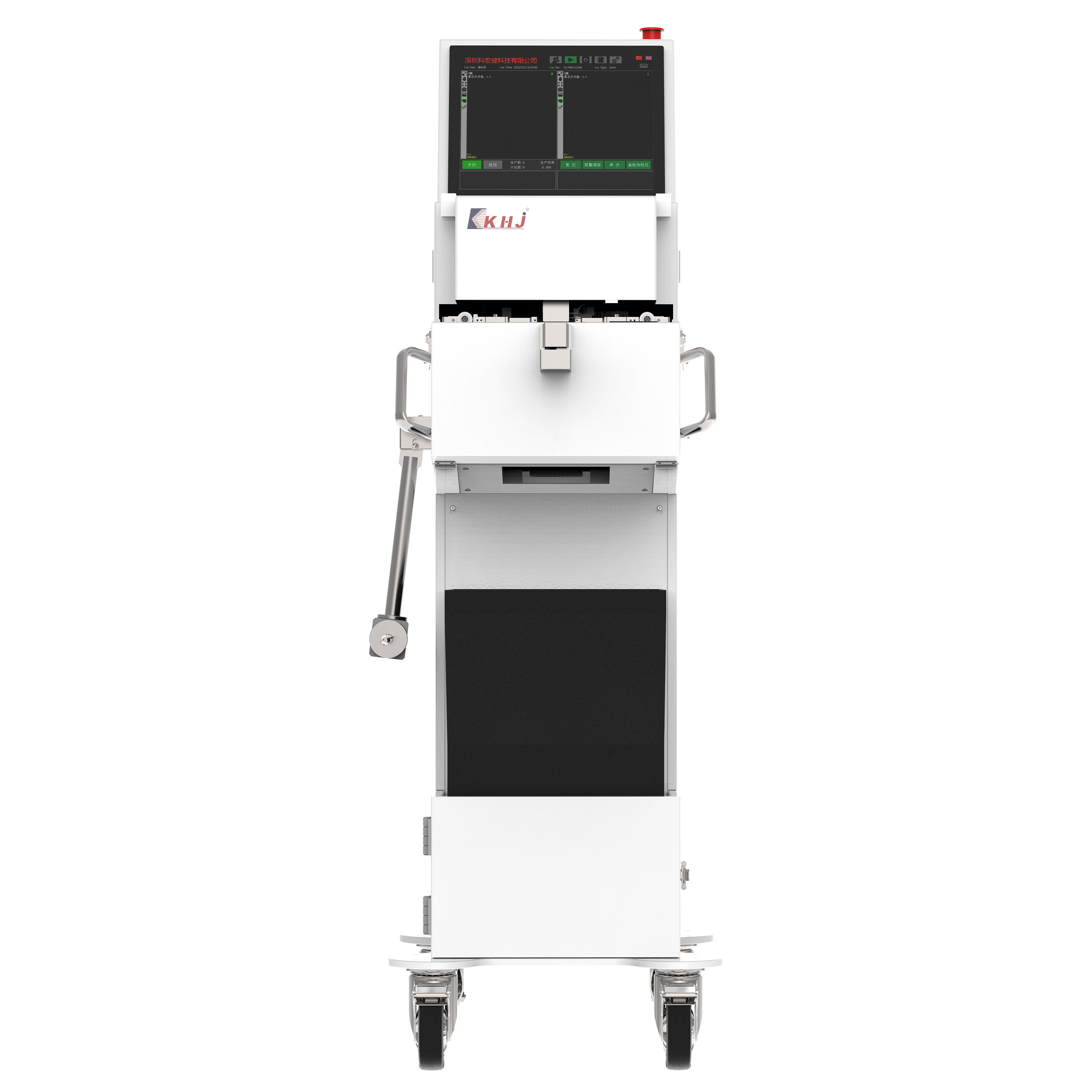

Visual Recognition System Automatic Splicing Machine SMT 48V

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: KA100P

Payment & Shipping Terms

Minimum Order Quantity: One set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price
Contact Now
Specifications
High Light:

48V Automatic Splicing Machine

,

tape SMT Automatic Splicing Machine

,

48V tape splicing machine

Product Name:
KA100P
Control Mode:
Automatic Reset Button
Winding Device:
One Set(left Side)
Carrier Tape Reel:
7inches、13inches、15inches
Battery Capacity:
22Ah
Battery Voltage:
48V
Charging Voltage:
110V - 220V
Charge Time:
8H
Product Name:
KA100P
Control Mode:
Automatic Reset Button
Winding Device:
One Set(left Side)
Carrier Tape Reel:
7inches、13inches、15inches
Battery Capacity:
22Ah
Battery Voltage:
48V
Charging Voltage:
110V - 220V
Charge Time:
8H
Description
Visual Recognition System Automatic Splicing Machine SMT 48V

khjkhj emailkhj workshop

Visual Recognition System Automatic Splicing Machine SMT 48V



KA100P SMT Intelligent Splicing Machine with visual recognition system



KHJ KA100P automatic splicing machine and enterprise's MES system can achieve perfect connection, the function of automatic error prevention and real-time monitoring can avoid a large number of sunk costs caused by manual operation errors.



The equipment is easy in operation, efficient in splicing, stable and reliable in running.With the development of intelligent automation in SMT factories. It is the inevitable trend to realize the automation production by using auto SMT Splicing machine. Started from 1999, KHJ Technology was devoted to the research and innovation of SMT Splicing machine, and focus on solving the SMT manufacturing difficulties in cooperation with global customers.



CORE ADVANTAGES

1AUTOMATIC SPLICING:Apply to all types carrier tapes of 8mm.

2. HIGH FPY:FPY ≥99.3%.

3. LOW NOISE:Unique design of non-vacuum splicing to avoid heavy noise.

4. HIGH SPEED:Enhance the splicing speed and FPY greatly.

5. INTELLIGENT:Equipped with visual recognition system, automatic detection of empty pocket and pitch.

6. RELIABLE SPLICING:Working with hot-melt splice tape to enhance the splicing strength greatlyno loosing or broken during carrier tape moving in feeder.

7. MATERIAL ERRORS RECOGNITION:Intelligent validation system incorporated to prevent material errors,can dock with ERP,MES system to achieve safe production.

8. EASY OPERATION:Easy to use,new operator can lean to use under 3 minutes,reduced the reliance on skilled operators and staff training.



PRODUCT SPECIFICATIONS

Visual Recognition System Automatic Splicing Machine SMT 48V 3



PRODUCT PARAMETER

Apperance Dimension (mm) 469(L) x 416(W) x 1346(H)mm Power Supply System Battery Capacity 22Ah
Weight 70kg Battery voltage 48V
Conveyor Conveyor Height 930±10mm Charging Voltage 110V - 220V
Width 8mm Charge time 8H
Carrier Tape Width & Material 8mm(paper /plastic) Full Charge Working Time 12 - 16H
Pitch 2/4mm Splicing efficiency Splicing Time (c/t) 12-15sec (not including loading time)
Minimum Splicing Length 120mm
Splicing Tape Length of Splicing Tape 32mm Winding Speed 300rpm
Equipment accuracy Carrier Tape Feeding accuracy ±0.10mm FPY Empty Componment Spliced 0 - 2PCS

































Equipment accuracy Misalignment accuracy ±0.15mm Options and Accessories Pre cutting Automatic pre-cutting
Rewinding function Control Mode Automatic reset button Dock with MES System Available as Option
Winding Device One set (left side) Barcode Gun Available as Option
Carrier tape Reel 7inches,13inches,15inches Automatic copper pressing device Available as Option
Control System VCU PLC+PPC Right receiving arm Available as Option
Detection function of empty componment Visual inspection (inspection of empty componment 01005 and above )

































With the higher production requirement on SMT splicing production line and more smaller mounting components, which request latest technology to ensure the stable&reliable splicing and anti-electrostatic safety.
