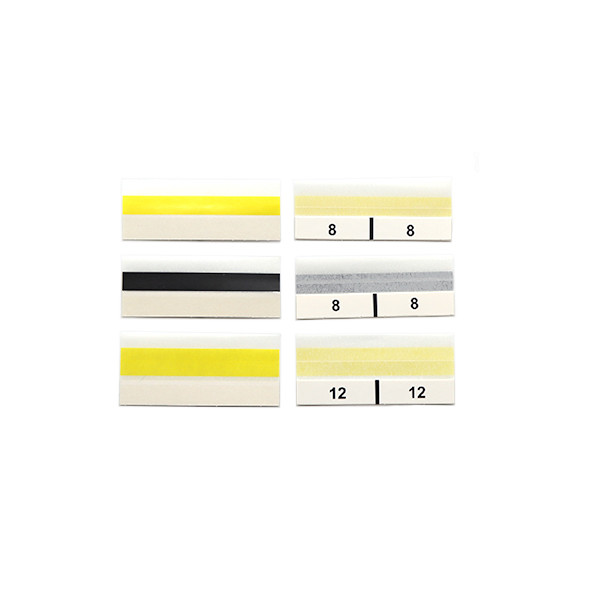

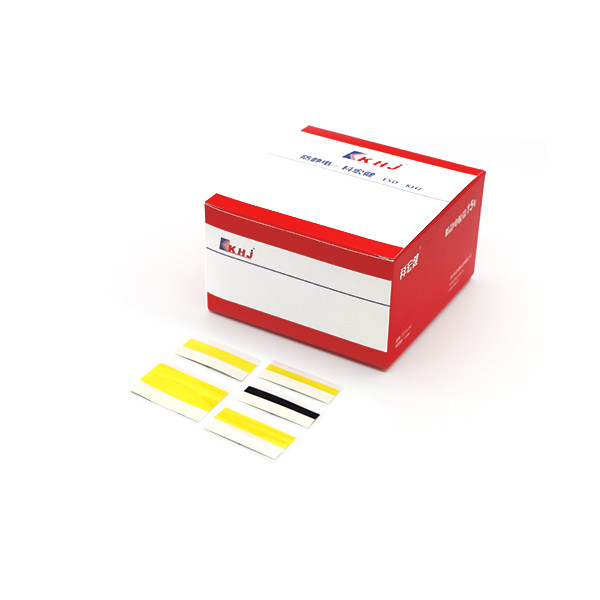

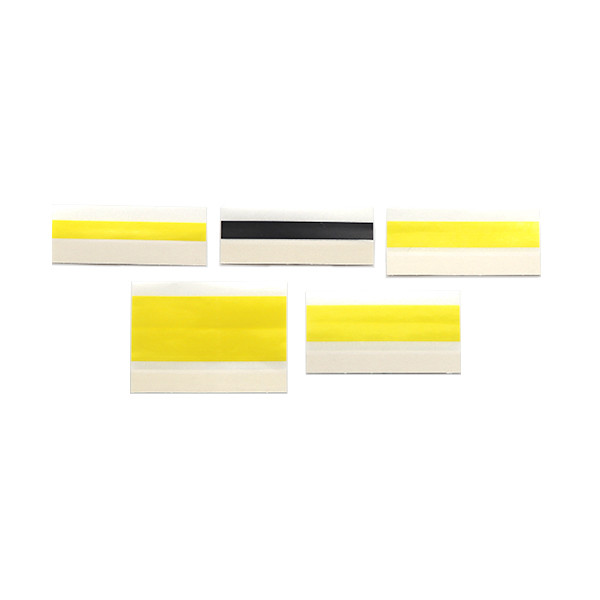

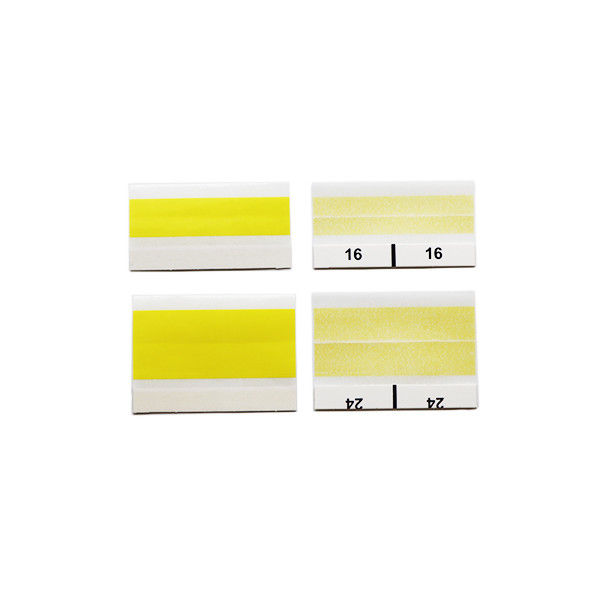

RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing

RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing
RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing

Large Image :  RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: SMS17 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

RoHS Alignment Guide SMT Single Splice Tape For Carrier Tape Jointing

Description
Product Name: SMS17 Series Material: PET
Adhesive: Acrylic Size: 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Color: Yellow, Black, Blue, Green, Pink, Etc Are Available Certification: RoHS
High Light:

Alignment Guide SMT Single Splice Tape

,

RoHS SMT Single Splice Tape

,

Carrier Tape Jointing SMT Splice Tape

17 Series Single SMT Splice Tape Alignment Guide For Carrier Tape Jointing



Universal SMT single splice tape with alignment guide designed applicable for all kinds of carrier tape jointing



17 series splice tape is used for jointing carrier tapes in the SMT process, It is with alignment guide designed for easy alignment, can be used with positioning fixture for more accurate and reliable jointing .



Features And Benefits:

1. Guide alignment design, No removable PET. Used with splice clips for more reliable jointing.

2. Available for 8mm,12mm,16mm,24mm, ,32mm,44mm,56mm,72mm carrier tapes.

3. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.

4. Available for all smt machines except sensitive machine.



Application:

Applicable for all kinds of carrier tape jointing . Various machine applicableg.



Properties:

Part No Size For Carrier Tape Package Qty
SMS1708C 4.8x40mm 8mm 1000pcs/box
SMS1712C 7x40mm 12mm 1000pcs/box
SMS1716C 9.6x40mm 16mm 1000pcs/box
SMS1724C 17x40mm 24mm 1000pcs/box
SMS1732C 25x40mm 32mm 500pcs/box
SMS1744C 30x40mm 44mm 500pcs/box



Structure:

                                   17 Series Single SMT Splice Tape Alignment Guide For Carrier Tape Jointing 0

Technical Data:

No Item Technical Parameter
1 Peeling-off force (N/25mm) by angle of 180 degree ≥15
2 Retaining (H/25*25mm) time >100
3 Tensile strength at break (N/25mm >4.0



Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
