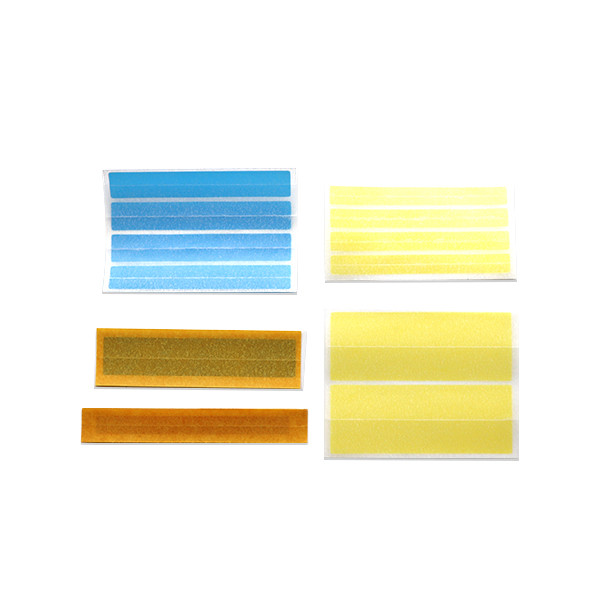

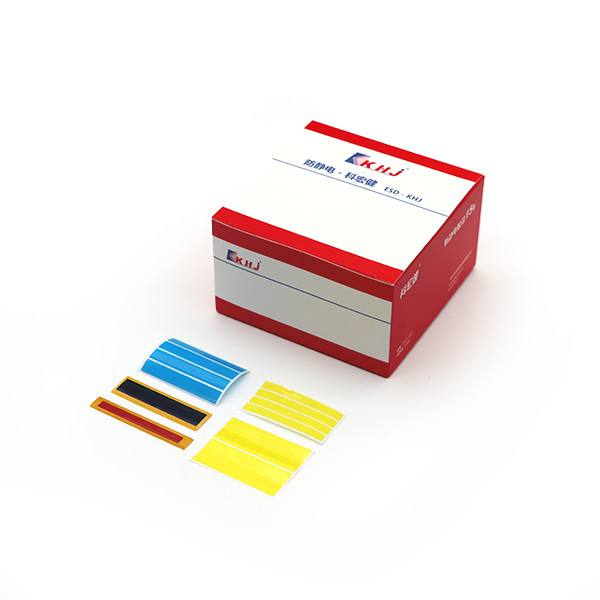

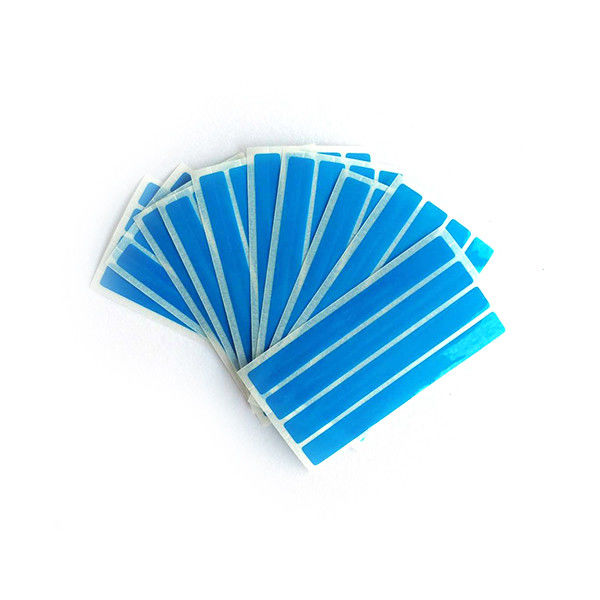

Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion

Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion
Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion

Large Image :  Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: ROHS
Model Number: SMS03 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Bag
Price: Negotiable
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000㎡/day

Acrylic Carrier Siemens SMT Splice Tape With Superior Adhesion

Description
Product Name: SMS03 Series Material: PET
Adhesive: Acrylic Size: 8mm,12mm,16mm,24mm Etc
Color: Yellow, Black, Blue, Green, Etc Are Available Peeling-off Force: (N/25mm) By Angle Of 180 Degree≥15
High Light:

Acrylic Carrier SMT Splice Tape

,

Siemens SMT Splice Tape

,

Acrylic Carrier SMT Splicing Tape

Acrylic Carrier SMT Splice Tape



Yellow, Black, Blue, Green Siemens SMT single splice tape used for various sizes of carrier tape



Features And Benefits:

1. Used for jointing carrier tapes in the SMT process,Especially used for Siemens machines. It is made of ESD glossy black adhesive tape and yellow release paper without logo,and the tape is made by our produced patent material with superior adhesion.

2. Can be used with splice clips reliable jointing.

3. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.

4. Available for all SMT machines except sensitive machine.

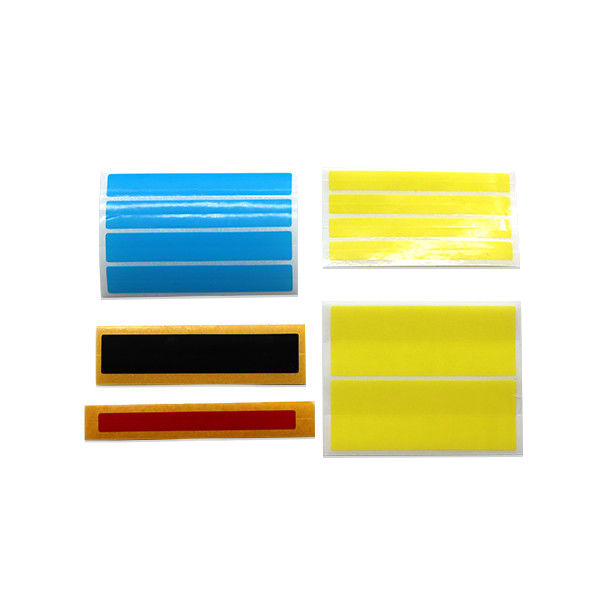

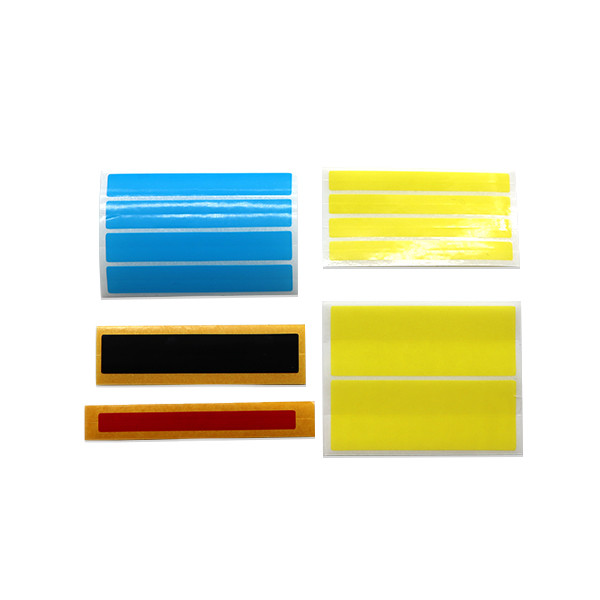

5. Yellow, Black, Blue, Green, Pink, Red, etc colors are available.

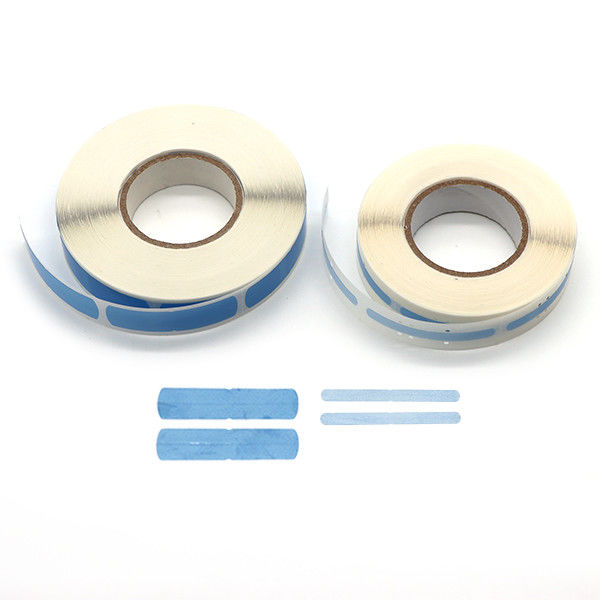

6. Sheet or roll are available.



Application:

03series single splice tape is used for jointing carrier tapes in the SMT process,Especially used for Siemens machines.



Properties:

P/N Description of Goods Quantity Application
SMS-0308 SMT Single Splice Tape 8mm 4pcs/card Yellow Tape: 4.8 * 45mm * 2 4000pcs/box For 8mm carrier tape
SMS-0312 SMT Single Splice Tape 12mm 4pcs/card Yellow Tape: 6 * 45mm * 2 4000pcs /box For 12mm carrier tape
SMS-0316 SMT Single Splice Tape 16mm 4pcs/card Yellow Tape: 9.5 * 45mm * 2 4000pcs /box For 16mm carrier tape
SMS-0324 SMT Single Splice Tape 24mm 2pcs/card Yellow Tape: 15 * 45mm * 2 2000pcs /box For 24mm carrier tape



Structure:

                                              Acrylic Carrier SMT Splice Tape 0

How to use

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.



Storage Condition:
Temperature: 20℃-30℃
Ralative Humidity(RH): 45%-65%
Shelf-life: One year



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
