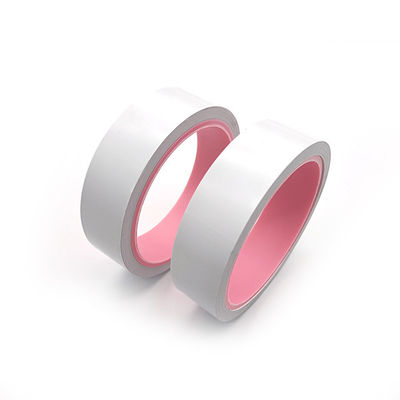

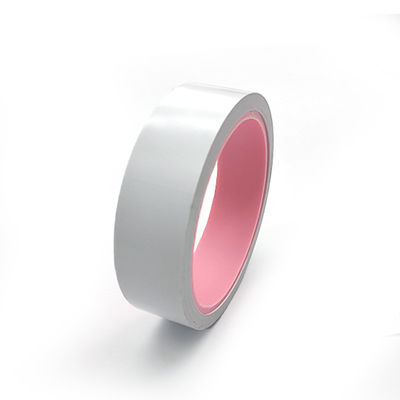

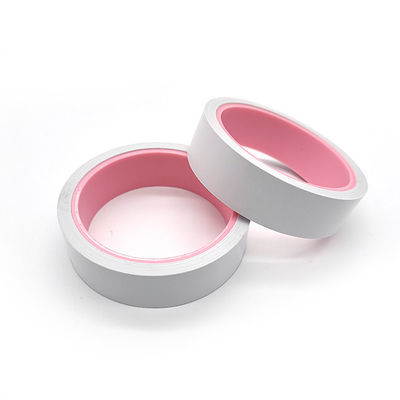

Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM

Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM

Brand Name: KHJ
Model Number: E2-IC268A
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
E2-IC268A
Static Discharge (Removal From Roll):
<100V
Unwind Force:
>0.4N/25mm
Total Tape Thickness:
0.085±005mm
Adhesion To Steel:
>0.5N/25mm
Backing Thickness:
0.070mm
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

ODM Adhesive Tape Roll

,

OEM ODM Adhesive Tape Roll

,

ODM Acrylic Adhesive Tape

Product Description

Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM 0Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM 1Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM 2

Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM



Anti-static PP film backed acrylic adhesive tape roll E2-IC268A with silicone free



E2-IC268A is an anti-static PP film backed acrylic adhesive tape roll, it is specially used for cleaning various surface dust.



Features And Benefits

1. No need to cut by blade.

2. No glue residue.

3. Low electrostatic discharge at unwinding.

4. Silicone free.



Properties:

Item Typical Value Test Method
Backing 0.070mm /
Total Thickness 0.085±0.005mm /
Tack 6# GBT4852-2002
Adhesion to Steel >0.5N/25mm GB/T 2792-2014
Unwind Force >0.4N/25mm GB/T 2792-2014
Surface Resistance 10 6-10 ohms ANSI STM4.1-2017
Adhesion Resistance 10 7-11 ohms ANSI STM4.1-2017
Static Discharge (Removal from roll) <100V



/



Construction:

Anti Static PP Film Backed Acrylic Adhesive Tape Roll Silicone Free OEM ODM 3



Application:

It is widely used in PCB automatic clean machine to remove PCB surface particle before next processes. This rolls is also necessary for PCT, LCD, LED, electronics and other industry’s surface clean.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Environmentally friendly products.

2. Accept small orders.



What are our advantages?

1. Provide samples and best service.

2. Good production capacity and fast delivery.

3. SGS certification.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
