Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-IC168
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E2-IC168 |
Total Tape Thickness: |
0.090±005mm |
Backing Thickness: |
0.070mm |
Adhesion To Steel: |
200-300gf/25mm |
Static Discharge (Removal From Roll): |
<100V |
Upmost Temperature: |
106-10ohms |
Product Name: |
E2-IC168 |
Total Tape Thickness: |
0.090±005mm |
Backing Thickness: |
0.070mm |
Adhesion To Steel: |
200-300gf/25mm |
Static Discharge (Removal From Roll): |
<100V |
Upmost Temperature: |
106-10ohms |

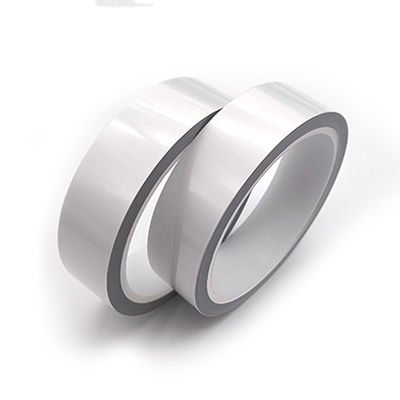

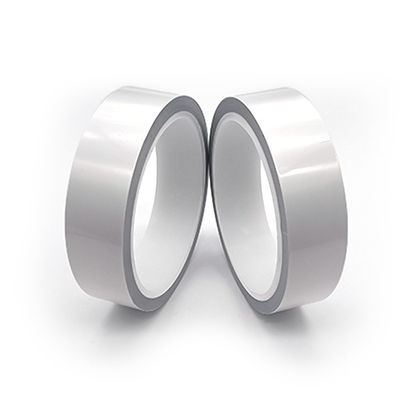

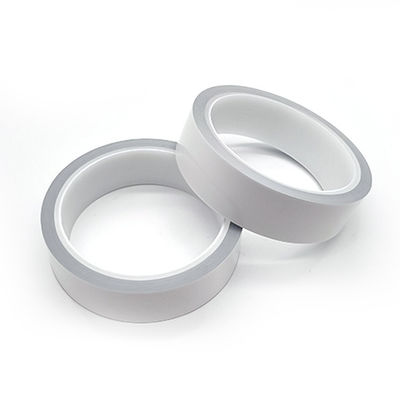

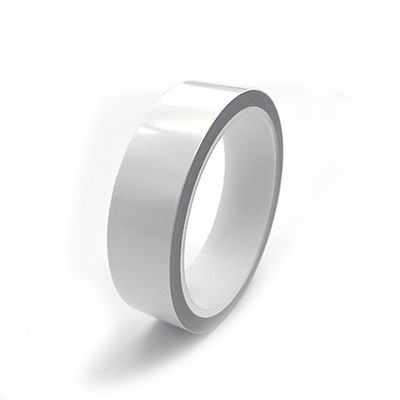

E2-IC168 is a anti-static PP film backed acrylic adhesive tape roll, it is specially used for cleaning various surface dust.
Features And Benefits:
1. No need to cut by blade, easy to tear off.
2. No glue residue.
3. Low electrostatic discharge at unwinding.
4. Silicone free.
Adhesive Tape Roll E2-IC168 Properties:
| Item | Typical Value | Test Method |
| Backing | 0.070mm | / |
| Total Thickness | 0.090±0.005mm | / |
| Adhesion to Steel | 200-300gf/25mm | GB/T 2792-2014 |
| Surface Resistance | 106-10ohms | GB/T33375-2016 |
| Static Discharge (Removal from roll) | <100V | / |
Construction:
Application:
It is widely used in PCB automatic clean machine to remove PCB surface particle before next processes. This rolls is also necessary for PCT, LCD, LED, electronics and other industry’s surface clean.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Various designs.
3. Accept small orders.
Why choose us?
1. Professional tape manufacturer for nearly 20 years.
2. Provide samples and best service.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
