Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: IC161E
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
IC161E |
Total Thickness: |
0.085±0.005mm |
Backing Thickness: |
0.075mm |
Adhesion To Steel: |
4.5～5.5N/25mm |
Tensile Strength: |
≥3.5（KN/M） |
Elongation: |
≥45% |
Product Name: |
IC161E |
Total Thickness: |
0.085±0.005mm |
Backing Thickness: |
0.075mm |
Adhesion To Steel: |
4.5～5.5N/25mm |
Tensile Strength: |
≥3.5（KN/M） |
Elongation: |
≥45% |

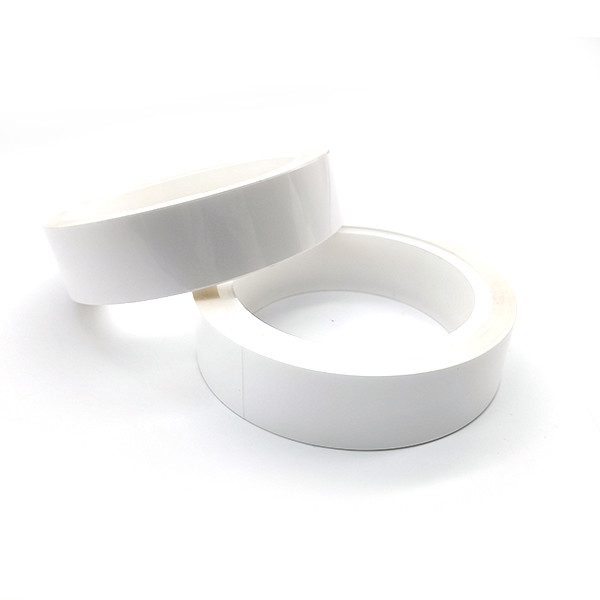

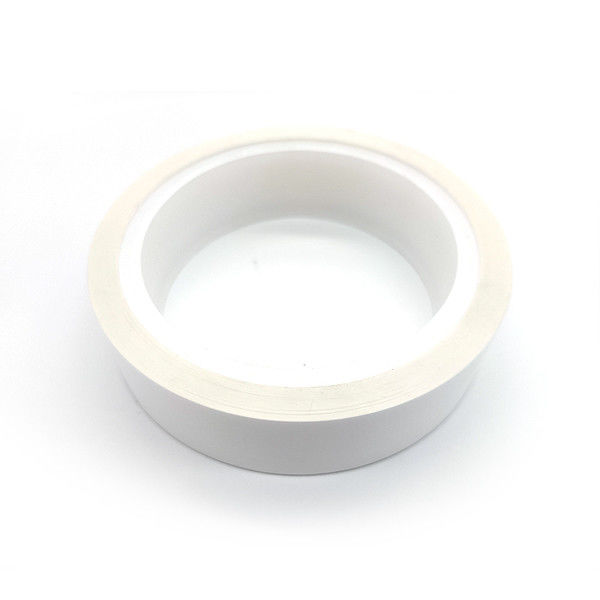

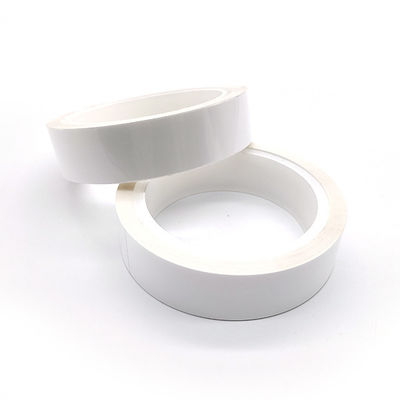

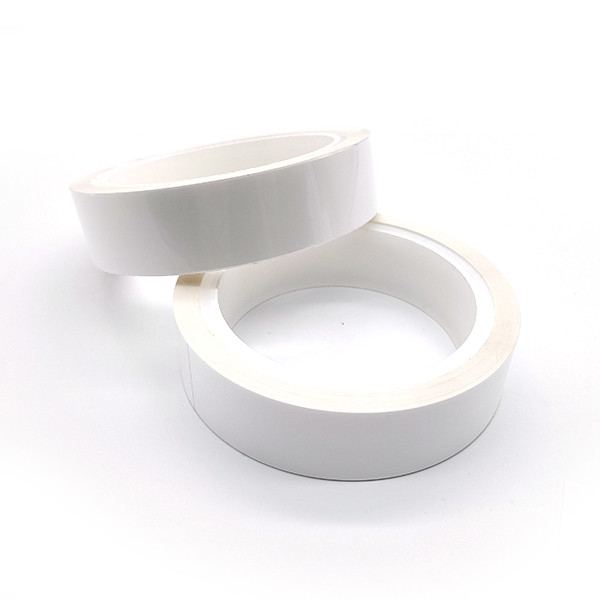

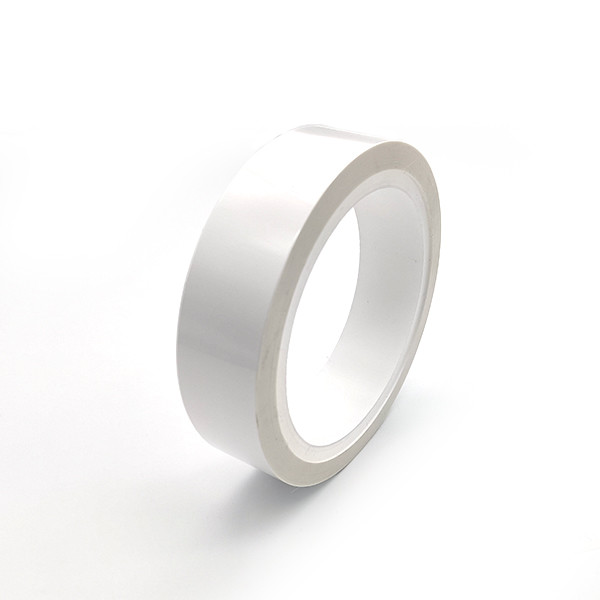

3.4mil Thickness PP Film Adhesive Tape Roll For Electronics Clean
Excellent PCB cleaning sticky roll IC161E cutter line design easy to tear off
IC161E is a PP film backed acrylic adhesive tape roll, it is specially used for cleaning various surface dust.
Features And Benefits:
1. No need to cut by blade, easy to tear off.
2. No glue residue.
3. Strong adhesion.
Properties:
| Item | Typical Value | Test Method | |
| Imperial | Metric | ||
| Backing | 3.0mil | 0.075mm | / |
| Total Thickness | 3.4mil | 0.085±0.005mm | / |
| Tack | / | ≥26(J.DOW/#) | / |
| Adhesion to Steel | 1.2～1.3lbs/in | 4.5～5.5N/25mm | GBT 2792-2014 |
| Tensile Strength | ≥20lbs/in | ≥3.5(KN/M) | GBT 30776-2014 |
| Elongation | ≥45% | ≥45% | GBT 30776-2014 |
Construction:
Application:
It is widely used in PCB automatic clean machine to remove PCB surface particle before next processes. This rolls is also necessary for PCT, LCD, LED, electronics and other industry’s surface clean.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. SGS certification.
2. Good reputation and after-sales service team.
What are our advantages?
1. Provide samples and best service.
2. Good production capacity and fast delivery.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
