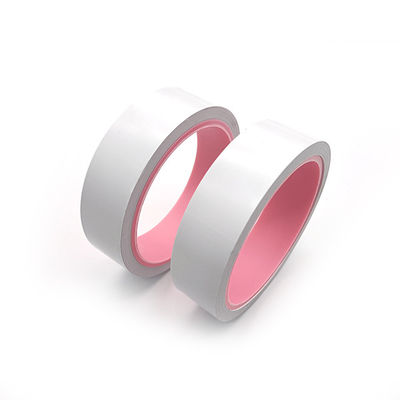

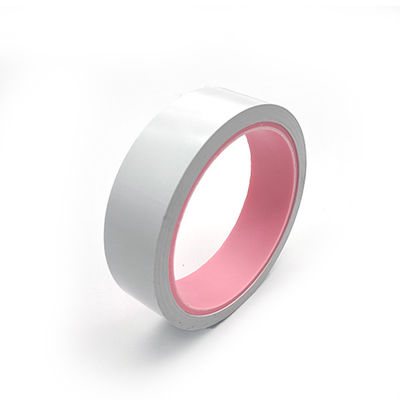

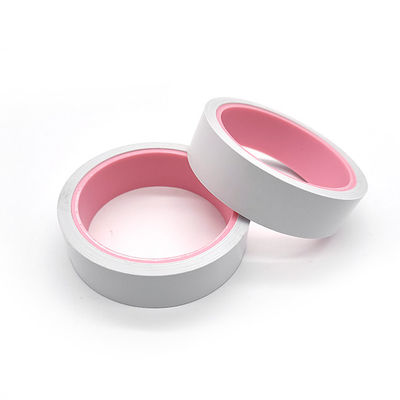

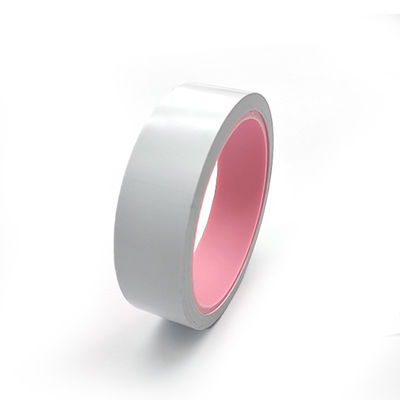

PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge

PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge
PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge

Large Image :  PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-IC268A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge

Description
Product Name: E2-IC268A Total Tape Thickness: 0.085±005mm
Backing Thickness: 0.070mm Unwind Force: >0.4N/25mm
Adhesion To Steel: >0.5N/25mm Static Discharge (Removal From Roll): <100V
High Light:

ODM OEM Adhesive Tape Roll

,

100V Adhesive Tape Roll

,

0.085mm Anti Static Adhesive Tape

PP Film Anti Static Adhesive Tape Roll 0.085mm Low Electrostatic Discharge



Anti -static PP film sticky roll E2-IC268A tape excellent PCB cleaning roll



E2-IC268A is an anti-static PP film backed acrylic adhesive tape roll, it is specially used for cleaning various surface dust.



Features And Benefits

1. No need to cut by blade.

2. No glue residue.

3. Low electrostatic discharge at unwinding.

4. Silicone free.



Properties:

Item Typical Value Test Method
Backing 0.070mm /
Total Thickness 0.085±0.005mm /
Tack 6# GBT4852-2002
Adhesion to Steel >0.5N/25mm GB/T 2792-2014
Unwind Force >0.4N/25mm GB/T 2792-2014
Surface Resistance 10 6-10 ohms ANSI STM4.1-2017
Adhesion Resistance 10 7-11 ohms ANSI STM4.1-2017
Static Discharge (Removal from roll) <100V



/



Construction:

PP Film Anti Static Adhesive Tape Roll 0.085mm Low electrostatic discharge 0



Application:

It is widely used in PCB automatic clean machine to remove PCB surface particle before next processes. This rolls is also necessary for PCT, LCD, LED, electronics and other industry’s surface clean.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Provide samples and best service.

2. Good production capacity and fast delivery.



Why buy from us instead of buying from other suppliers?

1. Good reputation and after-sales service team.

2. Good location and convenient transportation.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
